Fig. 63 Electrical Rod Support Clamp
- SKU:
- Fig. 63
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

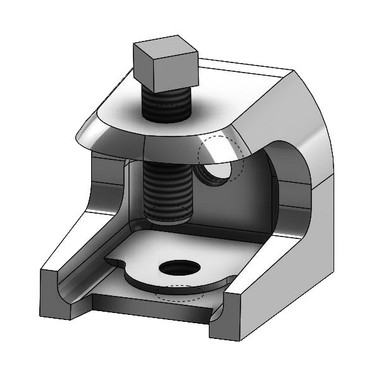

Fig. 63 Electrical Rod Support Clamp
Empire Fig. 63 Electrical Rod Support Clamp is designed to attach hanger rod to a beam or framework where the thickness does not exceed 1/2".
The clamp features a rod tap on both the front and back and is available in electro-galvanized ductile iron and T-316 stainless steel configurations.
Product Highlights
- Designed to attach hanger rod to a beam or framework
- For framework or beam thickness not exceeding 1/2"
- Rod tap on both the front and back of the clamp
- Electro-galvanized ductile iron configuration: Fig. 63G
- T-316 stainless steel configuration: Fig. 63SX
- Available rod sizes from 1/4"-20 through 1/2"-13
- Maximum recommended loads from 335 to 750 lbs., depending on rod size
Rod Size & Load Data
| Rod Size | Set Screw | Weight Each | Max. Recommended Load |
|---|---|---|---|
| 1/4"-20 | 5/16"-18 | 0.260 lbs. | 335 lbs. |
| 5/16"-18* | 5/16"-18 | 0.250 lbs. | 335 lbs. |
| 3/8"-16 | 1/2"-13 | 0.700 lbs. | 525 lbs. |
| 1/2"-13 | 1/2"-13 | 1.260 lbs. | 750 lbs. |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 63 |
| Product Type | Electrical Rod Support Clamp |
| Primary Function | Attach Hanger Rod to Beam or Framework |
| Maximum Beam / Framework Thickness | 1/2" |
| Rod Tap | Front and Back of Clamp |
| 63G Material / Finish | Electro-Galvanized Ductile Iron |
| 63SX Material | T-316 Stainless Steel |
| T-316 Stainless Steel Rod Sizes | 1/4", 3/8" and 1/2" |
| Ordering | Specify Figure Number, Finish and Rod Size |
Beam & Framework Attachment
The Fig. 63 is designed for hanger rod attachment to a beam or framework where the material thickness does not exceed 1/2".
Rod Tap Configuration
The clamp provides a rod tap on both the front and back, allowing the appropriate attachment position to be selected for the installation.
Material & Finish Options
- Fig. 63G: Electro-galvanized ductile iron
- Fig. 63SX: T-316 stainless steel in 1/4", 3/8" and 1/2" sizes
Important Ordering Notes
Specify the figure number, finish and rod size when ordering. Confirm the beam or framework thickness does not exceed 1/2" and select the appropriate rod size and maximum recommended load for the installation.
Product Documents
Product Questions
What is the Fig. 63 Electrical Rod Support Clamp used for?
It is designed to attach hanger rod to a beam or framework.
What is the maximum beam or framework thickness?
The beam or framework thickness must not exceed 1/2".
Where is the rod tap located?
The Fig. 63 has a rod tap on both the front and back of the clamp.
What materials and finishes are available?
Fig. 63G is electro-galvanized ductile iron. Fig. 63SX is T-316 stainless steel and is listed in 1/4", 3/8" and 1/2" sizes.
What rod sizes are listed for the Fig. 63?
The submittal lists 1/4"-20, 5/16"-18, 3/8"-16 and 1/2"-13 rod sizes.
What is the maximum recommended load?
Maximum recommended load depends on rod size and ranges from 335 lbs. to 750 lbs. Refer to the manufacturer submittal for the applicable rod size and load data.
