Riser Clamps

Fig. 600DIP Socket Clamp For Ductile Iron Pipe Size Empire Figure 600 – Socket Clamp Submittal PDF

Fig. 50 Standard Riser Clamp Empire’s Fig. 50 Standard Riser Clamp is designed for supporting and stabilizing vertical pipe runs. Plastic coated riser clamps are completely plastic coated with zinc plated hardware. The plastic coating prevents pipe...

Fig. 189 Double Bolt Pipe Clamp Designed for the suspension of insulated pipe lines. Normally used with weldless eye nut, figure #13. Empire Figure 189 Double Bolt Pipe Clamp Submittal PDF Pipe Chart: Common Diameters & Wall Thicknesses PDF

Fig. 212 Standard Steel Pipe Clamp Empire Figure 212 Standard Steel Pipe Clamp Submittal PDF Pipe Chart: Common Diameters & Wall Thicknesses PDF

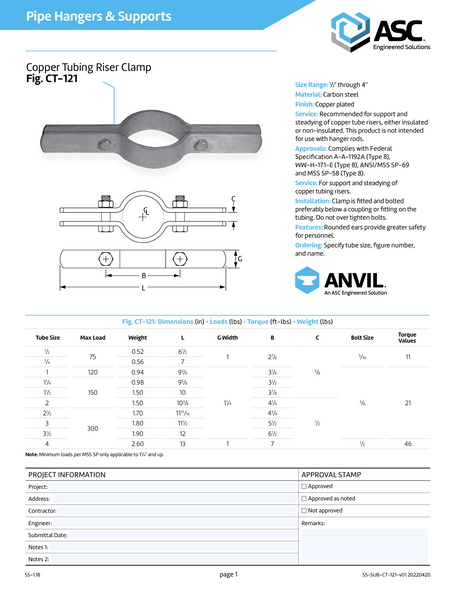

CT-121 Copper Tubing Riser Clamp Recommended for support and steadying of copper tube risers, either insulated or non-insulated. This product is not intended for use with hanger rods. For support and steadying of copper tubing risers. Product Submittal...

261 Extension Pipe or Riser Clamp For support of stationary steel pipe risers, cast iron pipe or conduit. This product is not intended for use with hanger rods. For this application refer to Fig. 40 Riser Clamp. Clamp is fitted and bolted preferably...

Fig. 95 Offset Pipe Clamp Plain Steel Finish Empire Figure 95 Offset Pipe Clamp Submittal PDF Pipe Chart: Common Diameters & Wall Thicknesses PDF

Fig. 97 Extended Pipe Clamp Plain Steel Finish Empire Figure 97 Extended Pipe Clamp Submittal PDF Pipe Chart: Common Diameters & Wall Thicknesses PDF

Fig. 48 Riser Clamp for Plastic Pipe Empire’s Fig. 47 Riser Clamp for Plastic Pipe is designed for the support of vertical runs of plastic DWV pipe. Empire Figure 48 Riser Clamp for Plastic Pipe Submittal PDF

Riser Clamp 1/2" through 6" NPS Carbon Steel - Electro Galvanized Max Temperature: 120° F For the suspension of stationary pipe Max Load: 1/2" - 2-1/2" 150 lbs. Max Load: 3" 200 lbs. Max Load: 4" 250 lbs. Product Submittal / Data Sheet PDF...

Stainless Steel Riser Clamp 1/2" through 12" 304 Stainless Steel Max Temperature: 650° F For support of stationary steel pipe risers or conduit Max Load: 1/2" - 2-1/2" 150 lbs. Max Load: 3" 200 lbs. Max Load: 4" 250 lbs. Max Load: 6" 480 lbs. Max...
