Empire Industries

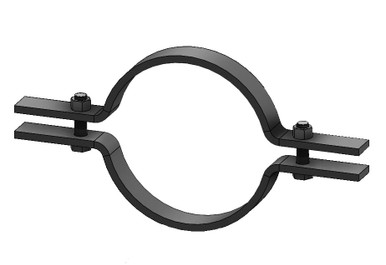

Fig. 50 Standard Riser Clamp
- SKU:
- Fig. 50
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 50 Standard Riser Clamp
Empire Fig. 50 Standard Riser Clamps are designed to support and stabilize vertical pipe runs in commercial, industrial, and mechanical piping systems.
These clamps provide dependable load support while helping maintain proper pipe alignment throughout the installation. Available in multiple material and coating options, including plastic coated and stainless steel models, Fig. 50 riser clamps are designed to reduce vibration, minimize pipe wear, and provide long-lasting performance in a variety of environments.
Product Highlights
- Designed for supporting vertical pipe runs
- Standard Fig. 50 riser clamp design
- Plastic coated models help reduce noise and vibration
- Plastic coating prevents direct contact between the pipe and clamp
- Helps prevent electrolysis between the pipe and clamp
- Plastic coated models include zinc-plated hardware
- Stainless steel models provide excellent corrosion resistance
- Available for a wide range of pipe sizes
Vertical Pipe Support
The Fig. 50 Standard Riser Clamp is designed for secure installation on vertical piping systems. The clamp helps provide stable, long-term pipe support while maintaining proper pipe alignment throughout the installation.
Confirm the required pipe size and clamp configuration before ordering and refer to the appropriate Empire manufacturer submittal for product-specific sizing and technical information.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 50 |
| Product Type | Standard Riser Clamp |
| Primary Application | Vertical Pipe Support |
| Available Configurations | Standard, Plastic Coated & Stainless Steel Models |
| Plastic Coated Hardware | Zinc-Plated |
| Copper Tube Configuration | Fig. 50CT |
| Corrosive Environments | Stainless Steel Riser Clamps Recommended |
Construction & Material Options
Plastic Coated Models
- Durable protective coating isolates the pipe from the clamp
- Helps reduce vibration
- Helps limit operational noise
- Prevents direct contact between the pipe and clamp
- Helps prevent electrolysis between dissimilar metals
- Includes zinc-plated hardware
Stainless Steel Models
- Provides enhanced corrosion resistance
- Recommended for corrosive environments
- Suitable where additional protection from the installation environment is required
- Confirm the required material before ordering
Copper Tube Riser Clamp
When ordering copper-coated models, refer to the Empire Fig. 50CT Copper Tube Riser Clamp submittal for the correct sizing information.
Pipe and tubing sizing should be verified before selecting the clamp to ensure the correct configuration is ordered for the installation.
Product Selection Considerations
- Confirm the required pipe size before selecting the riser clamp.
- For copper-coated models, refer to the Fig. 50CT submittal for correct sizing information.
- Determine whether a standard, plastic coated, or stainless steel configuration is required.
- Consider the installation environment when selecting the clamp material or coating.
- Stainless steel riser clamps are recommended for installations exposed to corrosive environments.
- Review the applicable Empire manufacturer submittal before ordering.
Important Ordering & Installation Notes
- Always verify the pipe size and clamp selection before installation.
- When ordering copper-coated models, refer to the Fig. 50CT submittal for correct sizing information.
- Plastic coated models include zinc-plated hardware.
- Stainless steel riser clamps are recommended for corrosive environments.
- Confirm the required material or coating for the installation environment.
- Review the applicable Empire manufacturer submittal for product-specific information.
Product Documents
Product Questions
What is the Empire Fig. 50 Standard Riser Clamp?
The Empire Fig. 50 Standard Riser Clamp is designed to support and stabilize vertical pipe runs in commercial, industrial, and mechanical piping systems.
What type of piping is the Fig. 50 designed to support?
The Fig. 50 is designed for vertical pipe runs.
What is the benefit of a plastic coated riser clamp?
The plastic coating isolates the pipe from the clamp, helping reduce vibration and operational noise while preventing direct contact and helping prevent electrolysis between dissimilar metals.
What hardware is used with the plastic coated models?
The plastic coated models include zinc-plated hardware.
When should a stainless steel riser clamp be considered?
Stainless steel riser clamps are recommended for installations exposed to corrosive environments.
Which document should I use for copper-coated models?
Refer to the Empire Fig. 50CT Copper Tube Riser Clamp submittal for the correct sizing information when ordering copper-coated models.
Where can I find common pipe dimensions?
The Pipe Size Chart linked in the Ask Willy section provides common pipe diameters and wall thicknesses for reference.
What should I confirm before ordering?
Confirm the pipe size, required clamp configuration, coating or material, installation environment, and applicable project requirements before ordering.
