Fig. 153 Side Beam Clamp

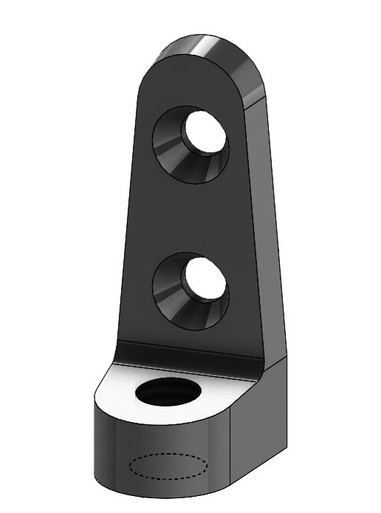

Empire Fig. 153 Side Beam Clamp is designed for mounting to the sides of wood beams using drive screws. The bottom hole is tapped for hanger rod attachment.
Product Highlights
- Designed for mounting to the sides of wood beams
- Installs using drive screws
- Bottom hole is tapped for rod
- Available in plain ductile iron and electro-galvanized finishes
- Available for 3/8"-16 and 1/2"-13 rod sizes
Wood Beam Mounting
The Fig. 153 is designed specifically for mounting to the side of a wood beam. Drive screws are used to secure the connector to the beam.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 153 |
| Product Type | Side Beam Clamp |
| Service | Mounting to sides of wood beams using drive screws |
| Rod Connection | Bottom hole tapped for rod |
| Available Rod Sizes | 3/8"-16 and 1/2"-13 |
| Available Finishes | Plain Ductile Iron (153B) and Electro-Galvanized (153G) |
| Ordering | Specify figure number, finish and rod size |
Hanger Rod Connection
The bottom hole is tapped to accept the hanger rod. The Fig. 153 is available for either 3/8"-16 or 1/2"-13 rod sizes.
Size & Load Information
| Rod Size | Drive Screw Size | Weight Each | Maximum Recommended Load |
|---|---|---|---|
| 3/8"-16 | #12 | 0.13 lbs. | 250 lbs. |
| 1/2"-13 | #14 | 0.29 lbs. | 480 lbs. |
Important Ordering Notes
Specify the figure number, finish and required rod size when ordering. Select the appropriate configuration for the hanger rod and load requirements of the installation.
Product Documents
Product Questions
What is the Fig. 153 Side Beam Clamp designed for?
It is designed for mounting to the sides of wood beams using drive screws.
How does the hanger rod attach?
The bottom hole of the Fig. 153 is tapped for the hanger rod.
What rod sizes are available?
The Fig. 153 is available for 3/8"-16 and 1/2"-13 rod sizes.
What finishes are available?
The manufacturer lists plain ductile iron (153B) and electro-galvanized (153G) configurations.
What are the maximum recommended loads?
The 3/8"-16 size has a maximum recommended load of 250 lbs., while the 1/2"-13 size has a maximum recommended load of 480 lbs.
What should be specified when ordering?
Specify the figure number, finish and rod size.
