Empire Industries
Fig. 60G 1/4" Electro-Galvanized Beam Clamp
- SKU:
- 60G0025
- Availability:
- Usually Ships Same Day
- Weight:
- 0.18 LBS
Description

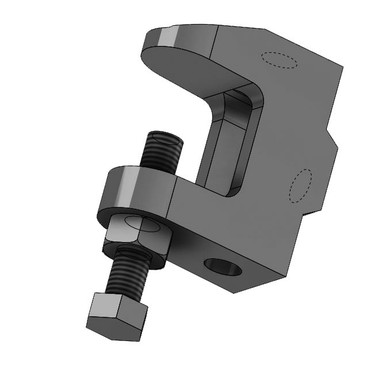

1/4" Electro-Galvanized Beam Clamp
Empire Fig. 60G 1/4" Beam Clamp is designed to attach 1/4" hanger rod from metal beams, channel or angle iron.
Manufactured from ductile iron with an electro-galvanized finish, the Fig. 60G uses a 1/4"-20 rod size and 1/4"-20 set screw.
Product Highlights
- Designed for attaching 1/4" hanger rod
- For attachment from metal beams, channel or angle iron
- Electro-galvanized ductile iron construction
- 1/4"-20 rod size
- 1/4"-20 set screw
- Maximum recommended load from top: 250 lbs.
- Maximum recommended load from bottom: 100 lbs.
Beam Clamp Application
The Fig. 60G is designed specifically for attaching 1/4" hanger rod from metal beams, channel or angle iron.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 60G |
| Product Type | Beam Clamp |
| Material | Ductile Iron |
| Finish | Electro-Galvanized |
| Rod Size | 1/4"-20 |
| Set Screw | 1/4"-20 |
| Weight Each | 0.18 lbs. |
| Max. Recommended Load - Top | 250 lbs. |
| Max. Recommended Load - Bottom | 100 lbs. |
| Service | Attaches 1/4" hanger rod from metal beams, channel or angle iron |
Load Information
The manufacturer lists a maximum recommended load of 250 lbs. when loaded from the top and 100 lbs. when loaded from the bottom.
Dimensions
| B | 5/8" |
|---|---|
| C | 1-9/16" |
| D | 15/16" |
Important Ordering Notes
Specify the figure number, finish and rod size when ordering. Confirm the required load orientation and do not exceed the manufacturer's maximum recommended load of 250 lbs. from the top or 100 lbs. from the bottom.
Product Documents
Product Questions
What is the Fig. 60G Beam Clamp used for?
It is designed to attach 1/4" hanger rod from metal beams, channel or angle iron.
What material and finish does the Fig. 60G use?
The Fig. 60G is manufactured from ductile iron with an electro-galvanized finish.
What hanger rod size does this clamp accept?
The Fig. 60G is designed for 1/4"-20 hanger rod.
What size set screw is used?
The manufacturer submittal lists a 1/4"-20 set screw.
What is the maximum recommended load?
The maximum recommended load is 250 lbs. when loaded from the top and 100 lbs. when loaded from the bottom.
What information should be specified when ordering?
Specify the figure number, finish and rod size.
