Empire Industries

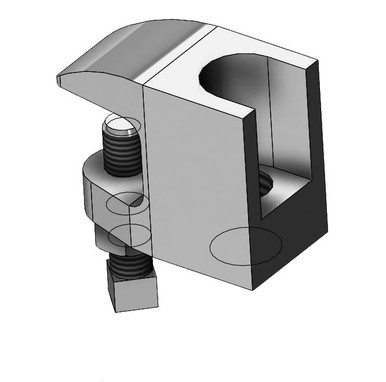

Fig. 62 Small Mouth Beam Clamp
- SKU:
- Fig. 62
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 62 Small Mouth Beam Clamp
Empire Fig. 62 Small Mouth Beam Clamps are designed to attach hanger rod to the top or bottom flange of a beam or bar joist where the flange thickness does not exceed 5/8".
Product Highlights
- Designed for hanger rod attachment
- Attaches to the top or bottom flange of a beam or bar joist
- For flange thicknesses not exceeding 5/8"
- Small mouth beam clamp design
- Available in multiple sizes
- Stainless steel Fig. 62SS/SX configurations are also documented by Empire
Beam & Bar Joist Attachment
The Fig. 62 Small Mouth Beam Clamp provides an attachment point for hanger rod at the top or bottom flange of a beam or bar joist. It is designed for applications where the flange thickness does not exceed 5/8".
Select the appropriate clamp size for the hanger rod and structural attachment requirements of the installation.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 62 |
| Product Type | Small Mouth Beam Clamp |
| Primary Function | Attach Hanger Rod to Beam or Bar Joist Flange |
| Mounting Location | Top or Bottom Flange |
| Maximum Flange Thickness | 5/8" |
Important Ordering Notes
- Select the required clamp size for the hanger rod and installation.
- Verify that the beam or bar joist flange thickness does not exceed 5/8".
- Confirm whether the clamp will be installed on the top or bottom flange.
- Review the applicable Empire submittal for the selected size or stainless steel configuration before installation.
- Confirm the clamp, hanger rod, and structural attachment are appropriate for the intended support application.
Product Documents
Product Questions
What is the Fig. 62 Small Mouth Beam Clamp used for?
The Fig. 62 is designed to attach hanger rod to the top or bottom flange of a beam or bar joist.
What is the maximum flange thickness?
The Fig. 62 is designed for beam or bar joist flanges with a thickness that does not exceed 5/8".
Can the clamp attach to either the top or bottom of a flange?
Yes. The Fig. 62 is designed for attachment to either the top or bottom flange of a compatible beam or bar joist.
Which submittal should I use?
Use the Fig. 62 submittal corresponding to the required size range. Separate documents are provided for sizes 3/8" through 1/2", sizes 5/8" through 7/8", and the Fig. 62SS/SX stainless steel configurations.
Is stainless steel information available?
Yes. Empire provides a separate Fig. 62SS/SX Stainless Steel Small Mouth Beam Clamp submittal, available in the Product Documentation section above.
