Empire Industries

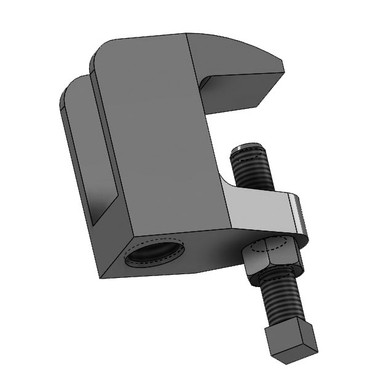

Fig. 61 Wide Mouth Beam Clamp
- SKU:
- Fig. 61
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 61 Wide Mouth Beam Clamp
Empire Fig. 61 Wide Mouth Beam Clamps are designed to attach hanger rod to the top or bottom flange of a beam or bar.
Product Highlights
- Empire Fig. 61 Wide Mouth Beam Clamp
- Designed for hanger rod attachment
- Attaches to the top or bottom flange of a beam or bar
- Wide mouth beam clamp design
- Available in multiple hanger rod sizes
- Manufacturer submittals available for sizes 3/8" through 3/4"
Beam & Bar Attachment
The Fig. 61 Wide Mouth Beam Clamp provides an attachment point for hanger rod at the top or bottom flange of a beam or bar.
Select the appropriate clamp size for the hanger rod and structural attachment requirements of the installation.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 61 |
| Product Type | Wide Mouth Beam Clamp |
| Primary Function | Attach Hanger Rod to Beam or Bar Flange |
| Mounting Location | Top or Bottom Flange |
| Documented Size Range | 3/8" through 3/4" |
Important Ordering Notes
- Select the required clamp size for the hanger rod and installation.
- Confirm the beam or bar flange is appropriate for the selected clamp.
- Confirm whether the clamp will be installed on the top or bottom flange.
- Review the applicable Empire Fig. 61 submittal for the selected size before installation.
- Confirm the clamp, hanger rod, and structural attachment are appropriate for the intended support application.
Product Documents
Product Questions
What is the Fig. 61 Wide Mouth Beam Clamp used for?
The Fig. 61 is designed to attach hanger rod to the top or bottom flange of a beam or bar.
Can the Fig. 61 attach to the top or bottom of a flange?
Yes. Empire describes the Fig. 61 as being designed for attachment to either the top or bottom flange of a beam or bar.
What sizes are covered by the available submittals?
The available Empire submittals cover sizes 3/8" through 1/2" and sizes 5/8" through 3/4".
Which product submittal should I use?
Use the Empire Fig. 61 submittal corresponding to the required clamp size. Separate documents are provided for sizes 3/8" through 1/2" and 5/8" through 3/4".
