Empire Industries

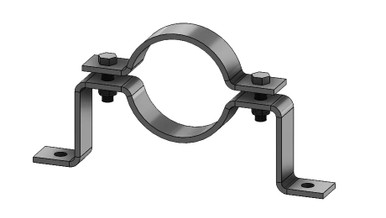

Fig. 95 Offset Pipe Clamp
- SKU:
- Fig. 95
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 95 Offset Pipe Clamp
Empire Fig. 95 Offset Pipe Clamps provide a secure method of supporting and suspending pipe while accommodating offset mounting requirements.
Built with heavy-duty steel construction and a plain steel finish, the Fig. 95 provides dependable support for commercial, industrial, and mechanical piping installations where an offset pipe clamp configuration is required.
Product Highlights
- Empire Fig. 95 offset pipe clamp
- Designed for pipe support and suspension applications
- Offset design provides installation flexibility
- Heavy-duty steel construction
- Plain steel finish
- Suitable for commercial and industrial piping systems
Offset Pipe Clamp Design
The Empire Fig. 95 features an offset configuration that provides additional installation flexibility while securely supporting piping in overhead or suspended applications.
The offset design allows the clamp to accommodate mounting requirements where a standard pipe clamp configuration may not provide the required positioning.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 95 |
| Product Type | Offset Pipe Clamp |
| Material | Steel |
| Finish | Plain Steel |
| Primary Function | Pipe Support & Suspension |
| Design | Offset Configuration |
| Applications | Commercial, Industrial & Mechanical Piping Systems |
Construction Details
Heavy-Duty Steel Construction
- Manufactured from heavy-duty steel
- Designed to provide dependable pipe support
- Suitable for mechanical piping systems
- Provides secure support for overhead or suspended piping
Plain Steel Finish
- Supplied with a plain steel finish
- Confirm the required finish before ordering
- Verify that the plain steel finish is appropriate for the installation environment
- Refer to the manufacturer submittal for additional product information
Product Selection Considerations
- Verify the required pipe size before selecting the clamp.
- Confirm applicable load requirements for the installation.
- Evaluate installation conditions and required offset configuration.
- Confirm that the plain steel finish is appropriate for the application.
- Use the clamp in accordance with accepted mechanical piping support practices.
- Consult the manufacturer submittal for dimensions, load ratings, and installation recommendations.
Important Ordering & Installation Notes
- Verify pipe size, load requirements, and installation conditions before selecting a clamp.
- This listing is for the plain steel finish.
- Confirm that the offset configuration is appropriate for the installation.
- Use in accordance with accepted mechanical piping support practices.
- Consult the manufacturer submittal for dimensions, load ratings, and installation recommendations.
Product Documents
Product Questions
What is the Empire Fig. 95?
The Empire Fig. 95 is an offset pipe clamp designed for pipe support and suspension applications.
What is the purpose of the offset design?
The offset configuration provides additional installation flexibility while securely supporting piping in overhead or suspended applications.
What material is the Fig. 95 made from?
The Fig. 95 is manufactured from heavy-duty steel.
What finish does the Fig. 95 have?
This listing is for the Fig. 95 Offset Pipe Clamp with a plain steel finish.
What applications is the Fig. 95 intended for?
The Fig. 95 is suitable for commercial, industrial, and mechanical piping applications requiring durable pipe support and an offset clamp configuration.
What should I verify before selecting a clamp?
Verify the pipe size, load requirements, installation conditions, required offset configuration, and finish before selecting the clamp.
Where can I find dimensions and load ratings?
Consult the Empire Fig. 95 manufacturer submittal linked in the Ask Willy section for dimensions, load ratings, and installation recommendations.
Where can I find common pipe dimensions?
The Pipe Size Chart linked above provides common pipe diameters and wall thicknesses for reference.
