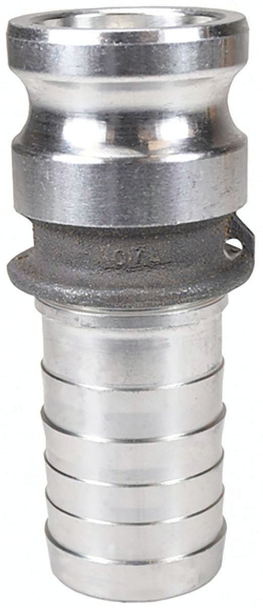

5" Aluminum Type E Cam & Groove Adapter
- SKU:
- NLDIX500-E-AL
- Availability:
- Limited quantity available.
- Weight:
- 3.00 LBS
Description
5" Aluminum Type E Cam & Groove Adapter
5" Aluminum Type E Cam & Groove Adapter provides a transition between a male cam and groove adapter connection and a hose shank.
Constructed from 356T6 aluminum, the Dixon 500-E-AL is precision machined for compatible liquid-transfer hose assemblies where a removable cam and groove connection is required.
Product Highlights
Dixon 500-E-AL is a 5" aluminum Type E adapter with a hose shank connection.
The fitting provides a male cam and groove adapter for compatible liquid-transfer hose assemblies.
Technical Specifications
Adapter x Hose Shank Configuration
The adapter end inserts into a compatible 5" female cam and groove coupler and is secured by the mating coupler's cam levers.
The hose shank inserts into compatible hose and is secured using an appropriate hose attachment method for the assembly.
Type E Cam & Groove Adapter Design
The 500-E-AL combines a male cam and groove adapter with a hose shank in one fitting. This arrangement provides a removable coupling point directly at the end of a compatible liquid-transfer hose assembly.
The adapter side connects with the mating female coupler while the shank provides the hose attachment surface. Confirm the hose inside diameter and coupling size before assembling the connection.
Dixon manufactures the 500-E-AL from 356T6 aluminum and precision machines the fitting to rigid tolerances. The aluminum construction is intended for compatible liquid-transfer applications requiring a Type E hose-end adapter.
Material compatibility should be checked against the transferred liquid and surrounding service conditions. Confirm the 500-E-AL designation when matching the fitting to an existing Dixon assembly.
Dixon notes that no industry standard exists for 5" cam and groove fittings. As a result, 5" fittings generally do not interchange with components manufactured by other coupling manufacturers.
Confirm the mating coupler manufacturer and dimensions before placing the adapter into service. Using properly matched Dixon components helps ensure the adapter and coupler engage as intended.
Dixon lists a maximum operating pressure of 75 PSI for the 500-E-AL, with the rating based on the seal of the mating component. Dixon's pressure recommendations are based on mating Dixon fittings at 70°F with a standard seal installed.
The fitting is designed for compatible liquid service and must not be used for compressed air or steam. Consult Dixon when elevated temperatures or unusual operating conditions are involved.
Installation & Selection Considerations
Confirm Dixon part number 500-E-AL.
Verify the 5" coupling size.
Confirm mating Dixon compatibility.
Verify the hose attachment method.
Confirm liquid-service conditions.
Our product specialists can help review 500-E-AL compatibility, 5" cam and groove sizing, hose requirements, attachment methods, and intended liquid service before you order.
Frequently Asked Questions
What connections are on the Dixon 500-E-AL?
The fitting combines a 5" male cam and groove adapter with a hose shank connection.
What material is the 500-E-AL made from?
Dixon manufactures the 500-E-AL from 356T6 aluminum.
What is the maximum operating pressure?
Dixon lists a maximum operating pressure of 75 PSI under its stated rating conditions.
Will this 5" adapter interchange with other manufacturers?
Not necessarily. Dixon states that no standard exists for 5" fittings and that they generally do not interchange with other manufacturers.
How does the cam and groove end connect?
The male adapter inserts into a compatible female coupler, and the coupler's cam levers are pressed down to secure the connection.
Can the 500-E-AL be used for compressed air or steam?
No. Dixon states that cam and groove couplings must not be used for compressed air or steam service.
Important Ordering & Installation Notes
- Confirm Dixon part number 500-E-AL.
- Verify the 5" nominal size.
- Confirm 356T6 aluminum construction.
- Verify the mating coupler manufacturer.
- Inspect the adapter surface before use.
- Confirm the hose inside diameter.
- Use the proper hose attachment method.
- Verify liquid compatibility.
- Do not exceed the pressure rating.
- Do not use for air or steam service.
