6" Aluminum Type A Cam & Groove Adapter
- SKU:
- NLDIX600-A-AL
- Availability:
- Limited quantity available.
- Weight:
- 4.00 LBS
Description

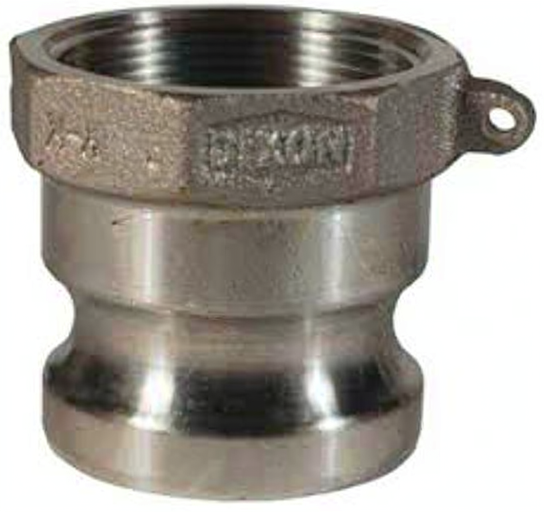

6" Aluminum Type A Cam & Groove Adapter
6" Aluminum Type A Cam & Groove Adapter provides a compact transition between a male cam and groove adapter connection and female NPT pipe thread.
Constructed from 356T6 aluminum, the Dixon 600-A-AL is designed for compatible liquid-transfer systems. The adapter end connects with a mating cam and groove coupler while the female NPT end installs onto compatible male threaded piping or equipment.
Product Highlights
356T6 aluminum Type A adapter designed to transition from a 6" cam and groove connection to female NPT pipe thread.
The male adapter x female NPT configuration provides a straightforward connection for compatible liquid-transfer piping and equipment.
Technical Specifications
Adapter x Female NPT Connection Configuration
The adapter end inserts into a compatible 6" female cam and groove coupler and is secured when the coupler's cam levers are pressed into position.
The opposite end provides female NPT pipe thread for attachment to compatible male threaded piping, fittings, valves, or equipment.
Type A Cam & Groove Adapter Design
The 600-A-AL combines a male cam and groove adapter with female NPT pipe thread in one fitting. This configuration allows compatible quick-connect hose equipment to transition directly to male threaded piping or equipment.
Confirm both connection types before installation because the cam and groove side and NPT side serve different functions. The nominal size, mating coupler, and male threaded component should all match the intended system.
Dixon manufactures the 600-A-AL from 356T6 aluminum for compatible liquid-transfer applications. Precision machining provides the adapter profile and threaded connection required for proper mating with compatible system components.
Dixon offers Type A adapters in several materials, so the -AL designation should be confirmed when selecting a replacement. Material suitability should also be checked against the transferred liquid and operating environment.
The cam and groove end is a male adapter designed to enter a compatible female coupler. The gasket located in the mating coupler forms the sealing interface while its cam arms hold the adapter securely in place.
Inspect the adapter sealing surface for dents, scratches, contamination, or other damage before connection. The mating coupler gasket and cam-arm hardware should also be checked before the assembly is placed into service.
Dixon lists a maximum operating pressure of 75 PSI for the 600-A-AL, with the pressure rating based on the seal of the mating component. Published recommendations are based on mating Dixon fittings at 70°F with a standard seal installed.
The adapter is designed for compatible liquid service and must not be used for compressed air or steam. Elevated temperatures or unusual operating conditions should be reviewed with Dixon before use.
Installation & Selection Considerations
Confirm the required 6" size.
Verify the male adapter connection.
Confirm the 6" female NPT thread.
Inspect the adapter sealing surface.
Verify liquid-service compatibility.
Our product specialists can help review cam and groove size, female NPT requirements, aluminum construction, mating coupler compatibility, and intended liquid service before you order.
Frequently Asked Questions
What connections are on the Dixon 600-A-AL?
The fitting provides a 6" male cam and groove adapter on one end and a 6" female NPT connection on the opposite end.
What material is the 600-A-AL made from?
The 600-A-AL is manufactured from 356T6 aluminum.
What is the maximum operating pressure?
Dixon lists a maximum operating pressure of 75 PSI under its stated rating conditions.
How does the cam and groove side connect?
The male adapter slides into a compatible female coupler, and the coupler's cam levers are pressed down to secure the connection.
Does the Type A adapter contain its own gasket?
No. The sealing gasket is located in the mating female cam and groove coupler rather than on the male Type A adapter.
Can the 600-A-AL be used for compressed air or steam?
No. Dixon states that cam and groove couplings must not be used for compressed air or steam service.
Important Ordering & Installation Notes
- Confirm Dixon part number 600-A-AL.
- Verify the 6" adapter size.
- Confirm the 6" female NPT thread.
- Verify 356T6 aluminum construction.
- Inspect the adapter sealing surface.
- Confirm the mating coupler size.
- Inspect the coupler gasket before use.
- Verify liquid compatibility.
- Do not exceed the pressure rating.
- Do not use for air or steam service.
