Dixon

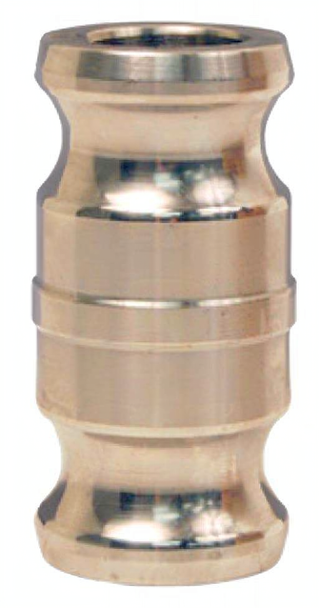

3" Aluminum Cam & Groove Type AA Spool Adapter
- SKU:
- NLDIX300-AA-AL
- Availability:
- Limited quantity available.
- Weight:
- 1.40 LBS
Description
Dixon NLDIX300-AA-AL 3" Aluminum Cam & Groove Type AA Spool Adapter
The Dixon NLDIX300-AA-AL 3" Type AA Spool Adapter is a lightweight, durable aluminum cam and groove fitting designed to provide a quick connection between compatible female camlock couplers in liquid transfer systems.
This 3" x 3" Type AA spool adapter features male cam and groove adapter connections on both ends. Manufactured from 356T6 aluminum, it provides corrosion-resistant performance, lightweight handling, and compatibility with industry-standard camlock coupling systems.
Product Highlights
- SKU: NLDIX300-AA-AL
- 3" x 3" Type AA spool adapter
- Male cam & groove adapter x male cam & groove adapter
- 356T6 aluminum construction
- Lightweight, corrosion-resistant design
- Quick-connect cam and groove configuration
- Designed to interchange with A-A-59326D cam & groove fittings
- Maximum operating pressure: 125 PSI
- Approximate overall length: 4-3/8"
- Designed for liquid transfer applications
- Not recommended for compressed air or steam service
Technical Specifications
| Brand | Dixon |
|---|---|
| SKU | NLDIX300-AA-AL |
| Product Type | Cam & Groove Spool Adapter |
| Fitting Type | Type AA |
| Nominal Size | 3" x 3" |
| Connection 1 | 3" Male Cam & Groove Adapter |
| Connection 2 | 3" Male Cam & Groove Adapter |
| Material | 356T6 Aluminum |
| Maximum Operating Pressure | 125 PSI |
| Overall Length | Approximately 4-3/8" |
| Interchange Standard | A-A-59326D |
| Intended Service | Liquid Transfer Applications |
| Service Restriction | Not Recommended for Compressed Air or Steam Service |
Type AA Spool Configuration
3" Male Cam & Groove Adapter
One side of the spool features a 3" male cam and groove adapter end designed to connect directly with a compatible female camlock coupler.
3" Male Cam & Groove Adapter
The opposite side uses the same 3" male cam and groove adapter configuration, allowing the spool to connect two compatible female cam and groove couplers.
356T6 Aluminum Construction
The NLDIX300-AA-AL is manufactured from 356T6 aluminum, providing a strong yet lightweight connection point for compatible liquid transfer systems.
The aluminum construction also provides corrosion resistance for demanding fluid handling environments.
Quick-Connect Cam & Groove Design
Male cam and groove adapter ends on both sides allow the Type AA spool adapter to connect directly with compatible female camlock couplers. This configuration supports quick assembly and disassembly in compatible liquid transfer systems.
Maximum Operating Pressure
125 PSI
The supplied product information lists a maximum operating pressure of 125 PSI. Verify the pressure ratings of the complete system, mating couplers, and all connected equipment before use.
Overall Length
The supplied product information lists an approximate overall length of 4-3/8".
A-A-59326D Interchange
The NLDIX300-AA-AL is manufactured to interchange with compatible standard cam and groove fittings meeting A-A-59326D.
Typical Applications
- Liquid transfer systems
- Cam and groove hose assemblies
- Connecting compatible female camlock couplers
- Fluid handling systems requiring quick assembly and disassembly
Service Restrictions
This Type AA spool adapter is intended for liquid transfer applications only. The supplied product information states that it is not recommended for compressed air or steam service.
Verify media compatibility, system pressure ratings, and coupling fit before installation.
Our specialists can help with Type AA spool selection, cam and groove compatibility, coupling fit, pressure requirements, and material compatibility for your liquid transfer system.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon NLDIX300-AA-AL?
The NLDIX300-AA-AL is a 3" x 3" aluminum Type AA cam and groove spool adapter featuring male camlock adapter connections on both ends.
What is a Type AA cam and groove adapter?
The Type AA configuration used on this product has a male cam and groove adapter connection on both ends, allowing two compatible female camlock couplers to be connected through the spool.
What size is this spool adapter?
The supplied product information identifies this fitting as a 3" x 3" Type AA spool adapter.
What material is the adapter made from?
The spool adapter is manufactured from 356T6 aluminum.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of 125 PSI.
How long is the spool adapter?
The supplied product information lists an approximate overall length of 4-3/8".
What does each end of the adapter connect to?
Each male cam and groove adapter end is designed to connect with a compatible female cam and groove coupler.
Does this spool adapter interchange with standard camlock fittings?
Yes. The supplied product information states that it is manufactured to interchange with compatible A-A-59326D cam and groove fittings.
Can this adapter be used for compressed air or steam?
No. The supplied product information states that the adapter is intended for liquid transfer applications only and is not recommended for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon NLDIX300-AA-AL 3" Aluminum Cam & Groove Type AA Spool Adapter.
- SKU: NLDIX300-AA-AL.
- Fitting type is Type AA.
- Nominal configuration is 3" x 3".
- Connection configuration is male cam & groove adapter x male cam & groove adapter.
- Material is 356T6 aluminum.
- Maximum operating pressure is listed as 125 PSI.
- Approximate overall length is 4-3/8".
- Designed to interchange with compatible A-A-59326D cam & groove fittings.
- Specific product weight was not supplied in the provided product information.
- Verify pressure ratings, media compatibility, and coupling fit before installation.
- Designed for liquid transfer applications only.
- Not recommended for compressed air or steam service.
