Dixon

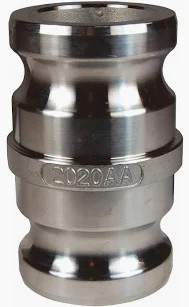

1-1/2" Type AA Cam & Groove Spool Adapter
- SKU:
- NLDIX150-AA-AL
- Availability:
- Limited quantity available.
- Weight:
- 0.50 LBS
Description
Dixon 150-AA-AL 1-1/2" Type AA Aluminum Cam & Groove Spool Adapter
The Dixon 150-AA-AL 1-1/2" Type AA Cam & Groove Spool Adapter is designed to connect two compatible camlock couplers in-line for liquid transfer applications.
Constructed from durable 356T6 aluminum, this lightweight spool adapter features male cam & groove adapter connections on both ends for quick connection and disconnection. The 150-AA-AL is manufactured to interchange with compatible products produced to Commercial Item Description A-A-59326D standards and is suitable for industrial, agricultural, petroleum, construction, and general fluid handling systems.
Product Highlights
- Dixon Type AA cam and groove spool adapter
- Manufacturer part number: 150-AA-AL
- 1-1/2" (40 mm) nominal size
- Male adapter x male adapter configuration
- 356T6 aluminum construction
- Maximum operating pressure: 250 PSI
- Overall length: approximately 3-11/16"
- Lightweight construction with corrosion resistance
- Allows two compatible cam and groove couplers to be connected in-line
- Quick-connect camlock design
- Manufactured to interchange with compatible A-A-59326D products
- Designed for liquid transfer applications
- Approximate shipping weight: 0.5 lb
- Package quantity: 1 each
Technical Specifications
| Brand | Dixon Valve & Coupling |
|---|---|
| Manufacturer Part Number | 150-AA-AL |
| Alternate SKUs | NLDIX150-AA-AL, DIX150-AA-AL, 150AAAL |
| Product Type | Cam & Groove Spool Adapter |
| Fitting Type | Type AA |
| Nominal Size | 1-1/2" (40 mm) |
| Connection Type | Male Adapter x Male Adapter |
| Material | 356T6 Aluminum |
| Maximum Operating Pressure | 250 PSI |
| Overall Length | Approximately 3-11/16" |
| Interchange Standard | Commercial Item Description A-A-59326D |
| Designed For | Liquid Transfer Applications |
| Approximate Shipping Weight | 0.5 lb |
| Package Quantity | 1 Each |
Type AA Connection Configuration
Male Cam & Groove Adapter
One end of the 150-AA-AL features a 1-1/2" male cam & groove adapter connection for engagement with a compatible female camlock coupler.
Male Cam & Groove Adapter
The opposite end uses the same 1-1/2" male adapter configuration, allowing two compatible female cam and groove couplers to be connected in-line.
356T6 Aluminum Construction
The Dixon 150-AA-AL is manufactured from 356T6 aluminum, providing lightweight strength and corrosion resistance for demanding liquid transfer environments.
Spool Adapter Design
The male adapter x male adapter configuration provides an in-line connection point between two compatible cam and groove couplers. This Type AA design is useful where two female camlock coupling ends need to be joined within a compatible liquid transfer system.
Overall Length
The supplied product information lists an approximate overall length of 3-11/16", providing a compact in-line connection between compatible cam and groove components.
Maximum Operating Pressure
250 PSI Maximum
The supplied product information lists a maximum operating pressure of 250 PSI. Confirm the pressure ratings of all connected components when determining the allowable operating pressure of the complete transfer system.
A-A-59326D Interchange
The Dixon 150-AA-AL is manufactured to interchange with compatible products produced to Commercial Item Description A-A-59326D standards.
Typical Applications
- Industrial liquid transfer systems
- Agricultural fluid handling
- Petroleum applications
- Construction fluid handling systems
- General liquid transfer applications
- Connecting two compatible cam and groove couplers in-line
Our specialists can help with camlock compatibility, spool adapter sizing, pressure requirements, material compatibility, and application questions for the Dixon 150-AA-AL 1-1/2" Aluminum Type AA Cam & Groove Spool Adapter.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 150-AA-AL?
The 150-AA-AL is a 1-1/2" Type AA aluminum cam and groove spool adapter with male camlock adapter connections on both ends.
What connections does the 150-AA-AL have?
The fitting has a male cam & groove adapter connection on both ends.
What is a Type AA cam and groove adapter used for?
The male adapter x male adapter configuration allows two compatible female cam and groove couplers to be connected in-line.
What material is the 150-AA-AL made from?
The spool adapter is manufactured from 356T6 aluminum.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of 250 PSI.
How long is the 150-AA-AL?
The supplied product information lists an approximate overall length of 3-11/16".
What standard does the 150-AA-AL interchange with?
The fitting is manufactured to interchange with compatible products produced to Commercial Item Description A-A-59326D standards.
What applications are identified for the 150-AA-AL?
The supplied product information identifies industrial, agricultural, petroleum, construction, and general fluid handling systems for liquid transfer applications.
What is the approximate shipping weight?
The supplied product information lists an approximate shipping weight of 0.5 lb.
How many spool adapters are included?
The supplied product information lists a package quantity of 1 each.
Important Ordering & Product Notes
- This listing covers the Dixon 150-AA-AL 1-1/2" Type AA Aluminum Cam & Groove Spool Adapter.
- Manufacturer part number: 150-AA-AL.
- Alternate SKUs: NLDIX150-AA-AL, DIX150-AA-AL, 150AAAL.
- Nominal size is 1-1/2" (40 mm).
- Connection configuration is male cam & groove adapter x male cam & groove adapter.
- Construction material is 356T6 aluminum.
- Maximum operating pressure is listed as 250 PSI.
- Approximate overall length is 3-11/16".
- Approximate shipping weight is 0.5 lb.
- Package quantity is 1 each.
- Manufactured to interchange with compatible products produced to A-A-59326D standards.
- Designed for liquid transfer applications.
- Confirm material compatibility, pressure rating, and connection size before installation.
