Dixon

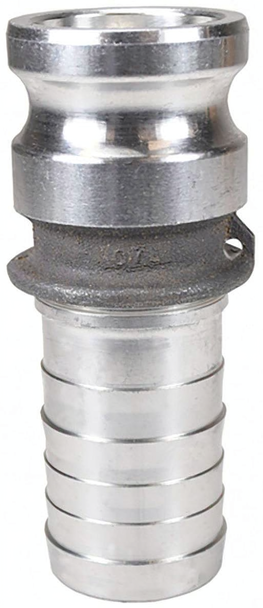

4" Type E Aluminum Cam & Groove Adapter x Hose Shank

(No reviews yet) Write a Review
SKU:
NLDIX400-E-AL
Availability:
Limited quantity available.
Weight:
2.50 LBS
*Images are for visual reference only.
  • 4" Type E Aluminum Cam & Groove Adapter x Hose Shank
  • Dixon Logo
$49.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

4" Type E Aluminum Cam & Groove Adapter x Hose Shank

4" Type E Aluminum Cam & Groove Adapter x Hose Shank provides a transition between compatible cam and groove couplers and hose assemblies.

Constructed from 356T6 aluminum, the Dixon 400-E-AL combines a 4" male cam and groove adapter with a 4" hose shank. It is designed for compatible liquid-transfer applications.

PRODUCT OVERVIEW

Product Highlights

356T6 aluminum Type E adapter designed to connect compatible 4" cam and groove couplers to hose assemblies.

The 400-E-AL combines a male cam and groove adapter with a hose shank for liquid-transfer service.

356T6 Aluminum Construction
4" Nominal Size
Type E Adapter Style
Male Adapter Cam & Groove Side
Hose Shank Hose Side
100 PSI Maximum Pressure

Technical Specifications

Product Type Type E Adapter
Manufacturer Dixon
Part Number 400-E-AL
Material 356T6 Aluminum
Nominal Size 4"
Configuration Adapter x Hose Shank
Cam & Groove End Male Adapter
Hose End 4" Hose Shank
Maximum Pressure 100 PSI
Primary Service Liquid Transfer

Type E Connection Configuration

CAM & GROOVE SIDE
4" Male Adapter

The male cam and groove adapter inserts into a compatible 4" female coupler and is secured when the mating cam arms are properly engaged.

+
HOSE SIDE
4" Hose Shank

The hose shank provides the connection point for compatible hose and an appropriate Dixon-approved hose attachment system.

Type E Aluminum Cam & Groove Adapter Design

01
4" Type E Connection Configuration

The Dixon 400-E-AL combines a 4" male cam and groove adapter with a hose shank in a single Type E fitting. This configuration allows a compatible hose assembly to connect to a female cam and groove coupler without adding a separate threaded transition.

The adapter end and hose shank perform different connection functions and must each be matched to compatible components. Confirm the 4" nominal size, hose requirements, and coupling configuration before assembling the fitting into the transfer system.

02
356T6 Aluminum Construction

Dixon manufactures the 400-E-AL from 356T6 aluminum and precision machines the fitting to rigid tolerances. The aluminum construction provides a durable Type E connection for compatible hose and liquid-transfer applications.

Material compatibility should be evaluated for the transferred liquid, temperature, environment, and connected equipment before installation. Inspect the fitting body, adapter surface, and hose shank for damage or contamination before assembly.

03
Male Cam & Groove Adapter

The male adapter end slides into a compatible female cam and groove coupler, where the coupler gasket forms the sealing interface. Pressing the mating cam levers down secures the adapter and completes the detachable cam and groove connection.

Dixon rates the 400-E-AL to 100 PSI under its stated conditions, with the pressure rating based on the seal of the mating component. The fitting can be rated to 150 PSI when properly used with the compatible King Crimp® ferrule system.

04
Hose Shank Connection

The opposite end incorporates a hose shank for attachment to compatible hose using the appropriate coupling system. Dixon identifies the 400-E-AL as suitable for use with King Crimp® sleeves and ferrules when the complete assembly is properly selected and installed.

Hose construction, attachment method, operating pressure, and transferred media should be reviewed as part of the complete assembly. Only compatible crimp-style components should be used together when the fitting is installed as part of a King Crimp® system.

Installation & Selection Considerations

01

Confirm the 4" nominal size.

02

Verify the Type E configuration.

03

Check the male adapter end.

04

Match the hose attachment system.

05

Verify liquid compatibility.

Willy knows his pipe sizes
Ask Willy: Need Help Selecting a Type E Cam & Groove Adapter?

Our product specialists can help review nominal size, aluminum construction, hose requirements, mating coupler compatibility, attachment method, and intended liquid service before you order.

Frequently Asked Questions

What is the Dixon 400-E-AL?

The 400-E-AL is a 4" Type E fitting with a male cam and groove adapter on one end and a hose shank on the other.

What material is the 400-E-AL made from?

Dixon manufactures the 400-E-AL from 356T6 aluminum.

What is the maximum operating pressure?

Dixon lists a maximum operating pressure of 100 PSI, or 150 PSI when the fitting is properly used with the King Crimp® ferrule system.

What connection is on the cam and groove side?

The Type E configuration uses a male cam and groove adapter designed to mate with a compatible 4" female cam and groove coupler.

Can the 400-E-AL be used with King Crimp® components?

Yes. Dixon identifies the 400-E-AL as suitable for use with compatible King Crimp® sleeves and ferrules.

Can the 400-E-AL be used for compressed air or steam?

No. Dixon states that cam and groove couplings should not be used for compressed air or steam service.

Important Ordering & Installation Notes

  • Verify Dixon part number 400-E-AL.
  • Confirm the 4" nominal size.
  • Verify the Type E configuration.
  • Confirm 356T6 aluminum construction.
  • Check the mating female coupler.
  • Match the hose and attachment method.
  • Inspect both connection ends before use.
  • Confirm liquid and material compatibility.
  • Do not use for compressed air or steam.
  • Observe the applicable pressure rating.
