Dixon

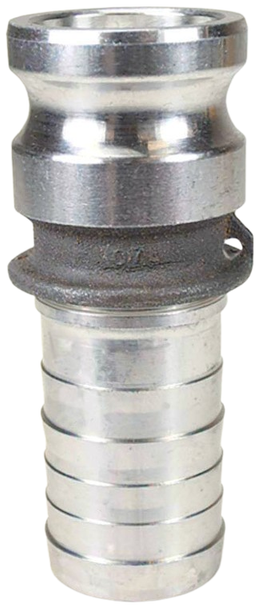

3" Aluminum Type E Cam & Groove Adapter x Hose Shank

(No reviews yet) Write a Review
SKU:
NLDIX300-E-AL
Availability:
Limited quantity available.
Weight:
1.50 LBS
*Images are for visual reference only.
  • 3" Aluminum Type E Cam & Groove Adapter x Hose Shank
  • Dixon Valve
$29.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

Dixon 3" Aluminum Type E Cam & Groove Adapter x Hose Shank

The Dixon 3" Aluminum Type E Cam & Groove Adapter x Hose Shank is designed for dependable liquid transfer connections in petroleum, agricultural, industrial, chemical, and water service applications.

Featuring a male camlock adapter on one end and a long 3" hose shank on the other, the Type E configuration combines quick cam and groove connection capability with a hose attachment end. Its aluminum construction and precision-machined design provide a lightweight, corrosion-resistant fitting for compatible fluid handling systems.

Product Highlights

  • 3" Type E cam & groove adapter x hose shank
  • Durable aluminum construction
  • Male camlock adapter connection
  • 3" hose shank/barb connection
  • Long shank design for secure hose attachment
  • Precision machined for reliable fit and sealing performance
  • Compatible with industry-standard cam & groove fittings
  • Maximum working pressure: 125 PSI
  • Approximate overall length: 6-7/8"
  • Designed for liquid transfer service

Technical Specifications

Brand Dixon
Product Type Cam & Groove Adapter x Hose Shank
Fitting Type Type E
Nominal Size 3"
Camlock Connection Male Cam & Groove Adapter
Hose Connection 3" Hose Shank / Barb
Material Aluminum
Maximum Working Pressure 125 PSI
Approximate Overall Length 6-7/8"
Service Liquid Transfer
Compressed Air Service Not Recommended
Steam Service Not Recommended

Type E Connection Configuration

The Type E configuration combines a male cam and groove adapter with a 3" hose shank. The male adapter end connects with a compatible female cam and groove coupler, while the hose shank provides the connection point for compatible hose.

This configuration provides quick camlock connection and disconnection while allowing the fitting to be incorporated into a hose assembly.

Long 3" Hose Shank

The extended 3" hose shank provides increased engagement length to help create a secure hose connection when used with an appropriate attachment method.

The supplied product information identifies clamps, ferrules, and crimping systems as hose attachment methods. Always verify the attachment method and component compatibility for the specific hose assembly before installation.

Aluminum Construction

The fitting is manufactured from aluminum, providing a lightweight and corrosion-resistant construction for demanding fluid handling environments.

Precision-machined dimensions are designed to provide reliable fit and interchangeability with compatible cam and groove connections.

125 PSI Maximum Working Pressure

The supplied product information lists a maximum working pressure of 125 PSI under normal operating conditions.

Actual system suitability should be verified based on the hose, attachment method, mating fittings, transferred material, and operating conditions.

Liquid Transfer Service

This Type E fitting is designed for liquid transfer applications. The supplied product information identifies petroleum products, chemicals, water, and agricultural fluids among its intended applications.

It is not recommended for compressed air or steam service.

Typical Applications

  • Petroleum product transfer
  • Chemical transfer
  • Water transfer
  • Agricultural fluid handling
  • Industrial liquid transfer
  • Compatible hose assemblies
  • Cam & groove fluid handling systems

Installation & Service Notes

Connect the male cam and groove adapter to a compatible female camlock coupler. The 3" hose shank is designed for attachment to compatible hose using an appropriate clamp, ferrule, or crimping system.

Always verify hose compatibility, attachment method, mating fitting compatibility, material compatibility, and system operating conditions before installation.

Do not use this fitting for compressed air or steam service based on the supplied product information.

Willy knows his Dixon Type E cam and groove adapters
Ask Willy: Need Help with This 3" Type E Adapter?

Our specialists can help with Type E cam and groove fitting selection, hose compatibility, attachment methods, mating couplers, and liquid transfer applications.

Email the GetPipe.com Team Visit Quick Support

Frequently Asked Questions

What is a Type E cam and groove fitting?

A Type E fitting combines a male cam and groove adapter with a hose shank. This 3" model has a 3" male camlock adapter connection and a 3" hose shank.

What size is this Dixon Type E adapter?

The supplied product information identifies this fitting as a 3" Type E cam & groove adapter x hose shank.

What material is this fitting made from?

The fitting is manufactured from aluminum. A specific aluminum alloy was not supplied in the provided product information.

What is the maximum working pressure?

The supplied product information lists a maximum working pressure of 125 PSI under normal operating conditions.

How long is the fitting?

The supplied product information lists an approximate overall length of 6-7/8".

How is the hose attached?

The supplied information identifies clamps, ferrules, or crimping systems as possible attachment methods for the long hose shank. Verify the appropriate attachment method for the specific hose and system before installation.

What liquids can this fitting be used with?

The supplied product information identifies liquid transfer applications including petroleum products, chemicals, water, and agricultural fluids. Material and system compatibility should always be verified for the specific transferred fluid.

Can this fitting be used for compressed air?

No. The supplied product information states that this fitting is not recommended for compressed air service.

Can this fitting be used for steam?

No. The supplied product information states that this fitting is not recommended for steam service.

Important Ordering & Product Notes

  • This listing covers the Dixon 3" Aluminum Type E Cam & Groove Adapter x Hose Shank.
  • Nominal fitting size is 3".
  • Connection configuration is male cam & groove adapter x 3" hose shank.
  • Material is aluminum; a specific aluminum alloy was not supplied.
  • Maximum working pressure is listed as 125 PSI under normal operating conditions.
  • Approximate overall length is 6-7/8".
  • Designed for liquid transfer service.
  • Not recommended for compressed air or steam service.
  • The supplied information identifies clamps, ferrules, and crimping systems as hose attachment methods.
  • A specific manufacturer part number, product weight, temperature range, and exact cam & groove interchange standard were not supplied.
  • Always verify hose attachment method, material compatibility, mating fitting compatibility, and system operating conditions before installation.
