Titan

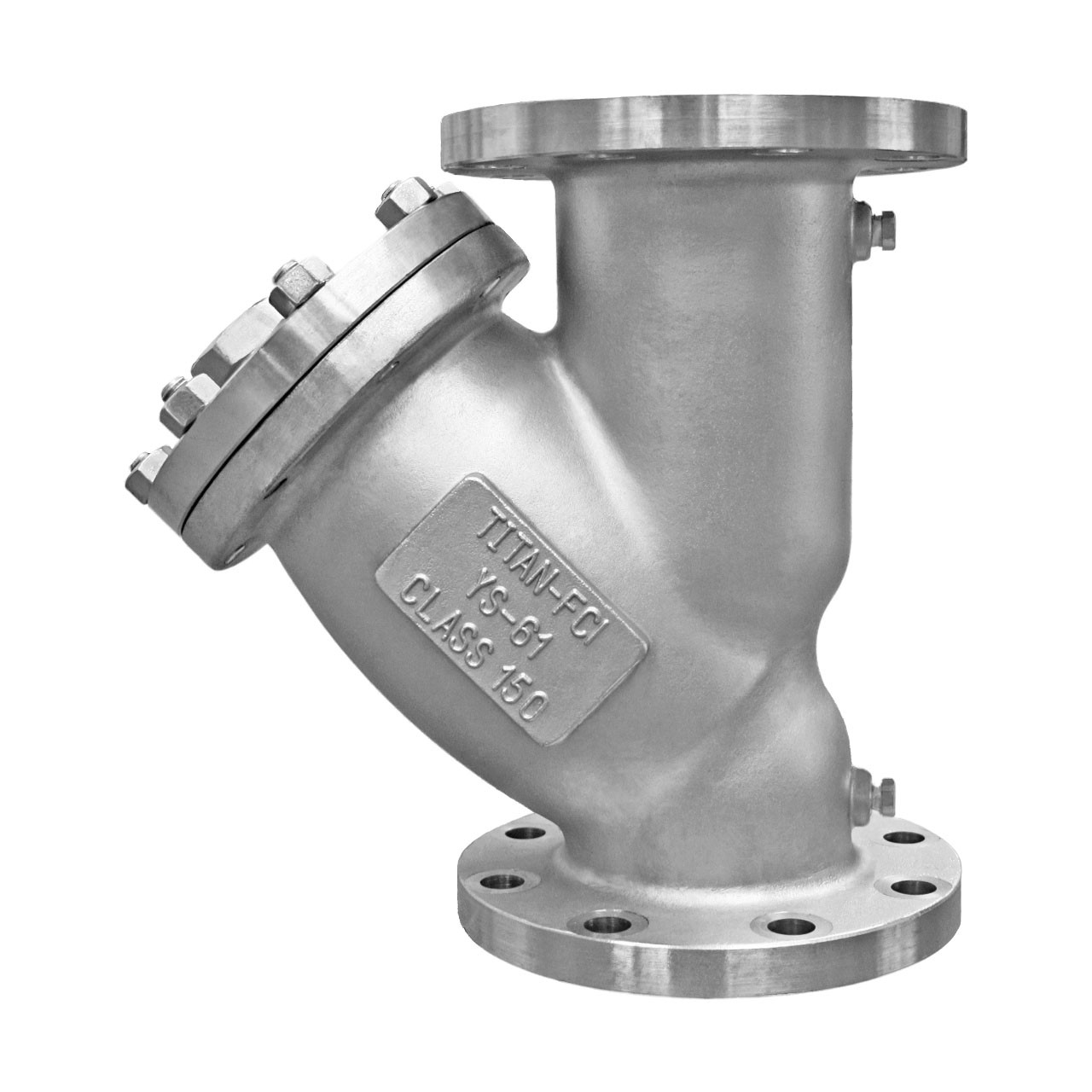

Stainless Steel Flanged Y Strainer - Class 150
- SKU:
- YS61-SS
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Stainless Steel Flanged Y Strainer - Class 150
Titan Flow Control YS61-SS stainless steel flanged Y strainers provide corrosion-resistant debris removal for compatible commercial and industrial piping systems while helping protect pumps, meters, control valves, spray nozzles, compressors, turbines, and other downstream equipment.
Select the required nominal pipe size from the product options above. The selected variation determines the Titan part code, online selling price, shipping weight, net cost, and size-specific product information.
Product Highlights
- ASTM A351 Grade CF8M stainless steel body
- Raised-face flanged end connections
- ASME Class 150
- 275 psi WOG non-shock at 100°F for Titan's published 2" through 24" pressure range
- Inlet and outlet gauge taps
- Large straining capacity
- Precision-machined screen seats
- Self-cleaning capability with an appropriate blow-off arrangement
- Optional cover designs available from Titan
- GetPipe-priced variants from 1/2" through 12"
Technical Specifications
| Manufacturer | Titan Flow Control |
|---|---|
| Model | YS61-SS |
| Body Material | Stainless Steel - ASTM A351 Grade CF8M |
| Configuration | Y / Wye Strainer |
| Connections | Flanged - Raised Face |
| Pressure Class | ASME Class 150 |
| Published Pressure Rating | 275 psi WOG non-shock at 100°F for sizes 2" through 24" |
| Stocked Screen / Perforation Material | Type 304 Stainless Steel |
| Stocked Mesh Options | 10, 20, 30, 40, 60, 80, and 100 Mesh |
| Stocked Perforation Options | 1/32", 3/64", 1/16", 1/8", 5/32", and 1/4" |
| Titan Published Size Range | 1/2" through 24" |
| GetPipe Variants on This Listing | 1/2" through 12" |
Corrosion-Resistant Strainer Protection
The YS61-SS uses an ASTM A351 Grade CF8M stainless steel body for applications where corrosion resistance is important. Process flow passes through the internal straining element, which retains debris before it reaches downstream equipment. Gauge taps allow inlet and outlet pressure to be monitored so differential pressure across the screen can be evaluated as debris accumulates.
Screen & Perforation Selection
Titan stocks Type 304 stainless steel mesh and perforation selections for the YS61-SS. Available stocked mesh selections include 10 through 100 mesh, with multiple perforation sizes also available. Confirm filtration requirements before ordering when a specific mesh or perforation is required.
Common Applications
Commercial & Mechanical
- Water and compatible liquid piping
- Pump and meter protection
- HVAC and utility piping
- Control-valve protection
Industrial & Process
- Corrosive-service piping where CF8M is compatible
- Process-water systems
- Spray nozzle protection
- Equipment inlet protection
Manufacturer Resources
Need Help Selecting a Titan Stainless Steel Y Strainer?
Our industrial PVF specialists can help confirm nominal pipe size, flange class, screen selection, pressure and temperature requirements, media compatibility, and product availability.
Frequently Asked Questions
What is the Titan YS61-SS?
It is an ASTM A351 Grade CF8M stainless steel, raised-face flanged Y strainer with an ASME Class 150 rating.
What is Titan's published pressure rating?
Titan publishes 275 psi WOG non-shock at 100°F for the 2" through 24" range. Confirm the applicable pressure-temperature rating for the selected size and service before installation.
What screen material is stocked?
Titan identifies Type 304 stainless steel for stocked mesh and perforation selections.
Can different mesh or perforation sizes be ordered?
Yes. Titan stocks several mesh and perforation selections. Contact GetPipe.com to confirm the correct filtration opening for your application.
Does Titan manufacture this model larger than 12"?
Yes. Titan publishes the YS61-SS through 24". This GetPipe listing currently includes sizes through 12" based on the current consolidated net-cost data.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Titan part code, price, weight, and net cost.
- Confirm mating flange dimensions, pressure class, gasket and bolting requirements before installation.
- Confirm required mesh or perforation when the standard configuration does not suit the application.
- Sizes over GetPipe parcel-weight limits ship by freight; freight charges apply according to GetPipe shipping policy.
- Confirm pressure, temperature, media compatibility, installation orientation, and applicable code requirements before use.
