Spears

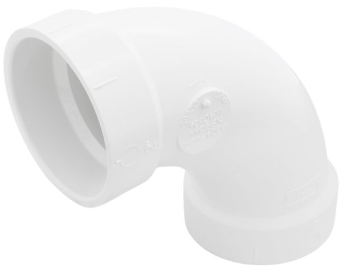

PVC DWV Long Sweep 90 Degree Elbow (H x H)
- SKU:
- P304
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
PVC DWV Long Sweep 90 Degree Elbow (H x H)
PVC DWV Long Sweep 90 Degree Elbow (H x H) provides a gradual 90-degree directional transition within compatible PVC drain, waste, and vent piping. The long-sweep configuration uses hub connections at both ends to receive appropriately sized compatible PVC DWV pipe.
The H x H long sweep 90 degree elbow configuration provides a broader-radius directional change than a compact elbow arrangement. Selection should account for nominal size, hub compatibility, adjoining pipe, required sweep orientation, joining requirements, piping alignment, support, and available installation clearance.
Product Highlights
- PVC construction
- DWV fitting design
- Long sweep configuration
- 90° directional transition
- Hub x hub connections
- Provides a gradual piping turn
- Receives compatible PVC DWV pipe
- Combines a broad-radius sweep with a 90-degree change in direction
Technical Specifications
| Product Type | Long Sweep 90° Elbow |
|---|---|
| Material | PVC |
| System Type | DWV |
| Connection | Hub x Hub (H x H) |
| Connection Count | Two |
| Fitting Configuration | Long Sweep 90° Elbow |
| Hub Interface | Compatible PVC DWV Pipe |
| Connection Style | Hub x Hub |
| Joining Method | Compatible PVC DWV Joining Procedure |
| Directional Change | 90° |
| Sweep Style | Long Sweep |
| Primary Function | Provide a Gradual 90-Degree Change in Direction Within Compatible PVC DWV Piping |
Long Sweep Design
The long sweep configuration provides a broader-radius 90-degree directional transition within compatible PVC DWV piping. This design allows the piping path to turn through a more gradual curve than a compact elbow configuration.
The elbow orientation should be established before permanent joining so both hub openings correspond with the intended piping route. Planning the position helps coordinate adjoining pipe, nearby fittings, support, and available working clearance.
Hub Connections
The hub connections receive appropriately sized compatible PVC DWV pipe at both ends of the elbow. Both openings should be matched to the intended nominal pipe size before permanent assembly.
The mating pipe and hub surfaces should be prepared using the appropriate PVC DWV joining procedure. Proper insertion, compatible joining materials, correct elbow orientation, and careful alignment help establish the connections without unnecessary stress on the fitting.
PVC DWV Integration
The PVC DWV construction allows the long sweep elbow to integrate into compatible drain, waste, and vent piping arrangements requiring a gradual right-angle transition. Matching the nominal size and hub interfaces to the adjoining PVC pipe helps maintain the intended piping configuration.
Application suitability should be evaluated using the requirements of the complete DWV system. Adjoining materials, connection compatibility, joining materials, piping support, slope where applicable, and local installation requirements should all be considered during fitting selection.
90° Sweep Transition
A PVC DWV Long Sweep 90 Degree Elbow provides a gradual method of redirecting compatible piping through a right-angle turn. The H x H arrangement allows compatible PVC DWV pipe to enter both openings of the fitting.
Installation planning should consider sweep orientation, adjoining pipe alignment, nearby components, available clearance, and piping support. Connected piping should align naturally without forcing the fitting into position.
Installation & Selection Considerations
- Confirm the nominal size.
- Verify the H x H arrangement.
- Check PVC DWV compatibility.
- Confirm the required 90° sweep orientation.
- Align adjoining pipe before assembly.
Our PVC fitting specialists can help review your nominal size, DWV requirements, H x H configuration, adjoining PVC pipe, required sweep orientation, joining requirements, piping alignment, support requirements, and available installation clearance before you order.
Frequently Asked Questions
What is a PVC DWV Long Sweep 90 Degree Elbow used for?
It provides a gradual 90-degree change in direction within compatible PVC DWV piping.
What does H x H mean?
It identifies hub connections at both ends of the fitting.
What is a long sweep elbow?
It uses a broader-radius curve to create the 90-degree directional transition.
What connects to the hub openings?
The hub openings receive appropriately sized compatible PVC DWV pipe.
Does sweep orientation matter?
Yes. The elbow should be positioned so the 90-degree sweep corresponds with the intended piping route.
What should I confirm before ordering?
Confirm the nominal size, H x H arrangement, PVC DWV compatibility, and required sweep orientation.
Important Ordering & Installation Notes
- Inspect both hubs before use.
- Confirm the nominal connection size.
- Verify the H x H arrangement.
- Prepare adjoining pipe correctly.
- Set the sweep orientation before assembly.
