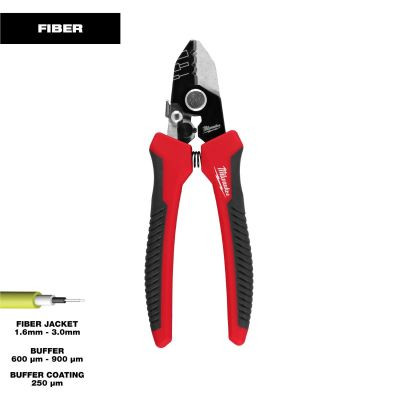

Milwaukee Tool Tri-Hole Fiber Stripper
- SKU:
- MLW48-22-3013
- Availability:
- Usually Ships Same Day
- Weight:
- 0.25 LBS
Description
DUTY®
Tri-Hole
Fiber Stripper
A factory-set fiber stripper with separate precision-ground openings for 1.6–3.0 mm jackets, 600–900 micron buffers and 250 micron acrylate coating.
Product Overview
Match the factory-set notches to 1.6–3.0 mm jackets, 600–900 μm buffers or 250 μm acrylate.
The spring-loaded tool opens for repeated use; test on a spare end and inspect for fiber damage.
- Three notchesMatch notch to fiber layer.
- Factory-set notchesNotches are factory-set.
- Precision notchesSized for the listed layers.
- Readable sizingLaser-marked openings.
Technical Specifications
- Jacket range
- 1.6–3.0 mm
- Tight-buffer range
- 600–900 μm
- Acrylate coating
- 250 μm
- Stripping notches
- Factory-set
- Opening action
- Spring-loaded
- Storage lock
- Lever lock
Choose the Correct Fit
Check the cable type, layer size and connector preparation requirements before choosing the tool or setting.
Use the correct opening or cartridge side; for an adjustable blade, begin with a conservative depth and test on a spare end.
Installation & Care
Inspect the exposed layer for damage before proceeding. Follow the cable manufacturer’s handling and disposal procedure.
Keep the cutting area clean and close the storage lock where fitted. Replace damaged blades or notches rather than forcing the cable.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing? Tell Willy your material, required size and working clearance so the GetPipe team can check the fit.
Important Product Questions
Can I strip a different cable of the same diameter?
Diameter alone does not establish suitability. Match the cable construction, layer and material to the tool’s stated application.
Can I change the stripping notch sizes?
The openings are factory-set for the stated jacket, buffer and coating sizes. Use a different suitable stripper when the layer does not match.
What if the conductor or fiber is nicked?
Stop and reprepare an undamaged section according to the cable and termination instructions. Do not hide or reuse a damaged portion inside a connector.
