Milwaukee
Milwaukee Tool EXACT 7/8" SINK Die
- SKU:
- MLW49-16-2705
- Availability:
- Usually Ships Same Day
- Weight:
- 0.39 LBS
Description
DUTY®
EXACT 7/8 in
SINK Die

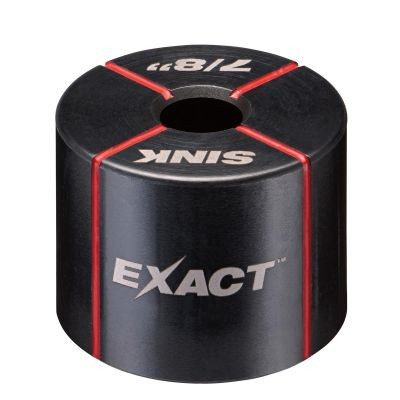

Model 49-16-2705 supplies one SINK die for a matched knockout setup. The 7/8 in designation is the sink-hole size.
Product Overview
This 7/8 in SINK die aligns to layout marks with engraved crosshairs. Sizing helps match the punch.
Use a matching punch and draw stud. Check the tool rating before punching metal.
- Crosshair alignmentLines up with layout marks.
- Clear size IDHelps match punch and die.
- Stainless ratingRated through 16 gauge.
- Sink applicationsMade for sink-hole punching.
Technical Specifications
- Component
- SINK Die
- Hole size
- 7/8 in
- Work materials
- Mild & stainless steel
- Matching punch
- 49-16-2706
- Pack quantity
- 1 die
- Model
- 49-16-2705
Choose the Correct Fit
Pair this 7/8 in SINK die with EXACT punch 49-16-2706. These are sink-hole accessories, not conduit trade-size substitutes; compare the actual hole requirement before ordering.
Milwaukee lists a standard 1 in hand ratchet for this 7/8 in SINK accessory. The manufacturer rates the matched SINK accessories for up to 16-gauge stainless steel.
Installation & Care
Lay out the hole before assembly and align the die crosshairs with the marks. Seat the matched components as directed in the knockout tool instructions; do not force mismatched threads.
Remove the slug after the cut and inspect the cutting edges and draw-stud threads. Follow the tool instructions for safe removal, lubrication and replacement of worn components.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help matching knockout components? Share model 49-16-2705, your tool, required hole size and work material.
Important Product Questions
Is a matching punch included?
No. Model 49-16-2705 supplies one die. The matching punch is 49-16-2706; the tool and draw stud are separate components.
Does the size describe the finished hole?
This SINK accessory is identified by its 7/8 in hole size. It is not a conduit trade-size part; check the sink fitting requirement.
Can I use it in stainless steel?
Yes, with the matched SINK components and a compatible tool, within the stated 16-gauge stainless-steel rating.
