Milwaukee

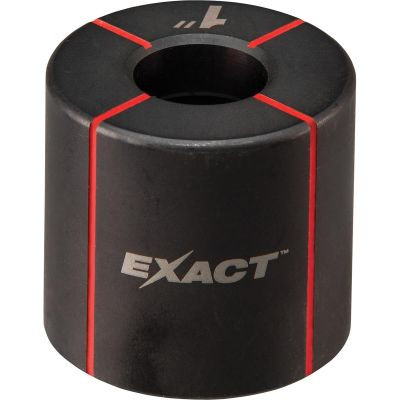

Milwaukee Tool EXACT 1" Die
- SKU:
- MLW49-16-2664
- Availability:
- Usually Ships Same Day
- Weight:
- 0.66 LBS
Description
DUTY®
EXACT 1 in
Die
Model 49-16-2664 supplies one die for a matched knockout setup. The 1 in designation is a nominal conduit trade size, not the measured hole diameter.
Product Overview
This 1 in die aligns to layout marks with engraved crosshairs. Sizing helps match the punch.
Use a matching punch and draw stud. Check the tool rating before punching metal.
- Crosshair alignmentLines up with layout marks.
- Clear size IDHelps match punch and die.
- No spacer neededDie height supports setup.
- Metal applicationsFor mild and stainless steel.
Technical Specifications
- Component
- Die
- Conduit trade size
- 1 in
- Work materials
- Mild & stainless steel
- Matching punch
- 49-16-2665
- Pack quantity
- 1 die
- Model
- 49-16-2664
Choose the Correct Fit
Pair this 1 in conduit die with EXACT punch 49-16-2665. Select by nominal conduit trade size; do not interpret that number as the measured diameter of the finished hole.
Select the draw stud specified for the matched punch and die. Tool capacity depends on the metal, thickness and hole size, so check the tool manual before punching.
Installation & Care
Lay out the hole before assembly and align the die crosshairs with the marks. Seat the matched components as directed in the knockout tool instructions; do not force mismatched threads.
Remove the slug after the cut and inspect the cutting edges and draw-stud threads. Follow the tool instructions for safe removal, lubrication and replacement of worn components.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help matching knockout components? Share model 49-16-2664, your tool, required hole size and work material.
Important Product Questions
Is a matching punch included?
No. Model 49-16-2664 supplies one die. The matching punch is 49-16-2665; the tool and draw stud are separate components.
Is conduit trade size the actual hole diameter?
No. 1 in is the nominal conduit trade designation. Confirm the actual required opening and use the matched knockout components.
Can I use it in stainless steel?
It is listed for stainless steel, but the tool, draw stud and material thickness must also be within their ratings. Do not apply a tool rating from a different model.
