Milwaukee
Milwaukee Tool 4 Pc Countersink Drill Bit Set
- SKU:
- MLW48-13-5003
- Availability:
- Usually Ships Same Day
- Weight:
- 0.24 LBS
Description
DUTY®
Adjustable
Countersink Set
Pre-drill and countersink for #6, #8 and #10 screws with adjustable pilot depth.
Product Overview
The #6, #8 and #10 cutters each pair with a specific pilot diameter. Choose the size for your screw.
Adjustable drill length sets pilot depth. Make a trial hole to check the screw head’s seating.
- Combined operationDrill and countersink.
- Adjustable pilotSet the exposed drill length.
- Quick-change shank1/4 in quick-change hex.
- Depth adjustmentUse a 1/8 in hex key for setup.
Technical Specifications
- Countersink size
- #6, #8, #10
- Pilot diameter
- 9/64, 11/64, 3/16 in
- Shank
- 1/4 in quick-change hex
- Depth control
- Adjustable drill length
- Adjustment tool
- 1/8 in hex key
- Tool compatibility
- Drill/drivers
Choose the Correct Fit
Check the screw head and pilot-hole requirements before selecting the countersink size.
Isolate the drill before changing bits or adjusting the pilot length with a 1/8 in hex key.
Installation & Care
Clamp the work and make a test hole in scrap to confirm depth and screw-head seating.
Remove chips with the tool stopped. Inspect the pilot drill and countersink edges before storage.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing a countersink? Tell Willy the screw size, head style and work material.
Important Product Questions
Which countersinks and pilot sizes are included?

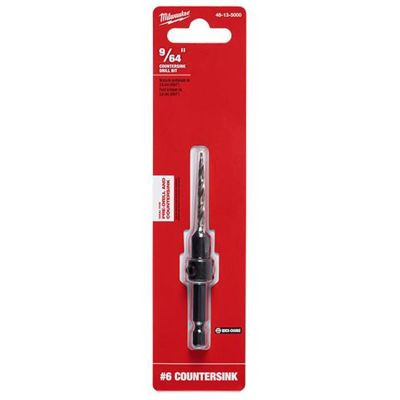

The set contains #6 with a 9/64 in bit, #8 with an 11/64 in bit, and #10 with a 3/16 in bit.
How do I adjust the pilot depth?
Disconnect the drill, use a 1/8 in hex key to adjust the exposed bit length, then secure the adjustment before making a test hole.
Is the quarter-inch shank an impact rating?
No. The 1/4 in quick-change hex describes the connection. This countersink is specified for drill/drivers; do not assume impact-driver compatibility from shank shape.
