Harris
Harris ER80S-B2 Chrome-Moly TIG Welding Rod 10 lb
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

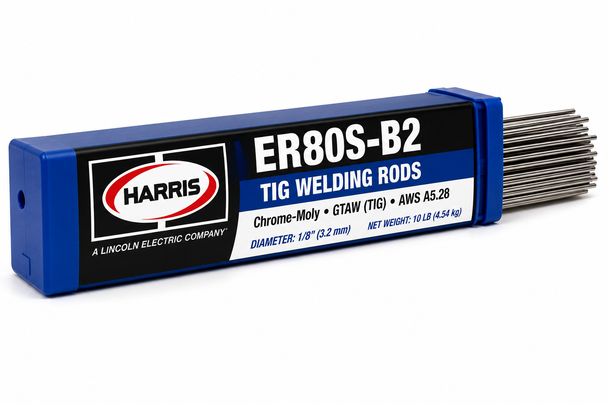

Harris ER80S-B2 Chrome-Moly TIG Welding Rod 10 lb
Harris ER80S-B2 TIG (GTAW) welding rod is a low-alloy chromium-molybdenum filler metal designed for welding Cr-Mo steels used in elevated-temperature and corrosive-service applications. It is also suitable for joining dissimilar combinations of chromium-molybdenum and carbon steels.
Select the required rod diameter from the product options above. Each variation is supplied in a 10 lb box and determines the Harris part number, online selling price, shipping weight, and net cost.
Product Highlights
- ER80S-B2 low-alloy chromium-molybdenum TIG / GTAW filler rod
- For 1/2% Cr-1/2% Mo, 1% Cr-1/2% Mo, and 1-1/4% Cr-1/2% Mo steels
- Designed for elevated-temperature and corrosive-service applications
- Suitable for joining dissimilar Cr-Mo and carbon steels
- Commonly used for pressure vessels, piping, and turbine castings
- All-position welding capability
- Uses 100% argon shielding gas per Harris product information
- Conforms to AWS A5.28 ER80S-B2
Technical Specifications
Common Applications
Pressure & Process Equipment
- Pressure vessels
- High-temperature piping
- Process piping
- Corrosive-service systems
Power & Industrial
- Turbine castings
- Chromium-molybdenum steels
- Dissimilar Cr-Mo to carbon-steel joints
- General low-alloy steel fabrication
Product Resources
Review current Harris manufacturer information and the applicable welding procedure before final product selection or welding.
Need Help Selecting ER80S-B2 TIG Rod?
Our GetPipe.com team can help confirm rod diameter, base alloy, welding requirements, product availability, and related welding supplies.
Frequently Asked Questions
What is Harris ER80S-B2 used for?
Harris ER80S-B2 is used for TIG welding chromium-molybdenum low-alloy steels in elevated-temperature and corrosive-service applications, including pressure vessels, piping, and turbine castings.
Can ER80S-B2 join Cr-Mo steel to carbon steel?
Yes. Harris identifies ER80S-B2 for welding dissimilar combinations of chromium-molybdenum and carbon steels.
What shielding gas is used?
Harris specifies 100% argon shielding gas for this ER80S-B2 TIG product family.
What diameters are available?
This GetPipe.com listing includes 1/16 in., 3/32 in., and 1/8 in. diameters, each supplied in a 10 lb box.
Does ER80S-B2 meet AWS requirements?
Yes. Harris ER80S-B2 conforms to AWS A5.28 ER80S-B2.
Important Ordering & Safety Notes
- Select the correct rod diameter before adding the product to your cart.
- Each variation is supplied in a 10 lb box.
- Selected variation determines the Harris part number, online price, shipping weight, and cost.
- Follow the qualified welding procedure for base material, preheat, interpass temperature, post-weld heat treatment, shielding gas, and filler-metal selection.
- Welding fumes and gases can be hazardous. Review current manufacturer labeling and safety documentation and follow applicable workplace safety requirements.
