Harris 5356 Aluminum TIG Welding Rod
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

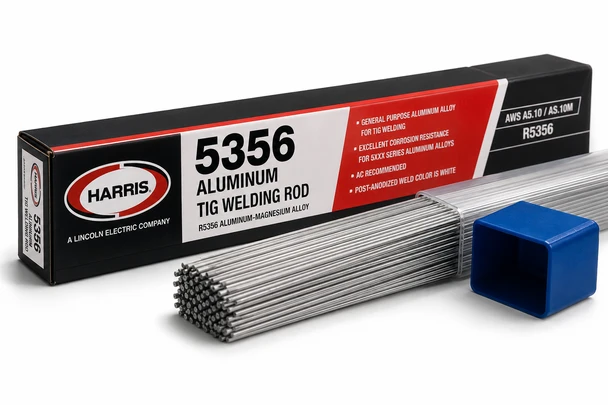

Harris 5356 Aluminum TIG Welding Rod
Harris 5356 aluminum TIG welding rod is an R5356 aluminum-magnesium filler metal designed for GTAW / TIG welding of compatible aluminum alloys, particularly 5XXX-series materials. This versatile filler alloy provides strong weld deposits, excellent corrosion resistance, and dependable performance for marine, transportation, structural, repair, and general aluminum fabrication.
Select the required diameter and package configuration from the product options above. Each available variation represents an actual Harris product configuration and determines the Harris item number, package weight, selling price, and cost.
Product Highlights
- AWS classification R5356 aluminum-magnesium filler metal
- Designed for GTAW / TIG aluminum welding applications
- General-purpose filler alloy for welding many compatible 5XXX-series aluminum alloys
- Approximately 5% magnesium alloy for strong aluminum weld deposits
- Excellent corrosion resistance for suitable aluminum applications
- Widely used in marine and shipbuilding fabrication
- Suitable for transportation, trailer, structural, repair, and general fabrication work
- Post-anodized weld color is generally white
- Available in multiple TIG rod diameters and package weights
- Manufactured by The Harris Products Group
Technical Specifications
| AWS Classification | R5356 |
|---|---|
| AWS Specification | AWS A5.10 / A5.10M |
| Filler Metal Type | Aluminum-Magnesium TIG Welding Rod |
| Welding Process | GTAW / TIG Welding |
| Primary Base-Metal Family | Compatible 5XXX-Series Aluminum Alloys |
| Nominal Magnesium Content | 4.5%–5.5% |
| Recommended TIG Current | AC |
| Recommended Tungsten | Pure or Zirconiated Tungsten |
| Shielding Gas | Argon |
| Solidus | Approximately 1060°F (571°C) |
| Liquidus | Approximately 1175°F (635°C) |
| Typical Tensile Strength | Approximately 39,000 PSI as welded on 5086 base plate |
| Typical Yield Strength | Approximately 19,000 PSI |
| Typical Elongation | Approximately 17% in 2 inches |
| Post-Anodize Color | White |
| Manufacturer | The Harris Products Group |
Recommended TIG Welding Parameters
| Material Thickness | Tungsten Electrode | Filler Rod Size | Amperage | Voltage | Gas Cup | Argon Flow |
|---|---|---|---|---|---|---|
| 1/16" | 1/16"–3/32" | 1/16"–3/32" | 70–100 A | 15 V | 3/8" | 20 CFH |
| 1/8" | 1/8"–5/32" | 1/8"–5/32" | 125–175 A | 15 V | 7/16" | 20 CFH |
| 3/16" | 5/32"–3/16" | 5/32"–3/16" | 170–225 A | 15 V | 7/16"–1/2" | 25 CFH |
| 1/4" | 3/16"–1/4" | 3/16" | 220–275 A | 15 V | 1/2" | 30 CFH |
| 3/8" | 1/4" | 3/16"–1/4" | 330–380 A | 15 V | 5/8" | 35 CFH |
| 1/2" | 1/4" | 1/4" | 400–450 A | 25 V | 5/8" | 35 CFH |
Harris publishes these values as basic starting guidelines. Actual welding parameters will vary with joint design, number of passes, material condition, equipment, welding position, and other procedure variables.
Performance Characteristics
| Strength | ER/R5356 provides a strong aluminum weld deposit for compatible applications. |
|---|---|
| Corrosion Resistance | Well suited for applications requiring the corrosion resistance associated with compatible 5XXX-series aluminum alloys. |
| Marine Performance | 5356 is widely used for aluminum welding in marine and shipbuilding applications. |
| Anodizing Appearance | Produces a generally white post-anodized weld color. |
| Versatility | Suitable for marine, transportation, trailer, railway, power-industry, structural, repair, and general fabrication applications. |
Common Applications
Marine & Transportation
- Shipbuilding and marine fabrication
- Trailer manufacturing
- Truck and transportation components
- Automotive components
- Railway equipment
- Marine maintenance and repair
Industrial & General Fabrication
- General aluminum fabrication
- 5XXX-series aluminum components
- Structural aluminum assemblies
- Power-industry applications
- Industrial maintenance
- Aluminum repair work
Product Resources
Review the manufacturer-published Harris technical specification sheet for composition, physical properties, specification compliance, and recommended MIG and TIG welding parameters for 5356 aluminum filler metal.
View Harris 5356 Technical Data SheetNeed Help Selecting Harris 5356 Aluminum TIG Rod?
Our welding and industrial supply specialists can help you select the appropriate R5356 rod diameter and package configuration for your aluminum TIG welding application.
Frequently Asked Questions
What is Harris 5356 aluminum TIG welding rod?
Harris 5356 is an R5356 aluminum-magnesium filler metal designed for GTAW / TIG welding of compatible aluminum alloys, particularly many 5XXX-series materials.
What welding process is used with Harris 5356 TIG rod?
This product is intended for gas tungsten arc welding, commonly referred to as GTAW or TIG welding.
What aluminum alloys are commonly welded with R5356?
5356 is a general-purpose aluminum-magnesium filler alloy commonly used with compatible 5XXX-series aluminum materials. Always verify filler-metal compatibility with the exact base alloy and welding procedure.
What shielding gas is recommended for TIG welding 5356?
Harris publishes TIG starting parameters using Argon shielding gas.
What type of tungsten is recommended?
Harris identifies pure or zirconiated tungsten electrodes in its published GTAW starting parameters.
Can Harris 5356 be used for marine fabrication?
Yes. 5356 aluminum filler metal is widely used in shipbuilding and marine aluminum fabrication because of its strength and corrosion-resistant characteristics when used with compatible base materials.
What color does a 5356 weld become after anodizing?
Harris lists the post-anodized weld color for 5356 as white.
How do I choose the correct Harris 5356 TIG variation?
Select the exact rod diameter and package configuration required for your application. Each available option corresponds to a real Harris SKU and determines the package weight, selling price, and cost.
Important Ordering Notes
- Select the required diameter and package configuration before adding the product to your cart.
- Each available option on this product page represents an actual Harris 5356 TIG product configuration currently approved for listing.
- The selected variation determines the Harris item number, package weight, selling price, and cost.
- Not every TIG rod diameter is manufactured or currently available in every package size.
- Only the diameter/package combinations shown above are available for purchase through this product page.
- Large package configurations may require an alternate shipping method depending on total shipment weight and destination.
- Published welding parameters are basic starting guidelines and should be adjusted to the actual welding procedure.
- Always verify filler-metal compatibility with the exact aluminum base alloy before welding.
- Always follow applicable welding procedures, manufacturer instructions, workplace safety requirements, and applicable codes.
