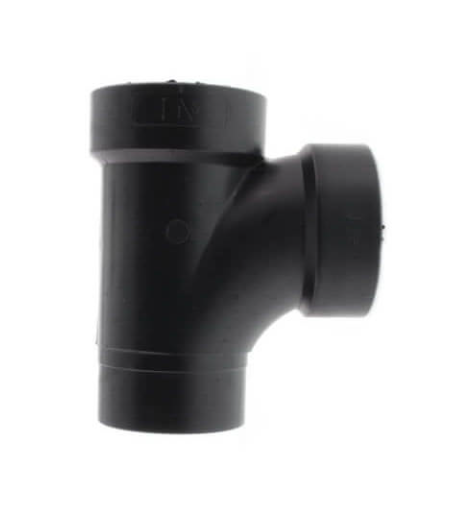

ABS DWV Street Sanitary Tee (SPG x HUB x HUB)
- SKU:
- LN403
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ABS DWV Street Sanitary Tee (SPG x HUB x HUB)
ABS DWV Street Sanitary Tees provide a sanitary branch connection while allowing a direct fitting-to-fitting connection within non-pressure drain, waste, and vent systems.
Featuring one spigot (SPG) connection and two hub connections, this fitting is designed to connect a branch line into an ABS DWV piping run while reducing the need for an additional coupling on the street end. The sanitary-pattern branch helps guide flow into the main line while supporting efficient drainage and venting. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV street sanitary tee
- Spigot x Hub x Hub connection configuration
- One spigot connection and two hub connections
- Provides a sanitary branch connection
- Street-style spigot end fits directly into a compatible hub fitting
- Can reduce the need for an additional coupling
- Sanitary-pattern branch transition
- Designed for solvent-cement installation
- Suitable for drain, waste, and vent systems
- Suitable for sewer and general drainage applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV Street Sanitary Tee |
|---|---|
| Material | ABS |
| Connection Type | Spigot (SPG) x Hub x Hub |
| Number of Connections | 3 |
| Joint Method | Solvent Cement |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Provide a Sanitary Branch Connection with a Direct Street-Style Connection |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Sanitary Drainage, Waste Lines, Vent Systems, Sewer, General Drainage, and Branch Connections |
Connection Configuration
Spigot Connection
The spigot end is designed to fit directly into a compatible ABS DWV hub fitting, allowing a close-coupled connection without an additional coupling.
Hub Connections
The remaining two hub connections accept compatible ABS DWV pipe for the main run and branch connection.
Street Sanitary Tee Design
The street sanitary tee combines a sanitary branch connection with a spigot end that can connect directly into another compatible ABS DWV hub fitting.
This configuration can reduce overall assembly length and eliminate the need for an additional coupling in certain piping layouts.
The sanitary-pattern branch uses a curved transition to guide flow into the main run while maintaining a compact three-connection fitting.
Why Choose an ABS DWV Street Sanitary Tee?
Compact Branch Connection
- Provides a sanitary branch connection
- Street end fits directly into a compatible hub
- Can reduce the need for an extra coupling
- Three connection points in one fitting
- Useful in compact DWV layouts
ABS DWV Benefits
- Lightweight construction
- Easy handling and installation
- Suitable for non-pressure drainage systems
- Compatible with ABS DWV piping systems
- Designed for long-term sanitary drainage service
Typical Applications
Drainage Systems
- Sanitary drain lines
- Waste piping
- General building drainage
- Sewer piping
- ABS DWV branch connections
Vent & Branch Routing
- Branch vent connections
- Vertical drain connections
- Residential plumbing
- Commercial drainage systems
- Compact fitting-to-fitting layouts
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify all three nominal connection sizes before installation and confirm compatibility with the intended ABS DWV piping layout.
Cut the mating ABS pipe ends square and remove burrs. Clean and prepare the pipe, hub, spigot, and mating fitting surfaces according to accepted ABS solvent-cement installation procedures.
Dry-fit the assembly first to confirm the branch orientation and street connection before applying solvent cement.
Apply compatible ABS solvent cement as required, fully seat the pipe into each hub and the spigot into the mating hub fitting, then maintain proper alignment while the joints set.
Allow completed joints to cure according to the solvent cement manufacturer's recommendations before placing the drainage or vent system into service.
Our piping specialists can help review your run size, branch size, street connection, fitting orientation, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV street sanitary tee used for?
It is used to create a sanitary branch connection in a non-pressure ABS drain, waste, or vent system while also providing a direct street-style connection.
What does SPG x HUB x HUB mean?
It means the fitting has one spigot connection and two hub connections.
What makes this a street sanitary tee?
The spigot end allows the fitting to connect directly into another compatible hub fitting without requiring an additional coupling.
What makes this a sanitary tee?
The branch uses a curved sanitary-pattern transition intended to guide flow into the main piping run more smoothly than an abrupt square intersection.
How many connections does this fitting have?
It has three connections: one spigot and two hubs.
Does this fitting require solvent cement?
Yes. The hub and spigot connections are intended for compatible ABS solvent-cement installation.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, vent, sewer, and general drainage applications.
Can it be used for compressed air or gas?
No. The supplied product information states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What should I verify before ordering?
Confirm all three connection sizes, the location of the spigot end, branch orientation, mating ABS DWV components, and intended non-pressure application.
Important Ordering & Installation Notes
- This listing is for an ABS DWV Street Sanitary Tee with SPG x HUB x HUB connections.
- Verify all three nominal connection sizes before ordering.
- One connection is a spigot end.
- Two connections are hub ends.
- The spigot end fits directly into a compatible ABS DWV hub fitting.
- The street-style connection can reduce the need for an additional coupling.
- Confirm branch and spigot orientation before installation.
- Dry-fit the complete assembly before applying solvent cement.
- This fitting is intended for non-pressure DWV, sewer, and general drainage applications.
- Do not use for transporting compressed air or gas.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for installation.
- Cut pipe square and remove burrs before assembly.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat each ABS pipe into its corresponding hub.
- Fully seat the spigot into the mating hub fitting.
- Maintain proper main-run and branch alignment during installation.
- Allow completed joints to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals, fire-stopping materials, thread sealants, and other aggressive agents that may damage ABS compounds.
- Consult manufacturer documentation for complete dimensions and installation requirements.
- Follow applicable plumbing codes and manufacturer installation recommendations.
