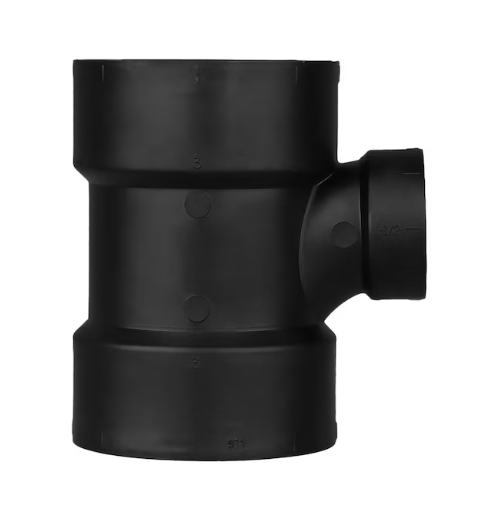

ABS DWV Reducing Sanitary Tee (HUB x HUB x HUB)
- SKU:
- LN401
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ABS DWV Reducing Sanitary Tee (HUB x HUB x HUB)
ABS DWV Reducing Sanitary Tees provide a smooth branch connection while transitioning between different pipe sizes in non-pressure drain, waste, and vent systems.
Featuring hub connections on all three ends, this fitting is designed to connect compatible ABS DWV piping while allowing a reduced-size branch or run connection within the system. The sanitary-pattern branch helps direct flow into the main line while supporting efficient drainage and minimizing abrupt transitions. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV reducing sanitary tee
- Hub x Hub x Hub connection configuration
- Three hub connections for compatible ABS DWV pipe
- Provides a branch connection while transitioning between pipe sizes
- Sanitary-pattern branch transition
- Designed for solvent-cement installation
- Useful where different nominal pipe sizes must be connected
- Suitable for drain, waste, and vent systems
- Suitable for sewer and general drainage applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV Reducing Sanitary Tee |
|---|---|
| Material | ABS |
| Connection Type | Hub x Hub x Hub |
| Configuration | Reducing Sanitary Tee |
| Number of Connections | 3 |
| Joint Method | Solvent Cement |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Provide a Sanitary Branch Connection While Transitioning Between Different ABS DWV Pipe Sizes |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Sanitary Drainage, Waste Lines, Vent Systems, Sewer, General Drainage, and Reduced-Size Branch Connections |
Connection Configuration
Main Run Connections
Two hub connections form the primary piping run and accept compatible ABS DWV pipe for solvent-cement installation.
Reducing Branch Connection
The third hub provides the branch connection and may be a different nominal size than the main run, depending on the specific fitting variation.

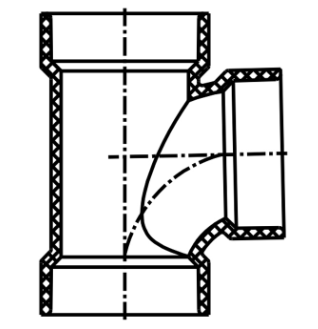

Reducing Sanitary Tee Design
The reducing sanitary tee combines a branch connection and pipe-size transition in one molded ABS fitting.
The sanitary-pattern branch uses a curved transition into the main run, helping guide drainage flow while reducing abrupt changes in direction.
The reducing configuration allows a smaller branch or differing run size to connect into the system without requiring a separate reducing fitting.
Why Choose an ABS DWV Reducing Sanitary Tee?
Combined Branch & Reduction
- Provides a dedicated branch connection
- Transitions between different pipe sizes
- Can reduce the need for separate reducers
- Three hub connections
- Sanitary-pattern flow transition
ABS DWV Benefits
- Lightweight construction
- Easy handling and installation
- Suitable for non-pressure drainage systems
- Compatible with ABS DWV piping systems
- Designed for long-term sanitary drainage service
Typical Applications
Drainage Systems
- Sanitary drain lines
- Waste piping
- General building drainage
- Sewer piping
- ABS DWV branch connections
Reducing Connections
- Reduced-size branch lines
- Different-size DWV connections
- Residential plumbing
- Commercial drainage systems
- ABS DWV system modifications
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify all three nominal hub sizes before installation and identify which connection or connections provide the size reduction.
Cut all mating ABS pipe ends square and remove burrs. Clean and prepare the pipe and hub surfaces according to accepted ABS solvent-cement installation procedures.
Dry-fit the complete assembly first to confirm branch orientation and proper connection of each pipe size.
Apply compatible ABS solvent cement as required and fully seat each pipe into its corresponding hub while maintaining correct run and branch alignment.
Allow completed joints to cure according to the solvent cement manufacturer's recommendations before placing the drainage or vent system into service.
Our piping specialists can help review your main run size, branch size, fitting orientation, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV reducing sanitary tee used for?
It is used to create a branch connection while transitioning between different pipe sizes in a non-pressure ABS drain, waste, or vent system.
What does HUB x HUB x HUB mean?
It means all three connections are hubs designed to accept compatible ABS DWV pipe for solvent-cement installation.
What makes this fitting reducing?
At least one of the hub connections is a different nominal size from another connection, allowing the fitting to transition between different pipe sizes.
What makes this a sanitary tee?
The branch uses a curved sanitary-pattern transition intended to guide flow into the main piping run more smoothly than an abrupt square intersection.
Which connection is reduced?
The reduced connection depends on the specific size configuration of the fitting. Verify the listed variation dimensions before ordering.
Does this fitting require solvent cement?
Yes. All three hub connections are intended for compatible ABS solvent-cement installation.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, vent, sewer, and general drainage applications.
Can it be used for compressed air or gas?
No. The supplied product information states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What should I verify before ordering?
Confirm all three hub sizes, which connection is reduced, the required branch orientation, mating ABS pipe sizes, and the intended non-pressure DWV application.
Important Ordering & Installation Notes
- This listing is for an ABS DWV Reducing Sanitary Tee with HUB x HUB x HUB connections.
- Verify all three nominal connection sizes before ordering.
- At least one connection differs in size from another connection.
- Confirm which hub provides the reduced-size connection.
- Two hubs form the main piping run.
- The third hub forms the branch connection.
- Confirm branch orientation before installation.
- Dry-fit the complete assembly before applying solvent cement.
- This fitting is intended for non-pressure DWV, sewer, and general drainage applications.
- Do not use for transporting compressed air or gas.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for installation.
- Cut pipe square and remove burrs before assembly.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat each ABS pipe into its corresponding hub.
- Maintain proper main-run and branch alignment during installation.
- Allow completed joints to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals, fire-stopping materials, thread sealants, and other aggressive agents that may damage ABS compounds.
- Consult manufacturer documentation for complete dimensions and available reducing configurations.
- Follow applicable plumbing codes and manufacturer installation recommendations.
