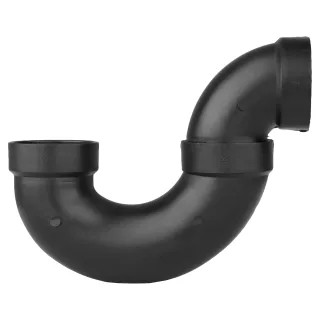

ABS DWV P-Trap (HUB x HUB)
- SKU:
- LN706X
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ABS DWV P-Trap (HUB x HUB)
ABS DWV P-Traps create a water seal within a drainage line to help prevent sewer gases from entering occupied spaces while allowing wastewater to flow through the system.
Featuring hub connections on both ends, this fitting is designed for use in non-pressure ABS drain, waste, and vent systems. The curved trap body retains a small amount of water after drainage, forming a seal between the fixture side and the sanitary drainage system. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV P-trap
- Hub x Hub connection configuration
- Creates a water seal in the drainage line
- Helps block sewer gases from entering occupied spaces
- Designed for fixture drainage applications
- Supports efficient wastewater flow
- Hub connections accept compatible ABS DWV pipe
- Designed for solvent-cement installation
- Suitable for drain, waste, and vent systems
- Suitable for sanitary drainage applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV P-Trap |
|---|---|
| Material | ABS |
| Connection Type | Hub x Hub |
| Configuration | P-Trap |
| Joint Method | Solvent Cement |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Create a Water Seal Between a Fixture Drain and the DWV System |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Sinks, Lavatories, Fixture Drains, Sanitary Drainage, Residential Plumbing, and Commercial Plumbing |
Connection Configuration
Fixture-Side Hub
One hub connection accepts compatible ABS DWV pipe or an appropriate connecting section from the fixture drain side.
Drain-Side Hub
The opposite hub connects the trap outlet to compatible ABS DWV piping leading into the sanitary drainage system.
P-Trap Design
The curved P-trap body is designed to retain water after wastewater passes through the fitting.
This retained water forms the trap seal, helping prevent sewer gases from traveling backward through the drainage system and entering the occupied space through the fixture opening.
Proper trap installation, venting, orientation, and trap-seal protection are important to reliable DWV system performance.
Why Choose an ABS DWV P-Trap?
Trap Seal Protection
- Creates a water barrier in the drain line
- Helps block sewer gases
- Supports sanitary fixture drainage
- Provides a permanent DWV trap connection
- Designed for common fixture-drain layouts
ABS DWV Benefits
- Lightweight construction
- Easy handling and installation
- Suitable for non-pressure drainage systems
- Compatible with ABS DWV piping systems
- Designed for long-term sanitary drainage service
Typical Applications
Fixture Drainage
- Sinks
- Lavatories
- Utility fixtures
- Residential fixture drains
- Commercial fixture drains
DWV Systems
- Sanitary drain lines
- Waste piping
- Fixture branch piping
- Residential plumbing
- Commercial plumbing
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify both nominal hub sizes before installation and confirm that the trap configuration is appropriate for the intended fixture and DWV piping layout.
Cut all mating ABS pipe ends square and remove burrs. Clean and prepare the pipe and hub surfaces according to accepted ABS solvent-cement installation procedures.
Dry-fit the trap and adjoining piping before applying solvent cement to confirm proper orientation, alignment, and trap positioning.
Apply compatible ABS solvent cement as required and fully seat each pipe into its corresponding hub while maintaining correct alignment.
Allow completed joints to cure according to the solvent cement manufacturer's recommendations before placing the drainage system into service.
Our piping specialists can help review your trap size, fixture connection, drain layout, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV P-trap used for?
It is used in a fixture drainage line to create a water seal that helps prevent sewer gases from entering the occupied space.
What does HUB x HUB mean?
It means both ends are hub-style connections designed to accept compatible ABS DWV pipe.
How does a P-trap block sewer gases?
The curved trap body retains water after drainage. This standing water forms a seal between the fixture opening and the sanitary drainage system.
Does a P-trap need to remain filled with water?
Yes. The water retained in the trap provides the barrier that helps prevent sewer gases from passing through the fixture drain.
Does this fitting require solvent cement?
Yes. The hub connections are intended for compatible ABS solvent-cement installation.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, and vent applications.
Can it be used for compressed air or gas?
No. The supplied product information states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What is the maximum operating temperature?
The supplied product information specifies applications where operating temperatures do not exceed 140°F.
What should I verify before ordering?
Confirm both nominal hub sizes, fixture-drain size, mating ABS DWV pipe size, trap configuration, and intended non-pressure application.
Important Ordering & Installation Notes
- This listing is for an ABS DWV P-Trap with HUB x HUB connections.
- Verify both nominal hub sizes before ordering.
- Confirm the trap size matches the intended fixture drain and ABS DWV piping.
- The fitting is designed to retain water and form a trap seal.
- Proper venting and trap configuration are important to DWV system performance.
- Both connections are hub-style connections.
- Both hubs accept compatible ABS DWV pipe.
- Confirm trap orientation before installation.
- Dry-fit the complete assembly before applying solvent cement.
- This fitting is intended for non-pressure drain, waste, and vent applications.
- Do not use for transporting compressed air or gas.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for installation.
- Cut pipe square and remove burrs before assembly.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat each ABS pipe into its corresponding hub.
- Maintain proper trap and drainage alignment while the solvent-cement joints set.
- Allow completed joints to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals, fire-stopping materials, thread sealants, and other aggressive agents that may damage ABS compounds.
- Consult manufacturer documentation for complete dimensions and installation requirements.
- Follow applicable plumbing codes and manufacturer installation recommendations.
