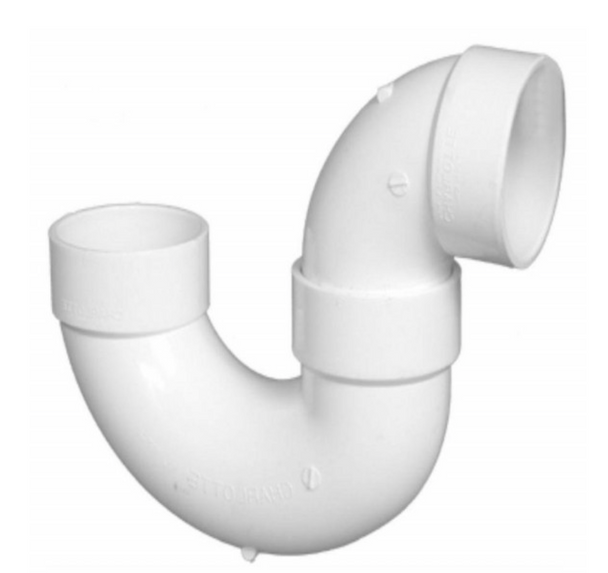

PVC DWV P-Trap Low Profile (HUB x HUB)
- SKU:
- LP710
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
PVC DWV P-Trap Low Profile (HUB x HUB)
PVC DWV P-Trap Low Profile (HUB x HUB) provides a compact trap configuration for compatible PVC drain, waste, and vent piping where installation height or available clearance is limited. The Hub x Hub design receives compatible PVC DWV pipe at both ends while the trap body maintains the water-seal configuration used in fixture drainage systems.
The low-profile P-trap configuration is designed to reduce the overall installation height compared with taller trap arrangements, helping accommodate tight drainage spaces while maintaining a dedicated trap section in the DWV piping layout. LESSO offers this fitting in multiple nominal sizes, making pipe size, available clearance, fixture location, trap orientation, and adjoining DWV connections important selection considerations.
Product Highlights
- PVC construction
- Hub x Hub design
- Low-profile configuration
- DWV P-trap fitting
- Designed for tight spaces
- Provides a fixture drain trap connection
- Maintains a water-seal section in the drain line
- Available in multiple sizes for compatible PVC DWV systems
Technical Specifications
| Product Type | Low Profile P-Trap |
|---|---|
| Manufacturer | LESSO America |
| Material | PVC |
| System Type | Drain, Waste & Vent (DWV) |
| Connection | Hub x Hub |
| Fitting Configuration | Low Profile P-Trap |
| Available Sizes | 1-1/2", 2", 3", 4", 6" |
| Part Number - 1-1/2" | LP710-015 |
| Part Number - 2" | LP710-020 |
| Part Number - 3" | LP710-030 |
| Part Number - 4" | LP710-040 |
| Part Number - 6" | LP710-060 |
| Primary Function | Provide a Compact Trap Connection within Compatible PVC DWV Piping |
Connection Configuration
The inlet receiving hub accepts appropriately sized compatible PVC DWV pipe from the fixture-side drainage connection.
The compact curved body forms the trap section while minimizing overall installation height where clearance is limited.
The outlet receiving hub connects the trap to compatible downstream PVC DWV piping within the drainage system.
Low Profile P-Trap Design
The low-profile P-trap combines two receiving hub connections with a compact curved trap body in one molded PVC DWV fitting.
The reduced-height configuration is designed for installations where available vertical space is limited, allowing the trap to fit into tighter drainage layouts while preserving the required trap section between the fixture and downstream drain piping.
Because the trap body and both hub connections are molded into one fitting, the assembly provides a simple fixed configuration without requiring multiple fittings to create the basic trap geometry.
Why Choose a PVC DWV Low Profile P-Trap?
- Low-profile body
- Fits tighter spaces
- Reduces overall trap height
- Supports compact fixture layouts
- Combines the trap geometry in one fitting
- Two receiving hubs
- Connects compatible PVC DWV pipe
- Provides a fixed trap arrangement
- Supports solvent-cement installation
- Available across multiple nominal sizes
Typical Applications
- Sink drainage
- Fixture waste piping
- Commercial drainage systems
- Utility and service fixtures
- Installations with limited vertical clearance
- Sanitary drainage
- Gravity-flow piping
- Non-pressure DWV systems
- Compatible PVC waste piping
- Residential and commercial drainage layouts
Standards & Compliance
- NSF/ANSI 61 – Listed by LESSO among the referential standards for this P-trap product family.
- NSF/ANSI 14 – Listed for plastics piping system components and related materials.
- ASTM D1784 – Listed for rigid PVC compounds used in the fitting material.
- ASTM D2466 – Listed by LESSO for Schedule 40 PVC plastic pipe fittings.
Refer to the Lesso Product Catalog and PVC Schedule 40 & DWV Technical Manual for the exact standards, certifications, listings, dimensions, and installation requirements applicable to the selected P-trap size. :contentReference[oaicite:1]{index=1}
Construction Details
The fitting is manufactured from PVC and incorporates two receiving hub connections together with a compact molded P-trap body.
The low-profile geometry reduces the vertical envelope of the trap assembly compared with taller configurations, helping it fit where clearance beneath or around the fixture is restricted.
The molded Hub x Hub construction provides a fixed connection arrangement for compatible PVC DWV pipe and eliminates the need to assemble the basic trap curve from multiple separate directional fittings.
Installation & Selection Considerations
- Confirm the required nominal size.
- Verify available installation clearance.
- Check PVC DWV system compatibility.
- Confirm the required Hub x Hub orientation.
- Match both connections to the planned drainage layout.
Review the Lesso Product Catalog and PVC Schedule 40 & DWV Technical Manual for additional product information, available sizes, connection details, standards, and technical information for compatible PVC DWV systems.
Need Help Selecting a PVC DWV Low Profile P-Trap?
Our GetPipe.com team can help review the required nominal size, Hub x Hub connection, available installation clearance, fixture drainage layout, PVC DWV compatibility, adjoining piping, and installation requirements before you order.
Frequently Asked Questions
What is a PVC DWV Low Profile P-Trap used for?
It provides a compact trap connection within compatible PVC drain, waste, and vent piping where installation height or available clearance is limited.
What sizes are available?
LESSO lists 1-1/2", 2", 3", 4", and 6" sizes for this low-profile Hub x Hub P-trap. :contentReference[oaicite:2]{index=2}
What are the LESSO part numbers?
The listed part numbers are LP710-015, LP710-020, LP710-030, LP710-040, and LP710-060 for the respective 1-1/2", 2", 3", 4", and 6" sizes. :contentReference[oaicite:3]{index=3}
What does HUB x HUB mean?
It means both ends of the fitting use receiving hub connections for appropriately sized compatible PVC DWV pipe.
Why is this called a low-profile P-trap?
The trap body is configured to reduce the overall installation height, making it useful where a conventional taller arrangement may not fit comfortably.
What is the purpose of a P-trap?
The curved trap section maintains a water seal that helps isolate the fixture drain from sewer gases within the drainage system.
Why should installation clearance be checked before ordering?
The primary advantage of the low-profile design is its compact height, so the available space and adjoining pipe positions should be verified before installation.
What should I confirm before ordering?
Confirm the required size, Hub x Hub connection, PVC DWV compatibility, fixture location, available clearance, adjoining piping, and applicable plumbing requirements.
Important Ordering & Installation Notes
- Inspect both hubs before use.
- Confirm the required trap size.
- Verify available clearance before joining.
- Position the trap before solvent cementing.
- Support adjoining DWV piping after installation.
