ABS DWV P-Trap W/ Union Joint (HUB x HUB)
- SKU:
- LN708P
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

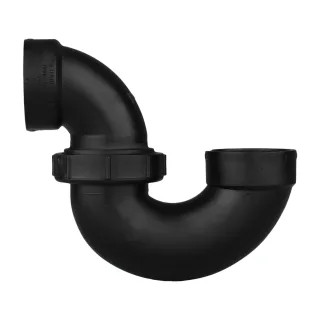

ABS DWV P-Trap W/ Union Joint (HUB x HUB)
ABS DWV P-Traps with Union Joint create a water seal to help prevent sewer gases from entering occupied spaces while providing a removable connection for easier cleaning and maintenance.
Featuring hub connections on both ends and a built-in union joint, this fitting is designed for non-pressure ABS drain, waste, and vent systems. The curved trap body retains water to form the trap seal, while the union joint allows the trap assembly to be disconnected without cutting the adjoining piping. This can simplify installation, inspection, cleaning, and future maintenance. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV P-trap with union joint
- Hub x Hub connection configuration
- Built-in removable union connection
- Creates a water seal in the drainage line
- Helps prevent sewer gases from entering occupied spaces
- Allows trap removal without cutting adjoining pipe
- Simplifies cleaning, inspection, and maintenance
- Supports efficient wastewater drainage
- Hub connections accept compatible ABS DWV pipe
- Designed for solvent-cement installation at hub connections
- Suitable for drain, waste, and vent systems
- Suitable for sanitary drainage applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV P-Trap with Union Joint |
|---|---|
| Material | ABS |
| Connection Type | Hub x Hub |
| Configuration | P-Trap with Built-In Union Joint |
| Joint Method | Solvent Cement at Hub Connections; Removable Union Joint |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Create a Trap Seal with Removable Service Access |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Sinks, Lavatories, Fixture Drains, Sanitary Drainage, Residential Plumbing, Commercial Plumbing, and Serviceable Trap Installations |
Connection Configuration
Hub Inlet & Outlet
The two hub connections accept compatible ABS DWV pipe and are designed for solvent-cement installation.
Built-In Union Joint
The union joint allows the trap assembly to be disconnected from the piping system for cleaning, inspection, or maintenance without cutting the pipe.
P-Trap & Union Design
The curved P-trap body retains a small amount of water after drainage, forming a trap seal between the fixture and sanitary drainage system.
This water barrier helps prevent sewer gases from traveling backward through the drainage line into occupied areas.
The integrated union joint adds serviceability by allowing the trap to be removed and reinstalled when access is required.
Why Choose an ABS DWV P-Trap with Union Joint?
Trap Seal Protection
- Creates a water barrier in the drain line
- Helps block sewer gases
- Supports sanitary fixture drainage
- Designed for common fixture-drain layouts
- Maintains proper DWV trap function
Serviceable Union Connection
- Trap can be disconnected without cutting pipe
- Simplifies cleaning and inspection
- Useful for future maintenance
- Allows easier trap replacement if required
- Reduces disruption to adjoining piping
Typical Applications
Fixture Drainage
- Sinks
- Lavatories
- Utility fixtures
- Residential fixture drains
- Commercial fixture drains
Serviceable DWV Installations
- Sanitary drain lines
- Waste piping
- Fixture branch piping
- Locations requiring removable trap access
- Residential and commercial plumbing
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify both nominal hub sizes and confirm that the P-trap configuration is appropriate for the intended fixture and DWV piping layout.
Position the union joint so it remains accessible after installation and sufficient clearance is available for loosening, removal, and reassembly.
Cut all mating ABS pipe ends square and remove burrs. Clean and prepare the pipe and hub surfaces according to accepted ABS solvent-cement installation procedures.
Dry-fit the trap and adjoining piping before applying solvent cement to confirm proper orientation, trap positioning, and access to the union joint.
Apply compatible ABS solvent cement as required and fully seat each pipe into its corresponding hub while maintaining correct alignment.
Assemble and tighten the union joint according to the manufacturer's instructions. Allow completed solvent-cement joints to cure before placing the drainage system into service.
Our piping specialists can help review your trap size, fixture connection, union access, drain layout, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV P-trap with union joint used for?
It creates a water seal in a fixture drain while providing a removable union connection that makes the trap easier to disconnect for cleaning or maintenance.
What does HUB x HUB mean?
It means both pipe connections are hub-style connections designed to accept compatible ABS DWV pipe.
What is the purpose of the union joint?
The union joint allows the trap assembly to be disconnected and removed without cutting the adjoining ABS piping.
How does the P-trap help block sewer gases?
The curved trap body retains water after drainage, creating a seal between the fixture and sanitary drainage system.
Can the trap be removed for cleaning?
Yes. The supplied product description identifies a built-in union joint intended to simplify removal, cleaning, and maintenance.
Should the union joint remain accessible?
Yes. Install the trap so there is sufficient clearance to loosen and remove the union connection when future service is required.
Does this fitting require solvent cement?
Yes. The hub connections are intended for compatible ABS solvent-cement installation. The union joint remains removable.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, and vent applications.
Can it be used for compressed air or gas?
No. The supplied product information states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What is the maximum operating temperature?
The supplied product information specifies applications where operating temperatures do not exceed 140°F.
What should I verify before ordering?
Confirm both hub sizes, fixture-drain size, trap configuration, union-joint access, mating ABS DWV pipe size, and intended non-pressure application.
Important Ordering & Installation Notes
- This listing is for an ABS DWV P-Trap with Union Joint and HUB x HUB connections.
- Verify both nominal hub sizes before ordering.
- The fitting includes a built-in removable union joint.
- Confirm the trap size matches the intended fixture drain and ABS DWV piping.
- The curved trap body is designed to retain water and form a trap seal.
- Position the union so it remains accessible after installation.
- Provide sufficient clearance for future union loosening and trap removal.
- Both pipe connections are hub-style connections.
- Both hubs accept compatible ABS DWV pipe.
- Confirm trap orientation before installation.
- Dry-fit the complete assembly before applying solvent cement.
- This fitting is intended for non-pressure drain, waste, and vent applications.
- Do not use for transporting compressed air or gas.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for hub installation.
- Cut pipe square and remove burrs before assembly.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat each ABS pipe into its corresponding hub.
- Assemble and tighten the union joint according to manufacturer recommendations.
- Do not solvent-cement the removable union connection unless specifically directed by the manufacturer.
- Maintain proper trap and drainage alignment while the solvent-cement joints set.
- Allow completed joints to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals, fire-stopping materials, thread sealants, and other aggressive agents that may damage ABS compounds.
- Consult manufacturer documentation for complete dimensions and installation requirements.
- Follow applicable plumbing codes and manufacturer installation recommendations.
