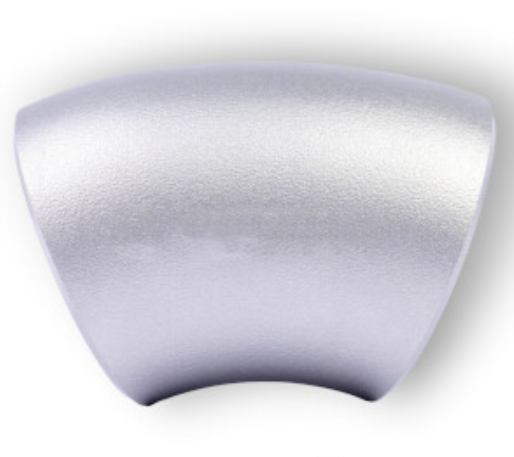

304 Stainless Steel 45 Degree Butt Weld Elbow - Sch 10

304/L stainless steel Schedule 10S 45° butt weld elbows provide a smooth directional change in piping systems while maintaining consistent flow characteristics. Manufactured from A/SA403 WP304/L stainless steel, these fittings offer excellent corrosion resistance, weldability, and durability for sanitary, commercial, industrial, and process piping applications.

Produced to ASME B16.9 dimensional standards, these long radius butt weld elbows are available in sizes from 1 inch through 12 inches to match Schedule 10S stainless steel pipe.

Key Features

• 45° long radius butt weld elbow
• Manufactured from A/SA403 WP304/L stainless steel
• Designed for Schedule 10S stainless steel pipe
• ASME B16.9 dimensional standard
• Excellent corrosion resistance and weldability
• Smooth interior for efficient flow characteristics
• Available in sizes from 1" through 12"
• Suitable for sanitary, commercial, industrial, and process piping systems

Construction Details

Manufactured from dual-certified 304/L stainless steel to provide excellent corrosion resistance and dependable weld performance.

Long radius design minimizes pressure loss while providing a gradual 45-degree change in flow direction.

Precision formed to ASME B16.9 dimensions for compatibility with standard Schedule 10S stainless steel piping systems.

Important Notes

Designed for butt weld installation by qualified personnel using accepted welding practices.

Compatible with Schedule 10S stainless steel pipe of the corresponding nominal size.

Verify material grade, pipe schedule, and application requirements before installation.
