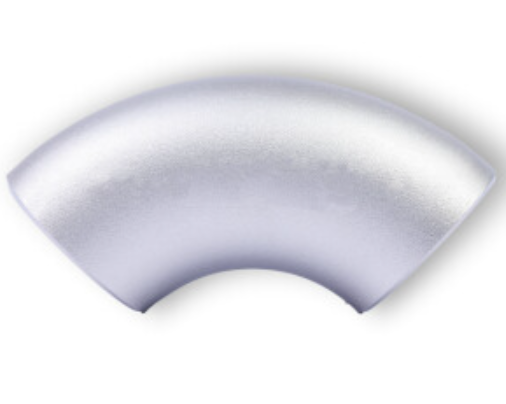

304 Stainless Steel Long Radius 90 Degree Butt Weld Elbow - Sch 10

304/L stainless steel long radius 90° butt weld elbows provide a smooth directional change in piping systems while minimizing flow resistance and pressure loss. Manufactured from ASTM A/SA403 WP304/L stainless steel, these fittings deliver excellent corrosion resistance, durability, and dependable weldability.

Designed for Schedule 10S stainless steel pipe, these ASME B16.9 fittings feature a long radius centerline for improved flow characteristics and reduced turbulence in commercial, industrial, and process piping applications.

Key Features

• 90° long radius butt weld elbow
• ASTM A/SA403 WP304/L stainless steel construction
• Designed for Schedule 10S stainless steel pipe
• Manufactured to ASME B16.9 dimensional standards
• Long radius design reduces pressure loss and turbulence
• Excellent corrosion resistance and weldability
• Suitable for sanitary, industrial, and process piping systems
• Available in sizes from 1/2 inch through 12 inches

Construction Details

Manufactured from wrought ASTM A/SA403 WP304/L stainless steel for excellent mechanical strength, corrosion resistance, and long service life.

The long radius configuration provides a centerline radius equal to 1.5 times the nominal pipe size, promoting smoother flow and reducing erosion compared to short radius elbows.

Precision formed and beveled ends provide consistent fit-up for full-penetration butt weld installations.

Important Notes

Compatible with Schedule 10S stainless steel pipe using standard butt weld installation practices.

Dimensions conform to ASME B16.9 requirements.

Verify pipe schedule, material grade, and installation requirements before ordering.
