Dixon

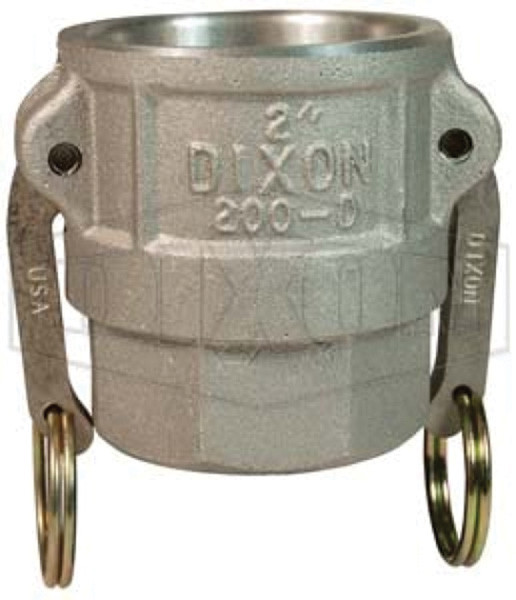

2" Type D Cam & Groove Coupler x Female NPT Aluminum Camlock Fitting

(No reviews yet) Write a Review
SKU:
NLDIX200-D-AL
Availability:
Limited quantity available.
Weight:
0.90 LBS
*Images are for visual reference only.
  • 2" Type D Cam & Groove Coupler x Female NPT Aluminum Camlock Fitting
  • Dixon Logo
$30.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

Dixon 200-D-AL 2" Type D Cam & Groove Coupler x Female NPT Aluminum Camlock Fitting

The Dixon 200-D-AL 2" Type D Cam & Groove Coupler combines a female camlock connection with a female NPT threaded connection for compatible liquid transfer systems.

Manufactured from durable 356T6 aluminum, the 200-D-AL provides a lightweight yet strong fitting for compatible fluid handling applications. Precision-machined construction supports reliable sealing and interchangeability with standard cam and groove fittings, while stainless steel cam arm pins provide corrosion resistance for demanding industrial environments.

Product Highlights

  • Dixon 2" Type D cam and groove coupler
  • Manufacturer part number: 200-D-AL
  • Female camlock coupler x female NPT thread
  • 2" nominal size with 2" NPT thread
  • 356T6 aluminum construction
  • Buna-N / nitrile rubber seal
  • Stainless steel cam arm pins
  • Maximum working pressure: 250 PSI
  • Precision-machined construction
  • Interchange standard: A-A-59326D
  • Compatible with Type A, Type E, Type F, and Type DP cam and groove adapters
  • Package quantity: 1 each
  • Designed for liquid service
  • Not for compressed air or steam service

Technical Specifications

Brand Dixon Valve & Coupling
Manufacturer Part Number 200-D-AL
Alternate SKUs 200DAL, DIX200-D-AL, NLDIX200-D-AL
Product Type Cam & Groove Coupler
Fitting Type Type D
Nominal Size 2"
Connection 1 Female Camlock Coupler
Connection 2 Female NPT Thread
NPT Thread Size 2"
Material 356T6 Aluminum
Seal Material Buna-N / Nitrile Rubber
Cam Arm Pins Stainless Steel
Maximum Working Pressure 250 PSI
Interchange Standard A-A-59326D
Package Quantity 1 Each
Intended Service Liquid Service
Service Restriction Not for Compressed Air or Steam Service

Type D Connection Configuration

Female Cam & Groove Coupler

One end features a 2" female camlock coupler for fast connection and disconnection with compatible male cam and groove adapters.

Female NPT Connection

The opposite end features a 2" female NPT threaded connection for connection to compatible pipe, hose assemblies, adapters, and equipment with matching male NPT threads.

356T6 Aluminum Construction

The Dixon 200-D-AL is manufactured from 356T6 aluminum, providing a combination of strength, reduced weight, and corrosion resistance for compatible fluid handling systems.

Buna-N / Nitrile Rubber Seal

The female camlock coupler incorporates a Buna-N / nitrile rubber seal to support dependable sealing with a compatible male cam and groove adapter. Verify fluid compatibility with the seal material before installation.

Stainless Steel Cam Arm Pins

The 200-D-AL features stainless steel cam arm pins for corrosion resistance and dependable performance within the camlock coupling assembly.

Precision-Machined Construction

The fitting features precision-machined construction to support reliable sealing and interchangeability with compatible standard cam and groove fittings.

Compatible Cam & Groove Adapters

The female camlock coupler end is designed for connection with compatible Type A, Type E, Type F, and Type DP cam and groove adapters.

Maximum Working Pressure

250 PSI

The supplied product information lists a maximum working pressure of 250 PSI. Always confirm the pressure rating of the mating adapter, seal, threaded component, and all other system components before installation.

A-A-59326D Interchange

The Dixon 200-D-AL is identified with an A-A-59326D interchange standard for compatible cam and groove components.

Liquid Transfer Service

The 200-D-AL is intended for liquid service in compatible fluid handling systems. Verify fluid compatibility with the aluminum construction and Buna-N seal before installation.

Service Restrictions

Cam and groove couplings are intended for liquid service and should not be used for compressed air or steam service. Always confirm pressure rating, thread compatibility, fluid compatibility, and gasket suitability for the intended application.

Willy knows his Dixon Type D aluminum cam and groove couplers
Ask Willy: Have a Question About the Dixon 200-D-AL?

Our specialists can help with camlock compatibility, female NPT connections, Buna-N seal compatibility, pressure requirements, aluminum fitting selection, and selecting compatible Type A, E, F, or DP adapters.

Email the GetPipe.com Team Visit Quick Support

Frequently Asked Questions

What is the Dixon 200-D-AL?

The 200-D-AL is a 2" Type D aluminum cam and groove coupler featuring a female camlock coupler on one end and a female NPT threaded connection on the other.

What connections does the 200-D-AL have?

The fitting combines a 2" female camlock coupler with a 2" female NPT threaded connection.

What material is the 200-D-AL made from?

The fitting is manufactured from 356T6 aluminum.

What seal material does the 200-D-AL use?

The supplied product information identifies a Buna-N / nitrile rubber seal.

What material are the cam arm pins?

The supplied product information identifies the cam arm pins as stainless steel.

What is the maximum working pressure?

The supplied product information lists a maximum working pressure of 250 PSI.

Which camlock adapter types are compatible with the female coupler end?

The supplied product information identifies compatible Type A, Type E, Type F, and Type DP cam and groove adapters.

What interchange standard is listed for the 200-D-AL?

The supplied product information lists A-A-59326D as the interchange standard.

How many couplers are included?

The supplied product information lists a package quantity of 1 each.

Can the 200-D-AL be used for compressed air or steam?

No. The supplied product information states that cam and groove couplings should not be used for compressed air or steam service.

Important Ordering & Product Notes

  • This listing covers the Dixon 200-D-AL 2" Type D Cam & Groove Coupler x Female NPT Aluminum Camlock Fitting.
  • Manufacturer part number: 200-D-AL.
  • Alternate SKUs: 200DAL, DIX200-D-AL, NLDIX200-D-AL.
  • Nominal size is 2".
  • Connection configuration is female camlock coupler x female NPT thread.
  • Female NPT thread size is 2".
  • Construction material is 356T6 aluminum.
  • Seal material is Buna-N / nitrile rubber.
  • Cam arm pins are stainless steel.
  • Maximum working pressure is listed as 250 PSI.
  • Interchange standard is A-A-59326D.
  • Package quantity is 1 each.
  • Verify fluid compatibility with the aluminum construction and Buna-N seal before installation.
  • Confirm pressure rating, thread compatibility, and gasket suitability for the intended application.
  • Do not use cam and groove couplings for compressed air or steam service.
