Dixon

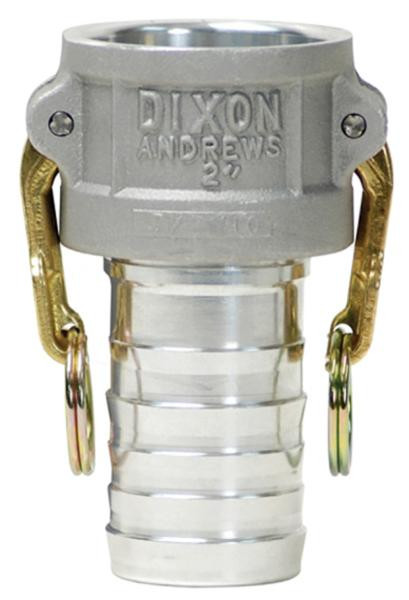

2" Type C Cam & Groove Coupler x Hose Shank Aluminum
- SKU:
- NLDIX200-C-AL
- Availability:
- Limited quantity available.
- Weight:
- 1.10 LBS
Description
Dixon 200-C-AL 2" Type C Cam & Groove Coupler x Hose Shank Aluminum
The Dixon 200-C-AL 2" Type C Cam & Groove Coupler is designed for fast, secure hose connections in compatible industrial liquid transfer systems.
Manufactured from durable 356T6 aluminum, this fitting features a female camlock coupler on one end and a hose shank connection on the other. Precision-machined construction, stainless steel cam arm pins, and a nitrile Buna-N rubber seal support dependable fit and sealing with compatible cam and groove components.
Product Highlights
- Dixon 2" Type C cam and groove coupler
- Manufacturer part number: 200-C-AL
- Female camlock coupler x hose shank configuration
- 356T6 aluminum construction
- Nitrile Buna-N rubber seal
- Stainless steel cam arm pins
- Maximum operating pressure: 250 PSI
- Precision machined for reliable fit and sealing
- Produced to Commercial Item Description A-A-59326 standards
- Designed for liquid service applications
- Package quantity: 1 each
- Not for compressed air or steam service
Technical Specifications
| Brand | Dixon Valve & Coupling |
|---|---|
| Manufacturer Part Number | 200-C-AL |
| Alternate SKUs | 200CAL, DIX200-C-AL, NLDIX200-C-AL |
| Product Type | Cam & Groove Coupler |
| Fitting Type | Type C |
| Nominal Size | 2" |
| Connection 1 | Female Camlock Coupler |
| Connection 2 | Hose Shank |
| Material | 356T6 Aluminum |
| Seal Material | Nitrile Buna-N Rubber |
| Cam Arm Pins | Stainless Steel |
| Maximum Operating Pressure | 250 PSI |
| Commercial Item Description | A-A-59326 |
| Package Quantity | 1 Each |
| Intended Service | Liquid Service Applications |
| Service Restriction | Not for Compressed Air or Steam Service |
Type C Connection Configuration
Female Camlock Coupler
One end features a 2" female camlock coupler designed for connection to a compatible male cam and groove adapter.
Hose Shank
The opposite end features a hose shank connection for integration with a compatible hose assembly.
356T6 Aluminum Construction
The Dixon 200-C-AL is manufactured from durable 356T6 aluminum for use in compatible industrial liquid transfer systems.
Nitrile Buna-N Rubber Seal
The female camlock coupler uses a nitrile Buna-N rubber seal to support dependable sealing when connected to a compatible male cam and groove adapter. Verify seal compatibility with the fluid being transferred before use.
Stainless Steel Cam Arm Pins
The 200-C-AL features stainless steel cam arm pins as part of its female camlock coupling assembly.
Precision-Machined Construction
The fitting is precision machined to support reliable fit and sealing with compatible standard cam and groove adapters.
Maximum Operating Pressure
250 PSI
The supplied product information lists a maximum operating pressure of 250 PSI. Verify the pressure ratings of the hose, mating adapter, seal, and all other system components before installation.
A-A-59326 Standard
The Dixon 200-C-AL is produced to Commercial Item Description A-A-59326 standards.
Liquid Transfer Service
The 200-C-AL is intended for liquid service applications requiring a female cam and groove connection with a hose shank. Verify hose compatibility, pressure rating, and chemical suitability before installation.
Service Restrictions
Under no circumstances should cam and groove couplings be used for compressed air or steam service. Confirm hose compatibility, seal compatibility, pressure requirements, and chemical suitability before use.
Our specialists can help with camlock compatibility, hose connections, Buna-N seal compatibility, pressure requirements, aluminum fitting selection, and application questions for the Dixon 200-C-AL.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 200-C-AL?
The 200-C-AL is a 2" Type C aluminum cam and groove coupler featuring a female camlock coupler on one end and a hose shank connection on the other.
What connections does the 200-C-AL have?
The fitting combines a 2" female camlock coupler with a hose shank connection.
What material is the 200-C-AL made from?
The fitting is manufactured from 356T6 aluminum.
What seal material does the 200-C-AL use?
The supplied product information identifies the seal as nitrile Buna-N rubber.
What material are the cam arm pins?
The supplied product information identifies the cam arm pins as stainless steel.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of 250 PSI.
Is the 200-C-AL precision machined?
Yes. The supplied product information states that the fitting is precision machined for reliable fit and sealing.
What standard is the 200-C-AL produced to?
The supplied product information states that the fitting is produced to Commercial Item Description A-A-59326 standards.
What type of service is the 200-C-AL intended for?
The supplied product information identifies the fitting for liquid service applications.
Can the 200-C-AL be used for compressed air or steam?
No. The supplied product information states that cam and groove couplings should not be used for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon 200-C-AL 2" Type C Cam & Groove Coupler x Hose Shank Aluminum.
- Manufacturer part number: 200-C-AL.
- Alternate SKUs: 200CAL, DIX200-C-AL, NLDIX200-C-AL.
- Nominal size is 2".
- Connection configuration is female camlock coupler x hose shank.
- Construction material is 356T6 aluminum.
- Seal material is nitrile Buna-N rubber.
- Cam arm pins are stainless steel.
- Maximum operating pressure is listed as 250 PSI.
- Produced to Commercial Item Description A-A-59326 standards.
- Package quantity is 1 each.
- Intended for liquid service applications.
- Verify hose compatibility, pressure rating, seal compatibility, and chemical suitability before installation.
- Do not use cam and groove couplings for compressed air or steam service.
