Dixon
2-1/2" Type C Cam & Groove Coupler Hose Shank
- SKU:
- NLDIX250-C-SS
- Availability:
- Limited quantity available.
- Weight:
- 4.00 LBS
Description

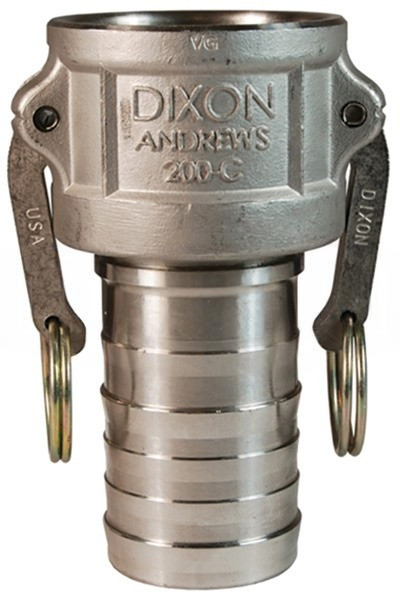

Dixon 2-1/2" Type C Stainless Steel Cam & Groove Coupler x Hose Shank
The Dixon 2-1/2" Type C Cam & Groove Coupler is a premium 316 stainless steel fitting designed for secure and efficient liquid transfer connections in demanding industrial hose systems.
Featuring a female cam and groove coupler on one end and a hose shank connection on the other, this Type C fitting provides a dependable quick-connect solution for compatible hose assemblies. Its corrosion-resistant 316 stainless steel body, Buna-N gasket, stainless steel cam arm pins, and long hose shank design support reliable performance in harsh fluid handling environments.
Product Highlights
- 2-1/2" Type C cam and groove coupler
- Female camlock coupler x hose shank connection
- 316 stainless steel construction
- Buna-N nitrile gasket for dependable sealing
- Maximum working pressure: 150 PSI
- Precision machined to tight tolerances
- Stainless steel cam arm pins help resist rust and binding
- Long hose shank design helps reduce hose damage
- Interchanges with standard cam and groove fittings made to A-A-59326 specifications
- Designed for liquid transfer applications
Technical Specifications
| Brand | Dixon |
|---|---|
| Product Type | Cam & Groove Coupler x Hose Shank |
| Fitting Type | Type C |
| Nominal Size | 2-1/2" |
| Connection 1 | Female Cam & Groove Coupler |
| Connection 2 | Hose Shank |
| Body Material | 316 Stainless Steel |
| Gasket Material | Buna-N Nitrile Rubber |
| Cam Arm Pins | Stainless Steel |
| Hose Shank | Long Hose Shank Design |
| Construction | Precision Machined |
| Maximum Working Pressure | 150 PSI |
| Interchange Standard | A-A-59326 |
| Intended Service | Liquid Transfer Applications |
Type C Connection Configuration
Female Cam & Groove Coupler
One end features a 2-1/2" female cam and groove coupler designed for fast connection and disconnection with a compatible male camlock adapter without requiring special tools.
Hose Shank Connection
The opposite end features a hose shank connection designed for secure attachment to a compatible hose assembly.
316 Stainless Steel Construction
The coupler body is manufactured from 316 stainless steel for excellent corrosion resistance and durability in demanding fluid handling environments.
The supplied product information identifies chemical processing, petroleum, agricultural, industrial, and water transfer service as applications for this stainless steel construction.
Buna-N Nitrile Gasket
A Buna-N nitrile gasket provides the sealing surface within the female cam and groove coupler, helping maintain a dependable connection with compatible male adapters.
Verify gasket compatibility with the specific fluid and operating conditions before installation.
Long Hose Shank Design
The fitting incorporates a long hose shank design intended to help reduce hose damage while providing a secure hose connection in compatible assemblies.
Stainless Steel Cam Arm Pins
The cam arms use stainless steel pins designed to help resist rust and binding, supporting smooth operation through repeated connection and disconnection cycles.
Precision-Machined Construction
The Type C coupler is precision machined to tight tolerances to support reliable fit, sealing performance, and connection with compatible cam and groove components.
Maximum Working Pressure
150 PSI
The supplied product information lists a maximum working pressure of 150 PSI. Verify the pressure ratings of the hose and all other components in the complete assembly before installation and operation.
A-A-59326 Interchange
The coupler is designed to interchange with compatible standard cam and groove fittings manufactured to A-A-59326 specifications.
Typical Applications
- Chemical processing
- Compatible petroleum transfer
- Agricultural fluid handling
- Industrial liquid transfer
- Water transfer systems
- Industrial hose assemblies
Installation & Service Notes
This Type C coupler is designed for liquid transfer applications. Verify hose compatibility, Buna-N gasket compatibility, pressure requirements, and the suitability of the complete hose assembly before installation.
Follow manufacturer recommendations for proper assembly, safety, and operating conditions.
Our specialists can help with Type C fitting selection, cam and groove compatibility, hose connections, gasket materials, and pressure requirements for your liquid transfer system.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is a Type C cam and groove coupler?
A Type C fitting combines a female cam and groove coupler with a hose shank connection.
What size is this Type C coupler?
The supplied product information identifies this fitting as a 2-1/2" Type C cam and groove coupler.
What material is the coupler made from?
The coupler body is manufactured from 316 stainless steel.
What gasket material does this coupler use?
The supplied product information identifies the gasket as Buna-N nitrile rubber.
What is the maximum working pressure?
The supplied product information lists a maximum working pressure of 150 PSI.
What material are the cam arm pins?
The cam arm pins are stainless steel and are designed to help resist rust and binding.
What is the benefit of the long hose shank?
The supplied product information states that the long hose shank design helps reduce hose damage.
Does this coupler interchange with standard cam and groove fittings?
Yes. The supplied product information states that it interchanges with compatible standard cam and groove fittings manufactured to A-A-59326 specifications.
What applications is this fitting designed for?
The supplied information identifies chemical processing, petroleum, agricultural, industrial, and water transfer service as compatible applications, subject to material and system compatibility.
What should be verified before installation?
Verify the hose compatibility, Buna-N gasket compatibility, pressure requirements, and suitability of the complete assembly for the intended fluid and operating conditions.
Important Ordering & Product Notes
- This listing covers a Dixon 2-1/2" Type C Stainless Steel Cam & Groove Coupler x Hose Shank.
- Fitting type is Type C.
- Nominal size is 2-1/2".
- Connection configuration is female cam & groove coupler x hose shank.
- Body material is 316 stainless steel.
- Gasket material is Buna-N nitrile rubber.
- Cam arm pins are stainless steel.
- Maximum working pressure is listed as 150 PSI.
- Features a long hose shank design intended to help reduce hose damage.
- Designed to interchange with compatible cam and groove fittings manufactured to A-A-59326 specifications.
- The specific manufacturer part number and exact hose shank dimensions were not supplied in the provided product information.
- Designed for liquid transfer applications.
- Verify hose compatibility, gasket material, pressure requirements, and fluid compatibility before installation.
- Follow manufacturer recommendations for proper assembly, safety, and operating conditions.
