Dixon

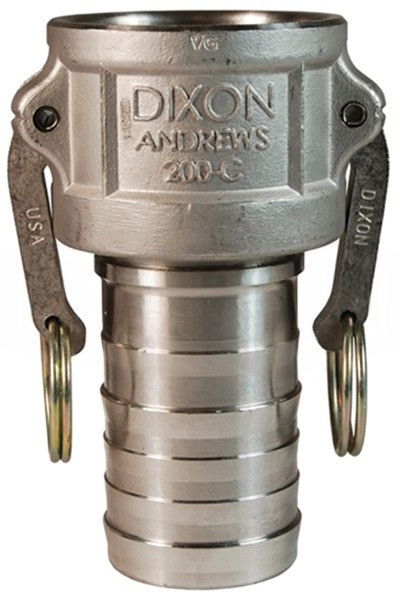

2" Type C Cam & Groove Coupler x Hose Shank Stainless Steel
- SKU:
- NLDIX200-C-SS
- Availability:
- Limited quantity available.
- Weight:
- 2.30 LBS
Description
Dixon 200-C-SS 2" Type C Cam & Groove Coupler x Hose Shank Stainless Steel
The Dixon 200-C-SS 2" Type C Cam & Groove Coupler is designed for secure hose connections in compatible industrial liquid transfer applications.
Manufactured from durable 316 stainless steel, this fitting features a female camlock coupler on one end and a hose shank connection on the other. Its corrosion-resistant construction, Buna-N nitrile seal, precision-machined body, and included safety clips provide dependable performance in demanding hose assembly systems.
Product Highlights
- Dixon 2" Type C cam and groove coupler
- Manufacturer part number: 200-C-SS
- Female camlock coupler x hose shank connection
- 316 stainless steel construction
- Buna-N nitrile seal
- Maximum working pressure: 250 PSI
- Approximate overall length: 5-19/32"
- Precision machined to Commercial Item Description A-A-59326D standards
- Suitable for use with King Crimp sleeves and ferrules
- Includes safety clips
- Designed for liquid transfer applications
- Not for compressed air or steam service
Technical Specifications
| Brand | Dixon |
|---|---|
| Manufacturer Part Number | 200-C-SS |
| Product Type | Cam & Groove Coupler |
| Fitting Type | Type C |
| Nominal Size | 2" |
| Connection 1 | Female Cam & Groove Coupler |
| Connection 2 | Hose Shank |
| Material | 316 Stainless Steel |
| Seal Material | Buna-N Nitrile |
| Maximum Working Pressure | 250 PSI |
| Approximate Overall Length | 5-19/32" |
| Commercial Item Description | A-A-59326D |
| Hose Assembly Compatibility | Suitable for Use with King Crimp Sleeves and Ferrules |
| Safety Clips | Included |
| Intended Service | Liquid Transfer Applications |
| Service Restriction | Not for Compressed Air or Steam Service |
Type C Connection Configuration
Female Cam & Groove Coupler
One end features a 2" female cam & groove coupler designed for connection to a compatible male camlock adapter.
Hose Shank Connection
The opposite end features a hose shank for attachment to a compatible hose assembly.
316 Stainless Steel Construction
The coupler body is manufactured from 316 stainless steel for strength, durability, and corrosion resistance in demanding fluid handling environments.
Buna-N Nitrile Seal
The Dixon 200-C-SS uses a Buna-N nitrile seal to support dependable sealing when connected to a compatible male cam and groove adapter. Verify chemical compatibility of the seal with the fluid being transferred before use.
Precision-Machined Construction
The 200-C-SS features precision-machined components designed to support reliable fit, sealing performance, and interchangeability with compatible standard cam and groove fittings.
King Crimp Compatibility
The supplied product information identifies the Dixon 200-C-SS as suitable for use with King Crimp sleeves and ferrules when assembling the hose shank connection with a compatible hose system.
Safety Clips Included
Safety clips are included with the 200-C-SS for use with the cam and groove coupling assembly.
Maximum Working Pressure
250 PSI
The supplied product information lists a maximum working pressure of 250 PSI. Verify the pressure ratings of the hose, mating fitting, seal, sleeves or ferrules, and all other components when determining the allowable pressure of the complete assembly.
Overall Length
The Dixon 200-C-SS has an approximate overall length of 5-19/32".
A-A-59326D Standard
The supplied product information identifies the 200-C-SS as precision machined to Commercial Item Description A-A-59326D standards.
Liquid Transfer Service
The Dixon 200-C-SS is designed for liquid transfer applications requiring a female cam and groove coupler with a hose shank connection. Verify chemical compatibility, pressure rating, and hose assembly requirements before installation.
Service Restrictions
Do not use cam and groove couplings for compressed air or steam service. Confirm chemical compatibility, pressure requirements, hose compatibility, and assembly requirements before use.
Our specialists can help with camlock compatibility, hose assembly requirements, King Crimp sleeves and ferrules, Buna-N seal compatibility, pressure requirements, and stainless steel fitting selection.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 200-C-SS?
The 200-C-SS is a 2" Type C stainless steel cam and groove coupler featuring a female camlock coupler on one end and a hose shank connection on the other.
What material is the 200-C-SS made from?
The coupler body is manufactured from 316 stainless steel.
What seal does the 200-C-SS use?
The supplied product information identifies the seal material as Buna-N nitrile.
What is the maximum working pressure?
The supplied product information lists a maximum working pressure of 250 PSI.
How long is the 200-C-SS?
The supplied product information lists an approximate overall length of 5-19/32".
Can the 200-C-SS be used with King Crimp components?
Yes. The supplied product information identifies the coupler as suitable for use with King Crimp sleeves and ferrules.
Are safety clips included?
Yes. The supplied product information states that safety clips are included.
What standard is the 200-C-SS manufactured to?
The supplied product information identifies the fitting as precision machined to Commercial Item Description A-A-59326D standards.
What type of service is the 200-C-SS designed for?
The supplied product information identifies the fitting for liquid transfer applications.
Can the 200-C-SS be used for compressed air or steam?
No. The supplied product information states that cam and groove couplings should not be used for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon 200-C-SS 2" Type C Cam & Groove Coupler x Hose Shank Stainless Steel.
- Manufacturer part number: 200-C-SS.
- Nominal size is 2".
- Connection configuration is female cam & groove coupler x hose shank.
- Construction material is 316 stainless steel.
- Seal material is Buna-N nitrile.
- Maximum working pressure is listed as 250 PSI.
- Approximate overall length is 5-19/32".
- Precision machined to Commercial Item Description A-A-59326D standards.
- Suitable for use with King Crimp sleeves and ferrules.
- Safety clips are included.
- Designed for liquid transfer applications.
- Verify chemical compatibility, pressure rating, and hose assembly requirements before installation.
- Do not use cam and groove couplings for compressed air or steam service.
