Dixon

2-1/2" Aluminum Cam & Groove Type F Adapter x Male NPT

(No reviews yet) Write a Review
SKU:
NLDIX250-F-AL
Availability:
Limited quantity available.
Weight:
0.95 LBS
*Images are for visual reference only.

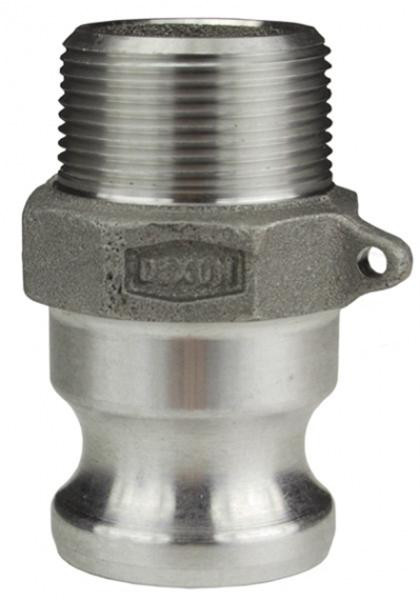

  • 2-1/2" Aluminum Cam & Groove Type F Adapter x Male NPT
  • Dixon Logo
$31.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

Dixon NLDIX250-F-AL 2-1/2" Aluminum Cam & Groove Type F Adapter x Male NPT

The Dixon NLDIX250-F-AL 2-1/2" Type F Cam & Groove Adapter is a durable aluminum fitting designed to provide a reliable transition between compatible camlock couplings and male NPT threaded systems.

Manufactured from 356T6 aluminum, this Type F adapter combines a 2-1/2" male cam and groove adapter with a 2-1/2" male NPT threaded connection. Its lightweight, corrosion-resistant construction is designed for liquid transfer applications in industrial, agricultural, petroleum, chemical processing, construction, and general fluid handling systems.

Product Highlights

  • Dixon Valve NLDIX250-F-AL
  • 2-1/2" Type F cam and groove adapter
  • 2-1/2" male camlock adapter x 2-1/2" male NPT
  • 356T6 aluminum construction
  • Maximum operating pressure: 150 PSI
  • Boss-Lock / cam and groove configuration
  • Lightweight, corrosion-resistant design
  • Interchanges with compatible products manufactured to Commercial Item Description A-A-59326D
  • Approximate length: 4-3/8"
  • Approximate weight: 0.95 lb
  • Designed for liquid transfer applications
  • Not recommended for compressed air or steam service

Technical Specifications

Manufacturer Dixon Valve
SKU NLDIX250-F-AL
Product Type Cam & Groove Adapter x Male NPT
Fitting Type Type F
Nominal Size 2-1/2"
Connection 1 2-1/2" Male Cam & Groove Adapter
Connection 2 2-1/2" Male NPT
Material 356T6 Aluminum
Configuration Boss-Lock / Cam & Groove
Maximum Operating Pressure 150 PSI
Approximate Length 4-3/8"
Approximate Weight 0.95 lb
Interchange Standard Commercial Item Description A-A-59326D
Intended Service Liquid Transfer Applications
Service Restriction Not Recommended for Compressed Air or Steam Service

Type F Connection Configuration

2-1/2" Male Cam & Groove Adapter

One end features a 2-1/2" male cam and groove adapter designed for connection to a compatible female camlock coupler.

2-1/2" Male NPT

The opposite end features a 2-1/2" male NPT threaded connection for connecting to compatible female NPT hose, pipe, or fluid transfer components.

356T6 Aluminum Construction

The NLDIX250-F-AL is manufactured from 356T6 aluminum, providing a strong balance of durability, corrosion resistance, and lightweight handling for compatible liquid transfer systems.

Boss-Lock / Cam & Groove Design

This Type F fitting uses a Boss-Lock / cam and groove configuration, combining a male camlock adapter connection with a male NPT threaded connection for integration into compatible hose and pipe systems.

Maximum Operating Pressure

150 PSI

The supplied product information lists a maximum operating pressure of 150 PSI. Verify the pressure ratings of all connected equipment and components before installation and operation.

Dimensions & Weight

Approximate Length

The supplied product information lists an approximate overall length of 4-3/8".

Approximate Weight

The supplied product information lists an approximate product weight of 0.95 lb.

A-A-59326D Interchange

The NLDIX250-F-AL is designed to interchange with compatible cam and groove products manufactured to Commercial Item Description A-A-59326D.

Typical Applications

  • Industrial liquid transfer systems
  • Agricultural fluid handling
  • Compatible petroleum transfer systems
  • Compatible chemical processing applications
  • Construction fluid handling systems
  • General fluid transfer applications

Service Restrictions

This Type F adapter is designed for liquid transfer applications only. The supplied product information states that it is not recommended for compressed air or steam service.

Verify compatibility with the transferred media, system pressure, and connected equipment before installation.

Willy knows his Dixon Type F aluminum cam and groove adapters
Ask Willy: Need Help with the NLDIX250-F-AL Type F Adapter?

Our specialists can help with Type F fitting selection, cam and groove compatibility, NPT connections, pressure requirements, and fluid compatibility for your liquid transfer system.

Email the GetPipe.com Team Visit Quick Support

Frequently Asked Questions

What is the Dixon NLDIX250-F-AL?

The NLDIX250-F-AL is a 2-1/2" aluminum Type F cam and groove adapter featuring a male camlock adapter connection and a male NPT threaded connection.

What are the connection sizes?

The fitting has a 2-1/2" male cam and groove adapter on one end and a 2-1/2" male NPT connection on the other.

What material is this Type F adapter made from?

The fitting is manufactured from 356T6 aluminum.

What is the maximum operating pressure?

The supplied product information lists a maximum operating pressure of 150 PSI.

How long is the adapter?

The supplied product information lists an approximate length of 4-3/8".

How much does the adapter weigh?

The supplied product information lists an approximate weight of 0.95 lb.

What does the male camlock adapter connect to?

The male cam and groove adapter end is designed to connect to a compatible female camlock coupler.

What does the male NPT connection attach to?

The 2-1/2" male NPT end is designed to connect to a compatible female NPT threaded connection.

Does this fitting interchange with standard cam and groove components?

The supplied product information states that it interchanges with compatible products manufactured to Commercial Item Description A-A-59326D.

Can the NLDIX250-F-AL be used for compressed air or steam?

No. The supplied product information states that this adapter is designed for liquid transfer applications only and is not recommended for compressed air or steam service.

Important Ordering & Product Notes

  • This listing covers the Dixon NLDIX250-F-AL 2-1/2" Aluminum Type F Cam & Groove Adapter x Male NPT.
  • SKU: NLDIX250-F-AL.
  • Manufacturer: Dixon Valve.
  • Fitting type is Type F.
  • Connection configuration is 2-1/2" male cam & groove adapter x 2-1/2" male NPT.
  • Material is 356T6 aluminum.
  • Maximum operating pressure is listed as 150 PSI.
  • Approximate length is 4-3/8".
  • Approximate weight is 0.95 lb.
  • Designed to interchange with compatible products manufactured to Commercial Item Description A-A-59326D.
  • Verify media compatibility, pressure requirements, and connected equipment before installation.
  • Designed for liquid transfer applications only.
  • Not recommended for compressed air or steam service.
