Dixon

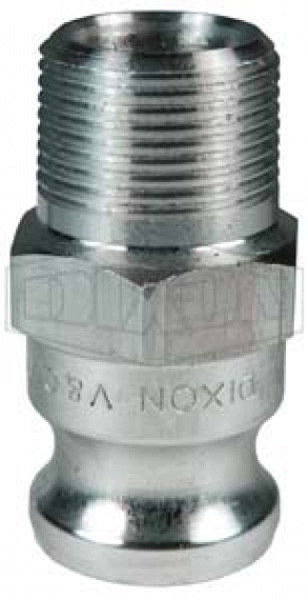

3" Aluminum Cam & Groove Type F Adapter x Male NPT

(No reviews yet) Write a Review
SKU:
NLDIX300-F-AL
Availability:
Limited quantity available.
Weight:
1.20 LBS
*Images are for visual reference only.
  • 3" Aluminum Cam & Groove Type F Adapter x Male NPT
  • Dixon Valve
$27.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

Dixon NLDIX300-F-AL 3" Aluminum Type F Cam & Groove Adapter x Male NPT

The Dixon NLDIX300-F-AL 3" Type F Cam & Groove Adapter is designed to provide a fast, secure transition between compatible camlock equipment and male NPT threaded connections in liquid transfer systems.

Manufactured from 356T6 aluminum, this Boss-Lock Type F fitting features a 3" male cam & groove adapter on one end and a 3" male NPT connection on the other. Its lightweight, corrosion-resistant construction and precision-machined design provide dependable compatibility with fittings manufactured to Commercial Item Description A-A-59326D standards.

Product Highlights

  • Dixon part number NLDIX300-F-AL
  • 3" Type F cam & groove adapter
  • Male cam & groove adapter x male NPT connection
  • 356T6 aluminum construction
  • Boss-Lock series design
  • Maximum working pressure: 125 PSI
  • Approximate overall length: 4-1/8"
  • Interchanges with A-A-59326D compatible cam & groove fittings
  • Lightweight, corrosion-resistant construction
  • Quick-connect camlock design
  • Designed for liquid transfer applications

Technical Specifications

Brand Dixon
Part Number NLDIX300-F-AL
Series Boss-Lock
Product Type Cam & Groove Adapter x Male NPT
Fitting Type Type F
Nominal Size 3"
Camlock Connection 3" Male Cam & Groove Adapter
Threaded Connection 3" Male NPT
Material 356T6 Aluminum
Maximum Working Pressure 125 PSI
Approximate Overall Length 4-1/8"
Interchange Standard A-A-59326D Compatible
Service Liquid Transfer

Type F Connection Configuration

The Type F configuration combines a 3" male cam & groove adapter with a 3" male NPT threaded connection. The camlock end provides quick connection to a compatible female cam & groove coupler, while the threaded end connects to compatible female NPT piping or components.

356T6 Aluminum Construction

The NLDIX300-F-AL is manufactured from 356T6 aluminum for a strong, lightweight, and corrosion-resistant fitting suitable for compatible liquid handling systems.

Precision-machined surfaces help provide reliable fit and interchangeability with compatible cam & groove components.

125 PSI Maximum Working Pressure

The supplied product information lists a maximum working pressure of 125 PSI.

Always verify the pressure requirements and ratings of the complete transfer system, including mating fittings, threaded components, piping, and other connected equipment.

A-A-59326D Interchange

This Boss-Lock Type F adapter is designed to interchange with compatible cam & groove fittings manufactured to Commercial Item Description A-A-59326D standards.

Verify nominal size, connection configuration, and mating fitting compatibility before installation.

Quick-Connect Camlock Design

The male cam & groove adapter end allows quick connection and disconnection with a compatible female camlock coupler. The opposite male NPT connection provides a threaded transition to compatible piping or equipment.

Liquid Transfer Service

The Dixon NLDIX300-F-AL is designed for liquid transfer applications using compatible cam & groove and threaded connections.

Media compatibility, pressure requirements, and thread requirements should be verified for the specific system before installation.

Typical Applications

  • Liquid transfer systems
  • Cam & groove hose connections
  • Threaded piping connections
  • Compatible hose and pipe assemblies
  • Industrial fluid handling equipment

Installation & Service Notes

Connect the 3" male cam & groove adapter to a compatible female camlock coupler and the 3" male NPT end to a compatible female NPT threaded connection.

Before installation, verify media compatibility, system pressure, thread requirements, mating fitting compatibility, and operating conditions.

Willy knows his Dixon aluminum Type F cam and groove adapters
Ask Willy: Need Help with the Dixon NLDIX300-F-AL?

Our specialists can help with 3" Type F fitting selection, camlock compatibility, NPT connections, pressure requirements, and liquid transfer applications.

Email the GetPipe.com Team Visit Quick Support

Frequently Asked Questions

What is the Dixon NLDIX300-F-AL?

The NLDIX300-F-AL is a 3" aluminum Type F cam & groove adapter x male NPT designed for compatible liquid transfer systems.

What connections does this Type F adapter have?

The fitting has a 3" male cam & groove adapter connection on one end and a 3" male NPT threaded connection on the other.

What material is the NLDIX300-F-AL made from?

The adapter is manufactured from 356T6 aluminum.

What is the maximum working pressure?

The supplied product information lists a maximum working pressure of 125 PSI.

How long is the fitting?

The supplied product information lists an approximate overall length of 4-1/8".

Is the NLDIX300-F-AL part of the Boss-Lock series?

Yes. The supplied product information identifies this Type F adapter as a Boss-Lock series fitting.

Does this adapter interchange with standard cam & groove fittings?

The supplied product information states that it interchanges with compatible fittings manufactured to Commercial Item Description A-A-59326D standards.

What is this fitting designed for?

The NLDIX300-F-AL is designed for liquid transfer applications using compatible cam & groove and threaded connections.

Important Ordering & Product Notes

  • This listing covers the Dixon NLDIX300-F-AL 3" Aluminum Type F Cam & Groove Adapter x Male NPT.
  • Nominal fitting size is 3".
  • Connection configuration is 3" male cam & groove adapter x 3" male NPT.
  • Material is 356T6 aluminum.
  • The fitting is identified as part of the Boss-Lock series.
  • Maximum working pressure is listed as 125 PSI.
  • Approximate overall length is 4-1/8".
  • Designed to interchange with compatible A-A-59326D cam & groove fittings.
  • Designed for liquid transfer service.
  • Specific product weight and temperature range were not supplied in the provided product information.
  • Verify media compatibility, pressure requirements, thread requirements, and mating fitting compatibility before installation.
