4" Type F Aluminum Cam & Groove Adapter x Male NPT

(No reviews yet) Write a Review
SKU:
NLDIX400-F-AL
Availability:
Limited quantity available.
Weight:
2.30 LBS
*Images are for visual reference only.
  • 4" Type F Aluminum Cam & Groove Adapter x Male NPT
  • Dixon Logo
$52.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

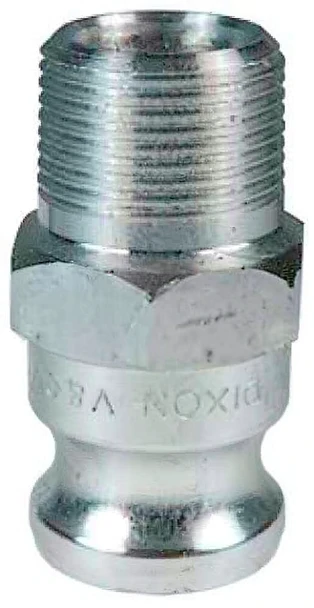

4" Type F Aluminum Cam & Groove Adapter x Male NPT

4" Type F Aluminum Cam & Groove Adapter x Male NPT provides a direct transition between compatible cam and groove couplers and male NPT threaded connections.

Constructed from 356T6 aluminum, the Dixon 400-F-AL combines a 4" male cam and groove adapter with a 4" male NPT connection. The Type F configuration is rated to a maximum operating pressure of 100 PSI.

PRODUCT OVERVIEW

Product Highlights

356T6 aluminum Type F adapter designed to connect compatible 4" cam and groove and threaded equipment.

The 400-F-AL combines a male cam and groove adapter with a male NPT connection for liquid-transfer service.

356T6 Aluminum Construction
4" Nominal Size
Type F Adapter Style
Male Adapter Cam & Groove Side
Male NPT Threaded Side
100 PSI Maximum Pressure

Technical Specifications

Product Type Type F Adapter
Manufacturer Dixon
Part Number 400-F-AL
Material 356T6 Aluminum
Nominal Size 4"
Configuration Adapter x Male NPT
Cam & Groove End Male Adapter
Threaded End 4" Male NPT
Maximum Pressure 100 PSI
Primary Service Liquid Transfer

Type F Connection Configuration

CAM & GROOVE SIDE
4" Male Adapter

The male cam and groove adapter inserts into a compatible 4" female coupler and is secured when the coupler cam arms are fully engaged.

+
THREADED SIDE
4" Male NPT Connection

The opposite end provides a 4" male NPT connection for installation into compatible female NPT piping, fittings, valves, or equipment.

Type F Aluminum Cam & Groove Adapter Design

01
4" Type F Connection Configuration

The Dixon 400-F-AL combines a 4" male cam and groove adapter with a 4" male NPT connection in a single Type F fitting. This configuration provides a direct transition between compatible quick-connect cam and groove equipment and female threaded piping or components.

The two ends perform different connection functions and should be matched to the proper mating components. Confirm both the 4" cam and groove size and 4" NPT thread requirement before installing the adapter into the system.

02
356T6 Aluminum Construction

Dixon manufactures the 400-F-AL from 356T6 aluminum, providing a durable metal fitting while keeping the assembly lighter than many comparable ferrous-metal configurations. The material is used throughout Dixon's standard aluminum Type F cam and groove adapter range.

Material compatibility should be evaluated for the transferred liquid, operating temperature, environment, and connected equipment. Inspect the aluminum body and connection surfaces for damage or contamination before placing the completed assembly into service.

03
Cam & Groove Connection

The male adapter end is designed to slide into a compatible female cam and groove coupler. Closing the mating coupler's cam arms secures the adapter while the gasket inside the coupler establishes the sealing interface around the adapter surface.

Dixon rates the 400-F-AL to a maximum operating pressure of 100 PSI under its stated conditions, with the pressure rating based on the seal of the mating component. The fitting is designed for liquid service rather than compressed air or steam.

04
Male NPT Threaded Connection

The threaded end provides a 4" male NPT connection for installation into compatible female NPT piping or equipment. The combination allows a threaded system component to receive a detachable cam and groove connection through one purpose-built adapter.

Inspect the threads before assembly and use installation practices appropriate for the mating threaded component and application. Avoid cross-threading or excessive tightening that could damage the aluminum threads, fitting body, or connected equipment.

Installation & Selection Considerations

01

Confirm the 4" nominal size.

02

Verify the Type F configuration.

03

Check the male adapter end.

04

Confirm the 4" male NPT thread.

05

Verify liquid compatibility.

Willy knows his pipe sizes
Ask Willy: Need Help Selecting a Type F Cam & Groove Adapter?

Our product specialists can help review nominal size, Type F configuration, aluminum construction, NPT requirements, mating coupler compatibility, and intended liquid service before you order.

Frequently Asked Questions

What is the Dixon 400-F-AL?

The 400-F-AL is a 4" Type F cam and groove fitting with a male cam and groove adapter on one end and a male NPT connection on the other.

What material is the 400-F-AL made from?

Dixon manufactures the 400-F-AL from 356T6 aluminum.

What is the maximum operating pressure?

Dixon lists a maximum operating pressure of 100 PSI for the 400-F-AL, with the pressure rating based on the seal of the mating component.

What connection is on the cam and groove side?

The Type F configuration uses a male cam and groove adapter designed to mate with a compatible 4" female cam and groove coupler.

What connection is on the threaded side?

The opposite side has a 4" male NPT connection for installation into compatible female NPT piping, fittings, valves, or equipment.

Can the 400-F-AL be used for compressed air or steam?

No. Dixon states that cam and groove couplings should not be used for compressed air or steam service.

Important Ordering & Installation Notes

  • Verify Dixon part number 400-F-AL.
  • Confirm the 4" nominal size.
  • Verify the Type F configuration.
  • Confirm 356T6 aluminum construction.
  • Check the mating female coupler.
  • Verify the 4" female NPT connection.
  • Inspect both connection ends before use.
  • Confirm liquid and material compatibility.
  • Do not use for compressed air or steam.
  • Observe the 100 PSI maximum pressure rating.
