Dixon

2" Type A Cam & Groove Male Adapter x Female NPT Aluminum Fitting

(No reviews yet) Write a Review
SKU:
NLDIX200-A-AL
Availability:
Limited quantity available.
Weight:
0.50 LBS
*Images are for visual reference only.

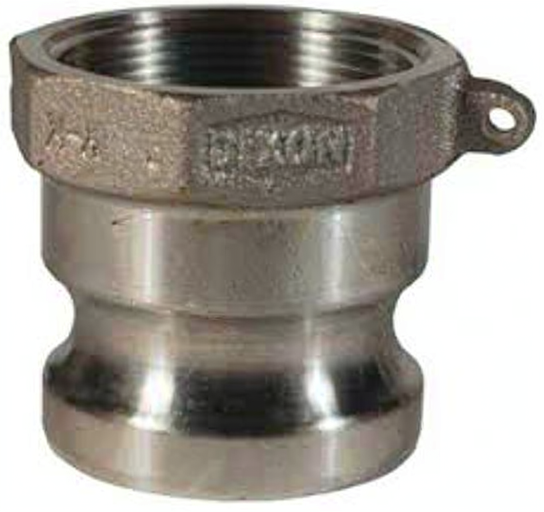

  • 2" Type A Cam & Groove Male Adapter x Female NPT Aluminum Fitting
  • Dixon Logo
$15.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

Dixon 200-A-AL 2" Type A Cam & Groove Male Adapter x Female NPT Aluminum Fitting

The Dixon 200-A-AL 2" Type A Cam & Groove Adapter is designed for fast, secure liquid transfer connections in compatible industrial hose systems.

Constructed from durable 356T6 aluminum, this fitting combines lightweight handling with corrosion resistance. The Type A configuration features a male cam & groove adapter on one end and a 2"-11-1/2 female NPT threaded connection on the other, providing a transition between compatible female camlock couplers and threaded system components.

Product Highlights

  • Dixon 2" Type A cam and groove adapter
  • Manufacturer part number: 200-A-AL
  • Male cam & groove adapter x female NPT thread
  • Thread size: 2"-11-1/2 NPT
  • 356T6 aluminum construction
  • Maximum working pressure: 250 PSI
  • Precision machined for reliable interchangeability
  • Manufactured to interchange with A-A-59326 camlock fittings
  • Length: 2-5/8"
  • Hex size: 2-3/8"
  • Package quantity: 1 each
  • Designed for liquid transfer service
  • Not recommended for compressed air or steam service

Technical Specifications

Brand Dixon
Manufacturer Part Number 200-A-AL
Product Type Cam & Groove Adapter
Fitting Type Type A
Nominal Size 2"
Connection 1 Male Cam & Groove Adapter
Connection 2 Female NPT Thread
Thread Size 2"-11-1/2 NPT
Material 356T6 Aluminum
Maximum Working Pressure 250 PSI
Length 2-5/8"
Hex Size 2-3/8"
Interchange Standard A-A-59326
Package Quantity 1 Each
Intended Service Liquid Transfer

Type A Connection Configuration

Male Cam & Groove Adapter

The camlock end features a 2" male cam & groove adapter designed for quick connection to a compatible female camlock coupler.

Female NPT Connection

The opposite end features a 2"-11-1/2 female NPT threaded connection for connection to compatible male threaded pipe, hose, equipment, or other system fittings.

356T6 Aluminum Construction

The Dixon 200-A-AL is manufactured from 356T6 aluminum, providing a strong yet lightweight fitting for compatible liquid transfer applications.

Precision-Machined Design

The 200-A-AL is precision machined to support reliable fit and interchangeability with compatible cam and groove components.

Fitting Dimensions

Overall Length

The supplied product information lists a fitting length of 2-5/8".

Hex Size

The supplied product information lists a hex size of 2-3/8".

Maximum Working Pressure

250 PSI

The supplied product information lists a maximum working pressure of 250 PSI. Verify the pressure ratings of all connected components and the requirements of the complete system before installation.

A-A-59326 Interchange

The Dixon 200-A-AL is manufactured to interchange with compatible camlock fittings manufactured to A-A-59326 specifications.

Liquid Transfer Service

The 200-A-AL is designed for liquid transfer service using compatible cam and groove and NPT threaded components. Verify media compatibility, connection requirements, and system pressure before installation.

Service Restrictions

The supplied product information does not recommend this cam and groove fitting for compressed air or steam service. Verify thread size, material compatibility, and pressure requirements before installation.

Willy knows his Dixon Type A aluminum cam and groove adapters
Ask Willy: Have a Question About the Dixon 200-A-AL?

Our specialists can help with camlock compatibility, female NPT connections, pressure requirements, aluminum fitting selection, and application questions for the Dixon 200-A-AL 2" Type A Cam & Groove Adapter.

Email the GetPipe.com Team Visit Quick Support

Frequently Asked Questions

What is the Dixon 200-A-AL?

The 200-A-AL is a 2" Type A aluminum cam and groove adapter featuring a male camlock adapter connection on one end and a female NPT threaded connection on the other.

What connections does the 200-A-AL have?

The fitting has a 2" male cam & groove adapter connection and a female NPT threaded connection.

What is the NPT thread size?

The supplied product information lists the thread size as 2"-11-1/2 NPT.

What material is the 200-A-AL made from?

The fitting is manufactured from 356T6 aluminum.

What is the maximum working pressure?

The supplied product information lists a maximum working pressure of 250 PSI.

How long is the Dixon 200-A-AL?

The supplied product information lists a length of 2-5/8".

What is the hex size?

The supplied product information lists a hex size of 2-3/8".

What camlock specification does the 200-A-AL interchange with?

The supplied product information states that the fitting is manufactured to interchange with compatible A-A-59326 camlock fittings.

What service is the 200-A-AL designed for?

The supplied product information identifies the fitting for liquid transfer service.

Can the 200-A-AL be used for compressed air or steam?

The supplied product information states that the fitting is not recommended for compressed air or steam service.

Important Ordering & Product Notes

  • This listing covers the Dixon 200-A-AL 2" Type A Cam & Groove Male Adapter x Female NPT Aluminum Fitting.
  • Manufacturer part number: 200-A-AL.
  • Nominal size is 2".
  • Connection configuration is male cam & groove adapter x female NPT.
  • Thread size is 2"-11-1/2 NPT.
  • Construction material is 356T6 aluminum.
  • Maximum working pressure is listed as 250 PSI.
  • Length is listed as 2-5/8".
  • Hex size is listed as 2-3/8".
  • Manufactured to interchange with compatible A-A-59326 camlock fittings.
  • Package quantity is 1 each.
  • Designed for liquid transfer service.
  • Verify thread size, material compatibility, and pressure requirements before installation.
  • Not recommended for compressed air or steam service.
