Class 150 Black Malleable Iron Tees

(No reviews yet) Write a Review
SKU:
3105
Availability:
Usually Ships Same Day
Weight:
0.00 LBS
*Images are for visual reference only.

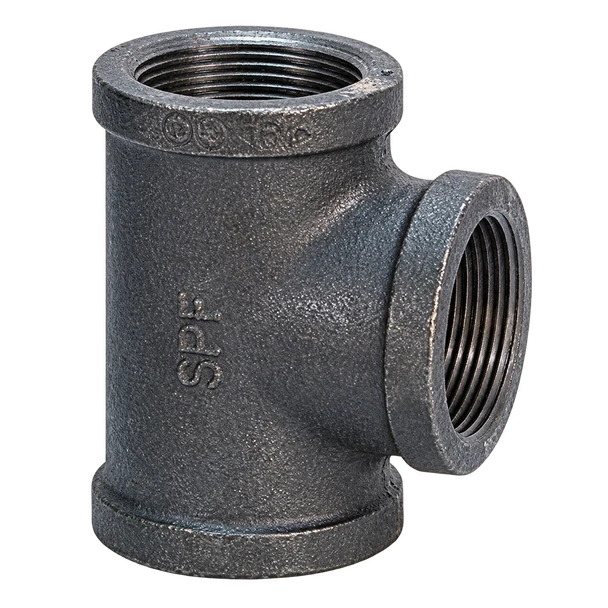

  • Black malleable iron threaded tee, Figure 3105, Class 150 with female npt threads
  • Black malleable iron threaded tee, Figure 3105, Class 150 showing female npt threads and three-opening connection
$1.46 - $257.69

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

ASC Engineered Solutions

Pipe Joining Systems

Class 150 Black Malleable Iron Tees

SCI / ASC Engineered Solutions • Threaded Pipe Fittings

Create a three-opening threaded branch connection with a standard malleable iron tee.

Product details / technical specifications

ManufacturerSCI / ASC Engineered Solutions
Figure3105
MaterialMalleable iron (ASTM A197)
FinishBlack
ConnectionFemale NPT
Pressure classClass 150; allowable pressure depends on temperature and service
Thread standardASME B1.20.1 NPT
Dimensional standardASME B16.3
Size selectionSelect the available nominal pipe size or complete size combination above
Dimensions / unit weightSize-specific; see the matching manufacturer table linked below

Choose the right connection

Choose the nominal pipe size matching all three connections. Use a reducing tee when the required connection sizes differ.

Technical documents / view or print

Open the product table to review size-specific dimensions and weights. PDF links open in a new tab and can be printed from your PDF viewer.

View / Print Figure 3105 Submittal (PDF) ↗View Product Catalog Page (PDF) ↗Material / Thread Specifications (PDF) ↗Material Compliance Certificate (PDF) ↗

Frequently asked questions

How do I choose the right connection?
Choose the nominal pipe size matching all three connections. Use a reducing tee when the required connection sizes differ.
Where are the dimensions and weight?
Use the manufacturer table for the selected nominal size. Dimensions and unit weight vary by size; the image is a product-family reference.
Can I use this for any fluid or service?
Confirm material compatibility, thread arrangement, service conditions and the applicable manufacturer rating before selecting the fitting.
Does Class 150 mean 150 PSI in every application?
No. Pressure class is not one universal working-pressure limit. Allowable pressure depends on temperature, size, material and service; use the applicable manufacturer rating.

Before you order

Choose the nominal pipe size matching all three connections. Use a reducing tee when the required connection sizes differ. Confirm the complete size selection, thread compatibility, operating temperature and required service rating.

Manufacturer SKU and packaging reference

Carton quantities are manufacturer packaging references, not an order minimum. Use the linked manufacturer documentation for technical dimensions.

SKUSizeFigureUPCCarton qtyManufacturer description
08100292071/83105690291877322801/8 BLK IMI TEE
08100294051/43105690291877339501/4 BLK IMI TEE
08100296113/83105690291877346303/8 BLK IMI TEE
08100298191/23105690291877353401/2 BLK IMI TEE
08100300073/43105690291877360353/4 BLK IMI TEE
081003020513105690291877377201 BLK IMI TEE
08100304111 1/431056902918773841411/4 BLK IMI TEE
08100306191 1/231056902918773911211/2 BLK IMI TEE
08100308092310569029187740782 BLK IMI TEE
08100310052 1/23105690291877414421/2 BLK IMI TEE
08100312113310569029187742113 BLK IMI TEE
08100316094310569029187744514 BLK IMI TEE
08100320116310569029187746916 BLK IMI TEE

Need help choosing a fitting? Ask the GetPipe team or call 1-800-410-4625.
