Class 150 Black Malleable Iron Couplings

(No reviews yet) Write a Review
SKU:
3121
Availability:
Usually Ships Same Day
Weight:
0.00 LBS
*Images are for visual reference only.

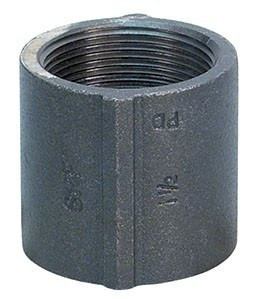

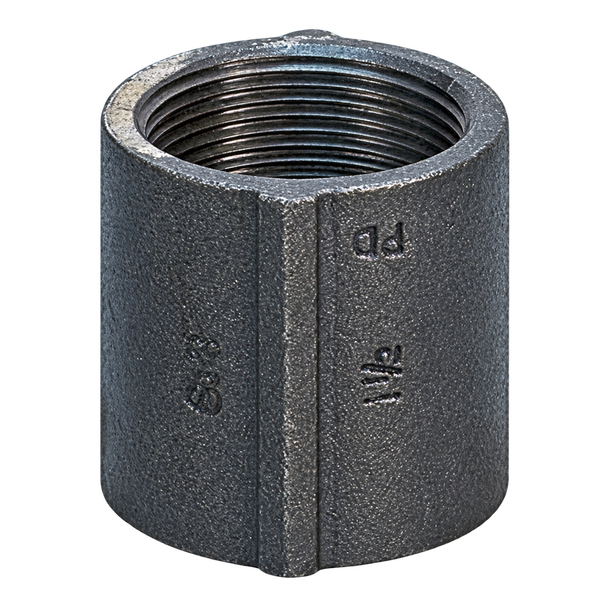

  • Black malleable iron threaded coupling, Figure 3121, Class 150 with female npt threads
  • Black malleable iron threaded coupling, Figure 3121, Class 150 showing female npt threads and straight pipe connection
$1.51 - $49.24

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

ASC Engineered Solutions

Pipe Joining Systems

Class 150 Black Malleable Iron Couplings

SCI / ASC Engineered Solutions • Threaded Pipe Fittings

Join two male threaded pipe ends of the same nominal size in a straight line.

Product details / technical specifications

ManufacturerSCI / ASC Engineered Solutions
Figure3121
MaterialMalleable iron (ASTM A197)
FinishBlack
ConnectionFemale NPT
Pressure classClass 150; allowable pressure depends on temperature and service
Thread standardASME B1.20.1 NPT
Dimensional standardASME B16.3
Size selectionSelect the available nominal pipe size or complete size combination above
Dimensions / unit weightSize-specific; see the matching manufacturer table linked below

Choose the right connection

Match the same nominal pipe size at both ends. For two different pipe sizes, use the appropriate reducing coupling.

Technical documents / view or print

Open the product table to review size-specific dimensions and weights. PDF links open in a new tab and can be printed from your PDF viewer.

View / Print Figure 3121 Submittal (PDF) ↗View Product Catalog Page (PDF) ↗Material / Thread Specifications (PDF) ↗Material Compliance Certificate (PDF) ↗

Frequently asked questions

How do I choose the right connection?
Match the same nominal pipe size at both ends. For two different pipe sizes, use the appropriate reducing coupling.
Where are the dimensions and weight?
Use the manufacturer table for the selected nominal size. Dimensions and unit weight vary by size; the image is a product-family reference.
Can I use this for any fluid or service?
Confirm material compatibility, thread arrangement, service conditions and the applicable manufacturer rating before selecting the fitting.
Does Class 150 mean 150 PSI in every application?
No. Pressure class is not one universal working-pressure limit. Allowable pressure depends on temperature, size, material and service; use the applicable manufacturer rating.

Before you order

Match the same nominal pipe size at both ends. For two different pipe sizes, use the appropriate reducing coupling. Confirm the complete size selection, thread compatibility, operating temperature and required service rating.

Manufacturer SKU and packaging reference

Carton quantities are manufacturer packaging references, not an order minimum. Use the linked manufacturer documentation for technical dimensions.

SKUSizeFigureUPCCarton qtyManufacturer description
08100796081/83121690291878312701/8 BLK IMI COUPLING
08100798061/43121690291878329401/4 BLK IMI COUPLING
08100800103/83121690291878336403/8 BLK IMI COUPLING
08100802181/23121690291878343401/2 BLK IMI COUPLING
08100804083/43121690291878350503/4 BLK IMI COUPLING
081008060613121690291878367251 BLK IMI COUPLING
08100808121 1/431216902918783741611/4 BLK IMI COUPLING
08100810181 1/231216902918783811811/2 BLK IMI COUPLING
081008120823121690291878398122 BLK IMI COUPLING
08100814062 1/23121690291878404821/2 BLK IMI COUPLING
08100816123312169029187841113 BLK IMI COUPLING
08100818104312169029187842834 BLK IMI COUPLING

Need help choosing a fitting? Ask the GetPipe team or call 1-800-410-4625.
