ASC

Class 150 Black Malleable Iron Crosses

(No reviews yet) Write a Review
SKU:
3107
Availability:
Usually Ships Same Day
Weight:
0.00 LBS
*Images are for visual reference only.

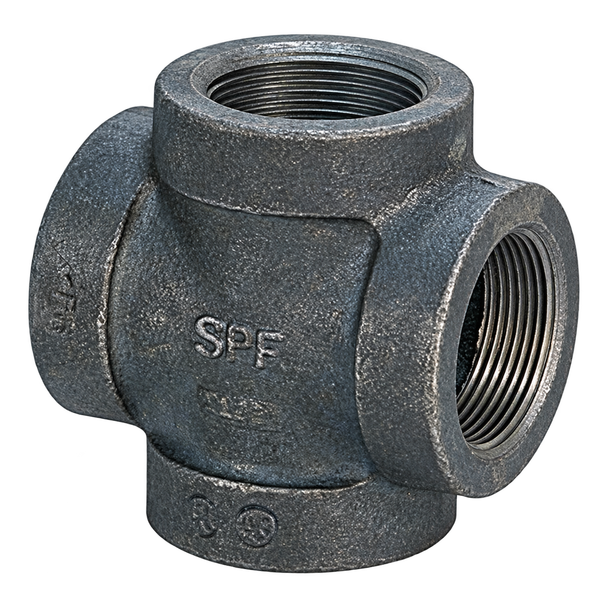

  • Black malleable iron threaded cross, Figure 3107, Class 150 with female npt threads
  • Black malleable iron threaded cross, Figure 3107, Class 150 showing female npt threads and four-opening connection
$4.56 - $26.40

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

ASC Engineered Solutions

Pipe Joining Systems

Class 150 Black Malleable Iron Crosses

SCI / ASC Engineered Solutions • Threaded Pipe Fittings

Create a four-opening threaded piping junction with a malleable iron cross.

Product details / technical specifications

ManufacturerSCI / ASC Engineered Solutions
Figure3107
MaterialMalleable iron (ASTM A197)
FinishBlack
ConnectionFemale NPT
Pressure classClass 150; allowable pressure depends on temperature and service
Thread standardASME B1.20.1 NPT
Dimensional standardASME B16.3
Size selectionSelect the available nominal pipe size or complete size combination above
Dimensions / unit weightSize-specific; see the matching manufacturer table linked below

Choose the right connection

Confirm the four-opening connection layout and nominal pipe size. A cross provides two opposing runs rather than the three openings of a tee.

Technical documents / view or print

Open the product table to review size-specific dimensions and weights. PDF links open in a new tab and can be printed from your PDF viewer.

View / Print Figure 3107 Submittal (PDF) ↗View Product Catalog Page (PDF) ↗Material / Thread Specifications (PDF) ↗Material Compliance Certificate (PDF) ↗

Frequently asked questions

How do I choose the right connection?
Confirm the four-opening connection layout and nominal pipe size. A cross provides two opposing runs rather than the three openings of a tee.
Where are the dimensions and weight?
Use the manufacturer table for the selected nominal size. Dimensions and unit weight vary by size; the image is a product-family reference.
Can I use this for any fluid or service?
Confirm material compatibility, thread arrangement, service conditions and the applicable manufacturer rating before selecting the fitting.
Does Class 150 mean 150 PSI in every application?
No. Pressure class is not one universal working-pressure limit. Allowable pressure depends on temperature, size, material and service; use the applicable manufacturer rating.

Before you order

Confirm the four-opening connection layout and nominal pipe size. A cross provides two opposing runs rather than the three openings of a tee. Confirm the complete size selection, thread compatibility, operating temperature and required service rating.

Manufacturer SKU and packaging reference

Carton quantities are manufacturer packaging references, not an order minimum. Use the linked manufacturer documentation for technical dimensions.

SKUSizeFigureUPCCarton qtyManufacturer description
08100694191/43107690291964350401/4 BLK IMI CROSS
08100696173/83107690291503627503/8 BLK IMI CROSS
08100698071/23107690291963803301/2 BLK IMI CROSS
08100700113/43107690291963810203/4 BLK IMI CROSS
081007021913107690291963827151 BLK IMI CROSS
08100704091 1/431076902919638341011/4 BLK IMI CROSS
08100706071 1/23107690291963841811/2 BLK IMI CROSS
08100708052310769029196385852 BLK IMI CROSS

Need help choosing a fitting? Ask the GetPipe team or call 1-800-410-4625.
