Lesso America
PVC SDR 35 Coupling (H x H)
- SKU:
- LSW100
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

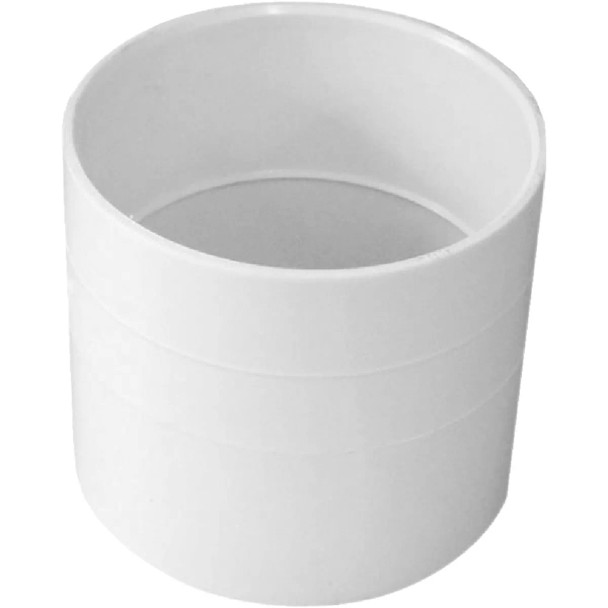

PVC SDR 35 Coupling (Hub x Hub)
PVC SDR 35 Couplings are designed to join two sections of SDR 35 PVC sewer pipe in gravity-flow, non-pressure drainage systems.
Featuring hub connections on both ends, this coupling provides a straightforward solvent-weld connection between compatible SDR 35 PVC pipe sections. Its molded PVC construction offers lightweight handling along with resistance to corrosion, chemicals, moisture, and underground environmental exposure. Designed for sanitary sewer, stormwater, wastewater, and general drainage applications, the coupling helps maintain a continuous, secure, and leak-resistant pipeline.
Product Highlights
- PVC SDR 35 coupling
- Hub x Hub connection configuration
- Joins two sections of compatible SDR 35 PVC pipe
- Designed for gravity-flow sewer and drain systems
- Suitable for non-pressure applications
- Designed for solvent-weld installation
- Helps maintain a continuous piping run
- Supports secure, leak-resistant joints
- Durable PVC construction
- Lightweight for easier handling and installation
- Resistant to corrosion
- Resistant to moisture exposure
- Resistant to many compatible chemicals
- Suitable for underground installations
- Suitable for sanitary sewer systems
- Suitable for stormwater drainage
- Suitable for wastewater piping
- Suitable for residential applications
- Suitable for commercial applications
- Suitable for municipal sewer and drainage systems
Technical Specifications
| Product Type | PVC SDR 35 Coupling |
|---|---|
| Material | PVC |
| Connection Type | Hub x Hub |
| Number of Connections | 2 |
| Pipe Compatibility | Compatible SDR 35 PVC Sewer Pipe |
| Joint Method | Solvent Weld |
| System Type | Sewer and Drainage |
| Flow Type | Gravity Flow |
| Pressure Service | Non-Pressure |
| Primary Function | Join Two Sections of SDR 35 PVC Sewer Pipe |
| Typical Applications | Sanitary Sewer, Stormwater, Wastewater, Underground Drainage, Residential, Commercial, and Municipal Systems |
Connection Configuration
First Hub Connection
One hub accepts compatible SDR 35 PVC sewer pipe for solvent-weld installation.
Second Hub Connection
The opposite hub accepts another compatible SDR 35 PVC pipe section, creating a straight inline connection.
Coupling Design
The SDR 35 coupling provides a simple inline connection between two compatible sewer pipe sections.
Both hub ends are designed to receive SDR 35 PVC pipe, allowing the coupling to maintain pipe alignment and continuity through the joint.
The compact molded design makes the fitting suitable for new installations, repairs, extensions, and other applications where two SDR 35 pipe sections must be joined.
Why Choose a PVC SDR 35 Coupling?
Simple Inline Connection
- Joins two compatible SDR 35 pipe sections
- Straight-through coupling configuration
- Two matching hub connections
- Supports proper pipe alignment
- Suitable for new work and modifications
PVC Construction
- Corrosion resistant
- Lightweight construction
- Suitable for underground service
- Resistant to moisture exposure
- Suitable for many compatible drainage environments
Typical Applications
Sewer Systems
- Sanitary sewer piping
- Building sewer connections
- Residential sewer lines
- Commercial sewer systems
- Municipal sewer installations
Drainage Systems
- Stormwater drainage
- Wastewater piping
- Underground drainage
- Gravity-flow drain systems
- General non-pressure drainage
Construction Details
Constructed from durable PVC, this coupling is designed for long-term service in underground sewer and drainage applications.
The lightweight material simplifies handling and installation while providing resistance to corrosion, moisture, and many compatible chemicals commonly encountered in drainage environments.
Precision-molded hub connections are designed to provide proper fit and alignment with compatible SDR 35 PVC sewer pipe.
Installation
Verify the nominal coupling size and confirm compatibility with the SDR 35 PVC pipe being installed.
Cut both mating pipe ends square and remove burrs or debris that could interfere with proper insertion.
Clean and prepare the pipe ends and coupling hubs according to accepted PVC solvent-weld installation procedures.
Dry-fit both pipe sections into the coupling before applying primer or solvent cement to confirm proper fit, insertion depth, and alignment.
Apply approved PVC primer and solvent cement as required for the system and fully seat each pipe into its corresponding hub.
Maintain proper alignment while the joints set and allow the solvent-weld connections to cure according to the solvent cement manufacturer's recommendations before placing the system into service.
Our piping specialists can help review your sewer pipe size, SDR 35 compatibility, application, and installation requirements before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is a PVC SDR 35 coupling used for?
It is used to join two sections of compatible SDR 35 PVC sewer pipe in a straight piping run.
What does Hub x Hub mean?
It means both ends are socket-style hub connections designed to receive compatible SDR 35 PVC pipe.
Is this coupling designed for pressure piping?
No. The supplied product information identifies it for non-pressure gravity-flow sewer and drainage applications.
How is this coupling installed?
Both hubs are intended for solvent-weld installation using compatible PVC preparation materials, primer, and solvent cement as required.
Can this fitting be used underground?
Yes. The supplied product information identifies underground sewer and drainage systems as typical applications.
Can it be used for sanitary sewer systems?
Yes. Sanitary sewer service is one of the primary applications identified for SDR 35 PVC couplings.
Can it be used for stormwater drainage?
Yes. The supplied product information identifies stormwater applications as suitable for this fitting.
Can it be used for wastewater piping?
Yes. The supplied product information identifies wastewater applications as suitable for SDR 35 sewer and drainage fittings.
Is PVC resistant to corrosion?
Yes. The supplied product information identifies the PVC material as resistant to corrosion, moisture, and many compatible chemicals.
Can this coupling connect SDR 35 pipe to DWV pipe?
This coupling is described as Hub x Hub for SDR 35 PVC pipe. A dedicated SDR 35-to-DWV adapter should be used when transitioning between different piping standards.
Should both pipe ends be dry-fitted before cementing?
Yes. Dry-fitting helps verify compatibility, insertion depth, alignment, and overall installation position before solvent welding.
What should I verify before ordering?
Confirm the nominal SDR 35 pipe size, pipe standard, application type, and compatibility with the intended sewer or drainage system.
Important Ordering & Installation Notes
- This listing is for a PVC SDR 35 Coupling with Hub x Hub connections.
- Verify the nominal coupling size before ordering.
- Confirm compatibility with the specific SDR 35 PVC sewer pipe being installed.
- Both ends are hub-style connections.
- Both hubs are designed to receive compatible SDR 35 PVC pipe.
- The coupling is designed for straight inline pipe connections.
- This fitting is intended for gravity-flow sewer and drainage applications.
- This fitting is intended for non-pressure service.
- Do not substitute this coupling for a dedicated SDR 35-to-DWV transition fitting.
- Dry-fit both pipe sections before applying primer or solvent cement.
- Confirm proper pipe insertion depth and alignment before final assembly.
- Cut pipe ends square before installation.
- Remove burrs and debris from mating pipe ends.
- Clean and prepare all mating surfaces before solvent welding.
- Use approved PVC primer and solvent cement according to manufacturer instructions.
- Fully seat each pipe into its corresponding hub.
- Maintain proper alignment while the joints set.
- Allow completed solvent-weld joints to cure according to the cement manufacturer's recommendations before service.
- Suitable applications may include sanitary sewer, stormwater, wastewater, and underground drainage systems.
- Verify installation requirements for residential, commercial, or municipal applications.
- Consult manufacturer documentation for complete dimensions and pipe compatibility.
- Consult manufacturer documentation for installation and operating limitations.
- Follow applicable plumbing, sewer, and drainage codes.
