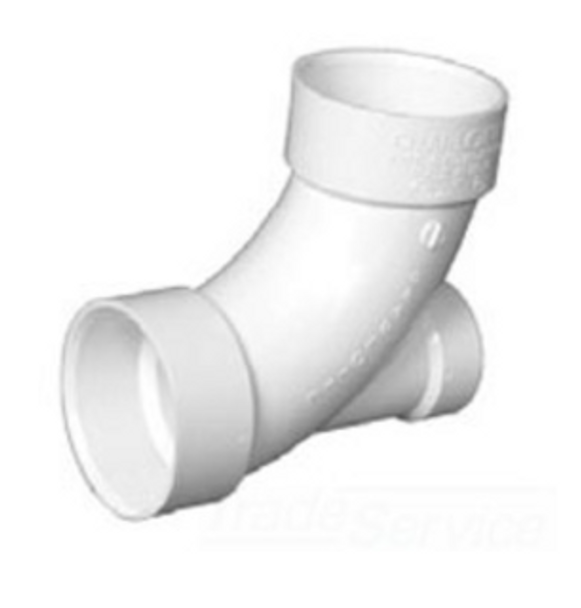

PVC DWV Long Sweep 1/4 Bend w/Low Heel Inlet (HUB x HUB x HUB)
- SKU:
- LP307
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
PVC DWV Long Sweep 1/4 Bend w/Low Heel Inlet (HUB x HUB x HUB)
PVC DWV Long Sweep 1/4 Bend w/Low Heel Inlet (HUB x HUB x HUB) provides a sweeping directional change with an additional low heel branch connection within compatible PVC drainage, waste, and vent piping systems. The fitting incorporates three receiving hub connections within one molded long-sweep body.
The HUB x HUB x HUB configuration provides two primary hubs for the long-sweep bend and a third hub at the low heel inlet. This arrangement combines a gradual piping turn with an additional branch connection in one fitting.
Product Highlights
- PVC construction
- Long-sweep design
- Three hub connections
- Low heel inlet configuration
- HUB x HUB x HUB connection style
- Provides a gradual directional change
- Includes an additional heel branch connection
- Combines a long-sweep bend and low heel inlet in one fitting
Technical Specifications
| Product Type | Long Sweep 1/4 Bend with Low Heel Inlet |
|---|---|
| Manufacturer | LESSO America |
| Material | PVC |
| Product Series | PVC DWV Fittings |
| Connection | Hub x Hub x Hub |
| Connection Abbreviation | HUB x HUB x HUB |
| Number of Connections | 3 |
| Configuration | Long Sweep Quarter Bend with Low Heel Inlet |
| Primary Function | Provide a Sweeping Directional Change with a Low Heel Branch |
Connection Configuration
The first receiving hub accepts appropriately sized compatible PVC DWV pipe and forms one side of the long-sweep bend.
The second receiving hub continues the main piping path through the sweeping directional transition.
The third receiving hub provides an additional branch connection at the low heel of the bend.
Long Sweep Low Heel Inlet Design
The long sweep 1/4 bend provides a more gradual directional transition than a compact quarter-bend configuration.
The two primary receiving hubs create the sweeping bend, while the third hub provides the low heel branch connection.
Combining the long sweep and low heel inlet within one fitting can simplify compatible DWV layouts requiring both a directional transition and an additional branch.
Why Choose a PVC DWV Long Sweep 1/4 Bend with Low Heel Inlet?
- Gradual bend
- Two main hubs
- Changes piping direction
- Supports smoother routing
- Compatible DWV use
- Third hub connection
- Low heel position
- Creates a branch point
- PVC construction
- Reduces separate branch fittings
Typical Applications
- Drain piping
- Waste piping
- Vent systems
- Residential DWV layouts
- Commercial DWV installations
- Branch piping
- Drain transitions
- Waste piping layouts
- Multi-connection layouts
- Low heel inlet applications
Standards & Compliance
- PVC DWV System Compatibility – Select the fitting according to the requirements of the adjoining drainage, waste, and vent piping system.
- Manufacturer Documentation – Confirm applicable dimensions, standards, certifications, listings, and connection requirements using current LESSO technical literature.
- Project Requirements – Verify applicable plumbing, DWV, heel-inlet, branch-connection, and local authority requirements before installation.
Requirements can vary according to fitting size, long-sweep configuration, heel inlet position, adjoining piping, and the complete DWV system.
Refer to the Lesso Product Catalog and PVC Schedule 40 & DWV Technical Manual for current dimensional information, standards, certifications, listings, and technical requirements.
Construction Details
The fitting is manufactured from PVC and incorporates three receiving hub connections within a molded long-sweep quarter-bend body.
The two primary hubs provide the sweeping directional transition, while the third hub provides the low heel branch connection.
The one-piece construction integrates the long sweep and branch point within a single PVC DWV fitting.
Installation & Selection Considerations
- Confirm all required connection sizes.
- Verify the HUB x HUB x HUB configuration.
- Check PVC DWV system compatibility.
- Confirm the required sweep orientation.
- Verify the low heel inlet position.
Review the Lesso Product Catalog and PVC Schedule 40 & DWV Technical Manual for additional long-sweep bend information, low heel inlet configurations, hub connection details, dimensions, standards, and technical guidance for compatible PVC DWV piping systems.
Need Help Selecting a PVC DWV Long Sweep 1/4 Bend with Low Heel Inlet?
Our GetPipe.com team can help review all required sizes, HUB x HUB x HUB configuration, long-sweep orientation, low heel inlet position, adjoining DWV pipe, and system compatibility before you order.
Frequently Asked Questions
What is a PVC DWV Long Sweep 1/4 Bend with Low Heel Inlet used for?
It provides a sweeping directional change while incorporating an additional branch connection at the low heel of the fitting.
What does HUB x HUB x HUB mean?
It means all three openings use receiving hub connections for compatible PVC DWV piping.
What is the purpose of the long sweep?
The long-sweep body provides a more gradual directional transition than a compact bend configuration.
What is the low heel inlet used for?
The low heel inlet provides an additional connection point for compatible branch piping.
How many connections does this fitting have?
The fitting has three receiving hub connections.
What should I confirm before ordering?
Confirm all required sizes, HUB x HUB x HUB configuration, sweep orientation, low heel inlet position, and PVC DWV compatibility.
Important Ordering & Installation Notes
- Confirm all required nominal sizes.
- Verify all three hub connections.
- Inspect each connection before use.
- Confirm the required sweep orientation.
- Verify the low heel inlet position.
