Lesso America
PVC DWV 1/6 Bend (HUB x HUB)
- SKU:
- LP319
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

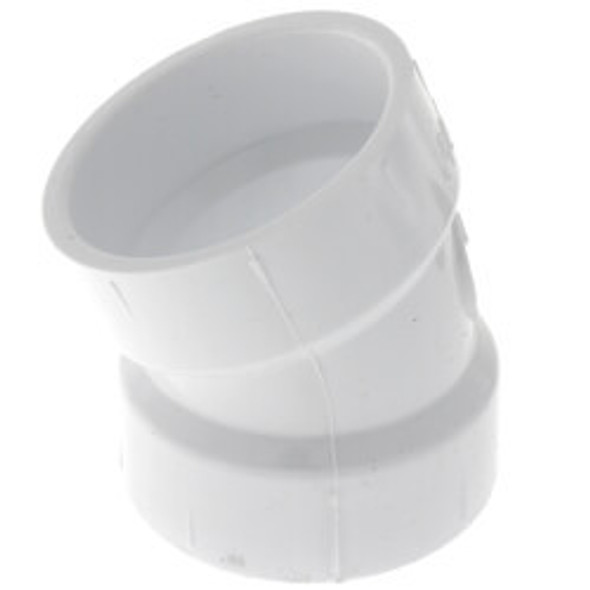

PVC DWV 1/6 Bend (HUB x HUB)
PVC DWV 1/6 Bends provide a gentle 30-degree directional change for non-pressurized drain, waste, and vent piping systems.
Featuring hub connections on both ends, this fitting accepts compatible PVC DWV pipe for permanent solvent-weld installation. The 30-degree bend helps fine-tune pipe alignment while maintaining a smooth flow path, making it well suited for residential, commercial, and industrial plumbing layouts where a gradual directional adjustment is needed.
Product Highlights
- PVC DWV 1/6 bend fitting
- Provides a 30° directional change
- Hub x Hub connection configuration
- Designed for drain, waste, and vent systems
- Hub ends accept compatible PVC DWV pipe
- Solvent-weld installation
- Gentle bend supports smooth flow transitions
- Useful for precise pipe alignment
- Durable corrosion-resistant PVC construction
- Lightweight and easy to install
- Suitable for residential, commercial, and industrial DWV systems
Technical Specifications
| Product Type | DWV 1/6 Bend |
|---|---|
| Material | PVC |
| Bend Angle | 30° |
| Connection Type | Hub x Hub |
| Joint Method | Solvent Weld |
| System Type | Drain, Waste & Vent (DWV) |
| Pressure Service | Non-Pressure |
| Primary Function | 30° Directional Change / Pipe Alignment |
| Typical Applications | Residential, Commercial, and Industrial DWV Systems |
Connection Configuration
First Hub
The first hub accepts compatible PVC DWV pipe for a permanent solvent-weld connection.
30° Bend
The 1/6 bend creates a gentle 30-degree directional change for gradual alignment adjustments in the piping system.
Second Hub
The opposite hub accepts the outgoing section of compatible PVC DWV pipe to complete the transition.
Construction Details
The fitting is manufactured from durable PVC for corrosion resistance and dependable long-term service in compatible non-pressure drain, waste, and vent systems.
Hub connections on both ends are designed for solvent-cement joining to compatible PVC pipe, creating permanent joints when properly installed.
The gentle 30-degree geometry helps maintain a smooth flow path while allowing more precise routing than a sharper elbow.
Why Choose a 1/6 Bend?
Precise Alignment
- Creates a 30° directional adjustment
- Useful for offsetting pipe runs
- Helps fine-tune DWV layouts
- Suitable for gradual changes in direction
- Useful in new installations and repairs
PVC DWV Construction
- Corrosion-resistant material
- Lightweight construction
- Resistant to many common plumbing chemicals
- Designed for solvent-weld assembly
- Suitable for long-term non-pressure service
Typical Applications
Residential DWV Systems
- Drain piping offsets
- Waste piping alignment
- Vent piping adjustments
- Fixture drainage systems
- General plumbing layouts
Commercial & Industrial DWV
- Building drainage systems
- Commercial waste piping
- Vent system routing
- Repair and retrofit work
- Compatible industrial drainage systems
Solvent-Weld Installation
Cut compatible PVC DWV pipe square and remove burrs before installation. Clean and prepare the pipe ends and fitting hubs according to accepted PVC solvent-weld procedures.
Apply compatible PVC primer and solvent cement where required, fully seat each pipe into the appropriate hub, and confirm the desired 30-degree orientation before the cement begins to set.
Allow all completed joints to cure according to the solvent-cement manufacturer's recommendations before placing the system into normal service.
Our plumbing specialists can help review your pipe size, required offset, DWV layout, and solvent-weld installation needs before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What angle is a 1/6 bend?
A 1/6 bend provides a 30-degree directional change.
What does HUB x HUB mean?
Hub x Hub means both ends of the fitting contain socket connections designed to accept compatible PVC pipe.
What is a 1/6 bend used for?
It is commonly used to make a gentle directional adjustment or offset in compatible DWV piping.
How is the fitting installed?
Both hub connections are installed using compatible PVC solvent-weld procedures.
Is this fitting intended for pressure piping?
No. This fitting is intended for non-pressurized drain, waste, and vent systems.
What material is the fitting made from?
The fitting is manufactured from durable, corrosion-resistant PVC.
Why use a 30° bend instead of a 45° or 90° elbow?
A 30-degree bend allows a smaller directional adjustment when the piping layout does not require a sharper turn.
Can this fitting be used for vent piping?
Yes. It can be used in compatible DWV vent layouts where a 30-degree directional change is appropriate.
Do I need PVC primer and solvent cement?
Use compatible PVC primer and solvent cement as required by the manufacturer, solvent-cement instructions, and applicable plumbing requirements.
What should I verify before ordering?
Confirm the nominal pipe size, Hub x Hub configuration, 30-degree bend requirement, and compatibility with the intended PVC DWV system.
Important Ordering & Installation Notes
- This listing is for a PVC DWV 1/6 Bend with HUB x HUB connections.
- The fitting provides a 30-degree directional change.
- Verify the required nominal pipe size before ordering.
- Both hub ends accept compatible PVC DWV pipe.
- Designed for non-pressurized drain, waste, and vent applications.
- Use compatible PVC primer and solvent cement where required.
- Cut pipe square before installation.
- Remove burrs and clean all mating surfaces before solvent welding.
- Fully seat pipe into each hub during assembly.
- Confirm the required 30-degree orientation before the solvent cement begins to set.
- Allow completed joints to cure according to the cement manufacturer's recommendations.
- Do not use this fitting for pressure applications.
- Verify the proposed bend is appropriate for the specific DWV layout.
- Check completed joints for proper assembly before normal use.
- Follow applicable plumbing codes and installation requirements.
