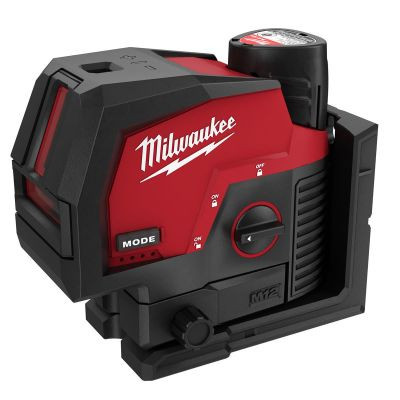

Milwaukee Tool M12 Green Cross Line & Plumb Points Laser Kit
- SKU:
- MLW3622-21
- Availability:
- Usually Ships Same Day
- Weight:
- 10.35 LBS
Description
DUTY®
M12 Green Cross Line / Plumb Laser Kit
M12 cordless tool kit · 1 battery pack included · Exact power items listed below
Product Overview
This M12 green laser provides cross lines and two plumb points. Use the lines for alignment and the points for vertical transfer.
The magnetic bracket pivots around the plumb point for fine adjustment. Micro control aligns the beam without moving the tool.
- Green cross linesHorizontal and vertical alignment.
- Two plumb pointsTransfer positions from floor to ceiling.
- Micro adjustmentPivots around the reference plumb point.
- Magnetic bracketSupports mounting on steel framing.
Technical Specifications
- Battery system
- M12
- Working range
- 125 ft
- Detector range
- 165 ft
- Accuracy
- ±1/8 in at 33 ft
- Self-leveling range
- ±4°
- Mount threads
- 1/4-20 / 5/8-11
Choose the Correct Fit
Choose a stable mounting point and allow the laser to self-level within its ±4 degree range. Use the plumb reference and micro control for final alignment.
The standard working range is 125 ft; the 165 ft range requires a detector. Use an M12 pack and the correct 1/4-20 or 5/8-11 mounting connection.
Installation & Care
Turn off the laser before moving or cleaning it and follow the manual’s transport procedure. Keep the optical windows clean without abrasive materials.
Check alignment accuracy before critical layout and after an impact. Never stare into the beam or direct it at another person’s eyes.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing a cordless tool kit? Share model 3622-21, your application and the accessories you need for the job.
Important Product Questions
Which batteries and charger are included?
This exact 3622-21 kit lists 1 × M12 REDLITHIUM 3.0 3.0 Ah battery pack (48-11-2430); and 1 × M12 Lithium-ion Battery Charger (48-59-2401).
Which other package items are listed?
Along with the tool and power items above, the manufacturer lists 1 × Responsive Laser Alignment Target (48-35-1111); 1 × Carrying Case. Match these supplied accessories to the intended work; broader tool capability does not add unlisted accessories.
What are the plumb points used for?
The two points transfer reference positions between floor and ceiling. The bracket pivots on the plumb point for fine alignment.
