Milwaukee

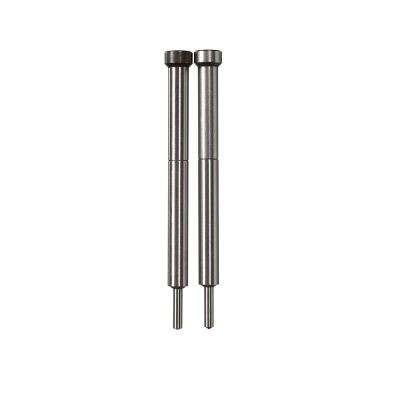

Milwaukee Tool 1" Retractable Pilot Pin
- SKU:
- MLW49-59-0011
- Availability:
- Usually Ships Same Day
- Weight:
- 0.10 LBS
Description
DUTY®
1 in Depth
Retractable Pilot
A retractable pilot pin for 1 in-depth HSS annular cutters, with an extended visible point for locating the hole.
Product Overview
The extended point helps align the cutter with the marked hole position before drilling begins.
Retracting action assists with plug ejection. Keep people and property clear of the slug path.
- Cutter depth1 in HSS annular cutters.
- Visible pointExtended for easier alignment.
- Retracting actionAssists with plug ejection.
- Verified drill fitM18 FMDP with correct cutter.
Technical Specifications
- Cutter family
- HSS annular
- Cutter depth
- 1 in
- Pin movement
- Retractable
- Drill fit
- M18 FMDP
- Alignment point
- Extended visibility
- Plug handling
- Ejection assist
Choose the Correct Fit
Match the pin to a 1 in-depth HSS annular cutter and the approved drill setup. The depth designation refers to the cutter, not the overall length of the pin.
Remove the drill battery or disconnect power before fitting the pin and cutter. Follow the drill and cutter instructions and confirm the parts seat correctly.
Installation & Care
Align the pilot point with the marked hole position before cutting. Inspect the point and retracting action and replace damaged or binding parts.
Keep clear of the plug-ejection path and protect people and property below the work. Stop the spindle before clearing chips with suitable tools.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Tell Willy the annular cutter type, cutting depth and drill model to check the pilot pin.
Important Product Questions
Does the stated size describe the physical pin length?
No. This version is intended for 1 in-depth HSS annular cutters. Match the cutter’s depth and family rather than choosing by apparent pin length.
Can I substitute it for a carbide-cutter pilot?
Use the pilot specified for the exact cutter. HSS and carbide cutter accessories have separate part selections; do not assume they interchange.
What precaution matters when the hole is completed?
The pilot arrangement assists with plug ejection. Keep people and property clear of the slug path and stop rotation before clearing debris.
