Jomar Valve
Limit Switch with Dome Indicator
- SKU:
- ASM
- Availability:
- Usually Ships Same Day
- Weight:
- 1.00 LBS
Freight Policy
Class 1 Freight Allowed Policy: $2,000.00 Net
Any combination of Class 1 products qualify for a Full Freight Allowed shipment. No Class 2 products may be added into this policy.
*Images are for visual reference only.
Description

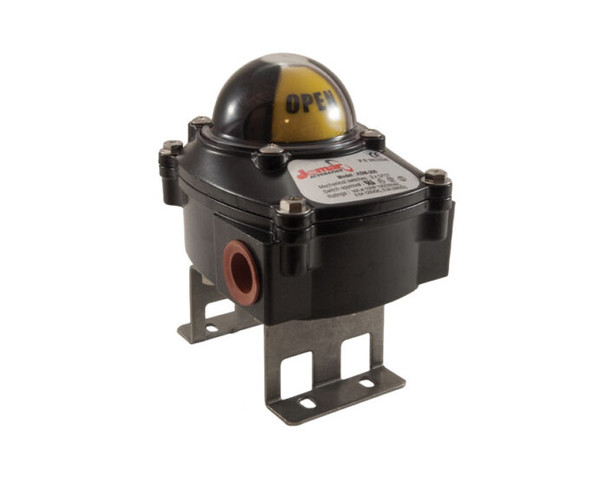

Limit Switch with Dome Indicator
Features
- Die-cast aluminum, epoxy-polyester coated housing
- O-ring sealed to prevent contaminants from entering switch compartment
- Position indicator manufactured of high-impact polycarbonate; yellow = open / red = closed
- 2 mechanical switches are of SPDT design
- Eight position terminal strip included
- Enclosure is IP 67 weatherproof design
- Stainless steel mounting bracket made to NAMUR
Options:
- Explosion proof: EExd IIB T6 and EExd IIC T6
- Switches: Maximum of (4) SPDT mechanical switches
- 2 Proximity switches
- Adjustable mounting bracket
