Watts Water Technologies
Lead Free* Swing Check Valves Solder
- SKU:
- LFWCVS
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

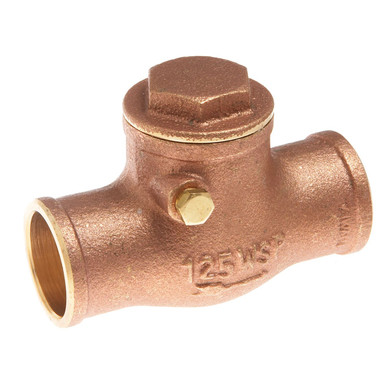

Lead Free* Swing Check Valves Solder
This lead free swing check valve is used in commercial and industrial applications to prevent reverse flow. It features a lead free brass body with solder end connections, lead free brass bonnet, PTFE gasket, and lead free brass pin, screw, and seat. It has metal-to-metal seating and provides low pressure drop and automatic closure when fluid flow is stopped. The maximum pressure is 200 psi (13.8 bar) WOG (non-shock), 125 psi (8.6 bar) WSP.
Product Highlights
- Lead free body construction
- Solder end connections
- PFTE gasket
- Maximum pressure is 200 psi
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | LFWCVS |
| Connection / Configuration | Solder |
| Construction | Lead free brass |
| Listed Options | 1/2, 3/4, 1 |
| Product Code | LFWCVS |
Product Documents
Product Questions
What is the listed connection configuration?
Solder. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Lead free brass. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
1/2, 3/4, 1. Choose the required option before ordering.
