Watts Water Technologies
Lead Free* Swing Check Valves Threaded
- SKU:
- LFWCV
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

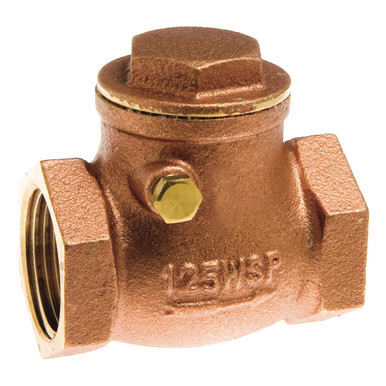

Lead Free* Swing Check Valves Threaded
This lead free swing check valve is used to prevent reverse flow in water and steam applications. It features a lead free brass body with NPT threaded end connections, lead free brass bonnet, PTFE gasket, lead free brass pin, screw and seat. This valve has metal-to-metal seating and provides low pressure drop and automatic closure when fluid flow is stopped. The working set pressure rating is 125 psi (8.6 bar) and maximum pressure is 200 psi (13.8 bar) WOG non-shock.
Product Highlights
- Lead free body construction
- Metal to metal seal
- NPT threaded end connections
- Maximum pressure is 200 psi
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | LFWCV |
| Connection / Configuration | Female NPT threaded |
| Construction | Lead free brass |
| Listed Options | 1/2, 3/4, 1 |
| Product Code | LFWCV |
Product Documents
Product Questions
What is the listed connection configuration?
Female NPT threaded. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Lead free brass. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
1/2, 3/4, 1. Choose the required option before ordering.
