Watts Water Technologies
Lead Free* Silent Check Valves Solder
- SKU:
- LF601S
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

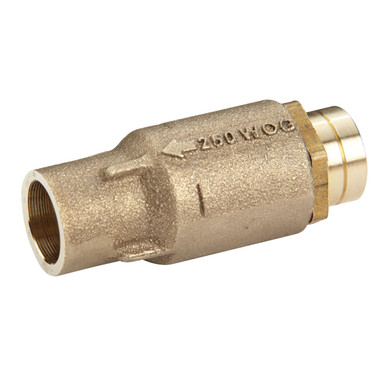

Lead Free* Silent Check Valves Solder
This lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, Viton® disc, and soldered end connections. The maximum pressure rating is 400 psi (27.6 bar), WOG non-shock at 100 degrees F (38 degrees C).
Product Highlights
- Lead free brass body
- Integral lead free brass seat
- Silent operation
- Viton® disc
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | LF601S |
| Connection / Configuration | Solder |
| Construction | Lead free brass |
| Listed Options | 1/2, 3/4 |
| Product Code | LF601S |
Product Documents
Product Questions
What is the listed connection configuration?
Solder. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Lead free brass. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
1/2, 3/4. Choose the required option before ordering.
