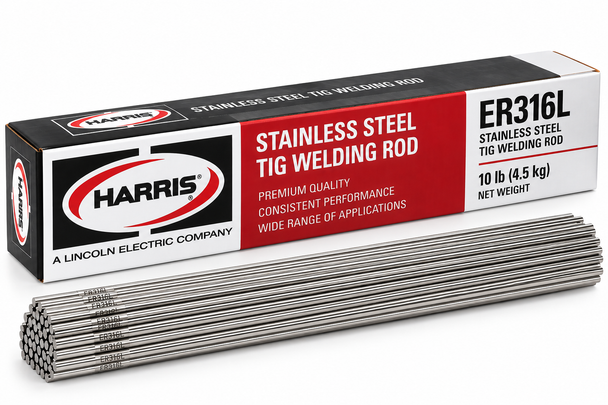

Harris ER316L Stainless Steel TIG Welding Rod
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Harris ER316L Stainless Steel TIG Welding Rod
Harris ER316L stainless steel TIG welding rod is designed for GTAW / TIG welding of Type 316 stainless steel, molybdenum-bearing alloys and similar low-carbon stainless steels. The ER316L composition is well suited for corrosion-resistant fabrication, process industries, power generation, maintenance and repair applications.
Select the required rod diameter and package size from the product options above. The selected variation determines the Harris item number, package weight, selling price and cost.
Product Highlights
- ER316L stainless steel TIG welding rod
- Designed for GTAW / TIG welding
- Recommended for Type 316 and similar stainless alloys
- Low-carbon stainless filler metal
- Suitable for molybdenum-bearing stainless steels
- Available in multiple rod diameters from .030" through 3/16"
- Available in 5 lb, 10 lb and 12 lb package configurations
- 88,000 psi tensile strength in the as-welded condition
- 59,000 psi yield strength in the as-welded condition
- 40% elongation and 60% reduction of area
- Suitable for all welding positions
- Conforms to ANSI/AWS A5.9 and ASME SFA 5.9 Class ER316L
Technical Specifications
| AWS Classification | ER316L |
|---|---|
| Product Type | 316L Stainless Steel TIG Welding Rod |
| Welding Process | GTAW / TIG Welding |
| Available Diameters | .030", .035", .045", 1/16", 3/32", 1/8", 5/32" and 3/16" |
| Available Packages | 5 lb, 10 lb and 12 lb Boxes |
| Welding Positions | All Positions |
| Classification Standard | ANSI/AWS A5.9 / ASME SFA 5.9 Class ER316L |
| Manufacturer | The Harris Products Group |
As-Welded Mechanical Properties
| Tensile Strength | 88,000 psi |
|---|---|
| Yield Strength | 59,000 psi |
| Elongation | 40% |
| Reduction of Area | 60% |
| Rockwell B Hardness | 89 HRB |
| Brinell Hardness | 180 HB |
| Charpy V-Notch Impact | 45 ft-lb at Room Temperature |
Available Diameters & Packaging
| Rod Diameter | Package | Harris Item Number |
|---|---|---|
| .030" | 10 lb Box | 316LTE0 |
| .035" | 10 lb Box | 316LTF0 |
| .045" | 10 lb Box | 316LTH0 |
| 1/16" | 5 lb Box | 316LT305 |
| 1/16" | 10 lb Box | 316LT30 |
| 1/16" | 12 lb Box POP | 316LT303POP |
| 3/32" | 5 lb Box | 316LT505 |
| 3/32" | 10 lb Box | 316LT50 |
| 3/32" | 12 lb Box POP | 316LT503POP |
| 1/8" | 5 lb Box | 316LT605 |
| 1/8" | 10 lb Box | 316LT60 |
| 1/8" | 12 lb Box POP | 316LT603POP |
| 5/32" | 10 lb Box | 316LT70 |
| 3/16" | 10 lb Box | 316LT80 |
Common Applications
316 Stainless Fabrication
- Type 316 stainless steel
- Molybdenum-bearing stainless alloys
- Corrosion-resistant equipment
- Process piping and equipment
- High-temperature stainless applications
Industrial & Maintenance
- Maintenance and repair
- Power generation
- Process industries
- Industrial fabrication
- Field welding applications
Why Choose ER316L TIG Welding Rod?
Low-Carbon 316L Filler Metal
ER316L is designed for Type 316 and similar molybdenum-bearing stainless steels while maintaining restricted carbon content for corrosion-resistant welding applications.
Wide Diameter & Package Selection
Multiple rod diameters and package sizes allow selection based on base-metal thickness, joint design, welding amperage, procedure requirements and usage volume.
Product Selection Considerations
Rod Diameter
Select the rod diameter appropriate for the base-metal thickness, joint design, welding position, amperage range and applicable welding procedure.
Base-Metal Compatibility
Confirm ER316L filler-metal compatibility with the stainless alloy being welded, service environment and applicable code or engineering specification.
Product Resources
View manufacturer-published specifications, application guidance and product data for Harris ER316L stainless steel GTAW / TIG welding rod.
View Harris Product InformationNeed Help Selecting Harris ER316L Stainless Steel TIG Rod?
Our welding and industrial supply specialists can help select the appropriate rod diameter, package size and filler-metal classification for your stainless steel TIG welding application.
Frequently Asked Questions
What is Harris ER316L stainless steel TIG rod?
Harris ER316L is a low-carbon stainless steel GTAW filler rod designed for welding Type 316 and similar molybdenum-bearing stainless alloys.
What rod diameters are available?
This product is available in .030", .035", .045", 1/16", 3/32", 1/8", 5/32" and 3/16" diameters.
What package sizes are available?
Available variations include 5 lb, 10 lb and 12 lb box configurations.
What is the tensile strength of ER316L?
Harris lists an as-welded tensile strength of approximately 88,000 psi.
What is the yield strength of ER316L?
Harris lists an as-welded yield strength of approximately 59,000 psi.
Can Harris ER316L be welded in all positions?
Yes. Harris identifies this alloy for all welding positions.
Can ER316L be used for high-temperature applications?
Harris identifies ER316L as successfully used in high-temperature applications. Confirm suitability with the applicable welding procedure and service requirements.
How do I select the correct ER316L variation?
Select the rod diameter and package size required for your welding procedure and application. The selected variation determines the Harris item number, package weight, selling price and cost.
Important Ordering Notes
- Select the required rod diameter and package size before adding the product to your cart.
- The selected variation determines the Harris item number, package weight, selling price and cost.
- Some 5 lb Harris packages may carry higher manufacturer minimum-order quantities when replenished.
- Confirm ER316L filler-metal compatibility with the materials being joined before welding.
- Verify all welding procedure, specification, code and project requirements before use.
- Always follow applicable welding procedures, manufacturer instructions and workplace safety requirements.
